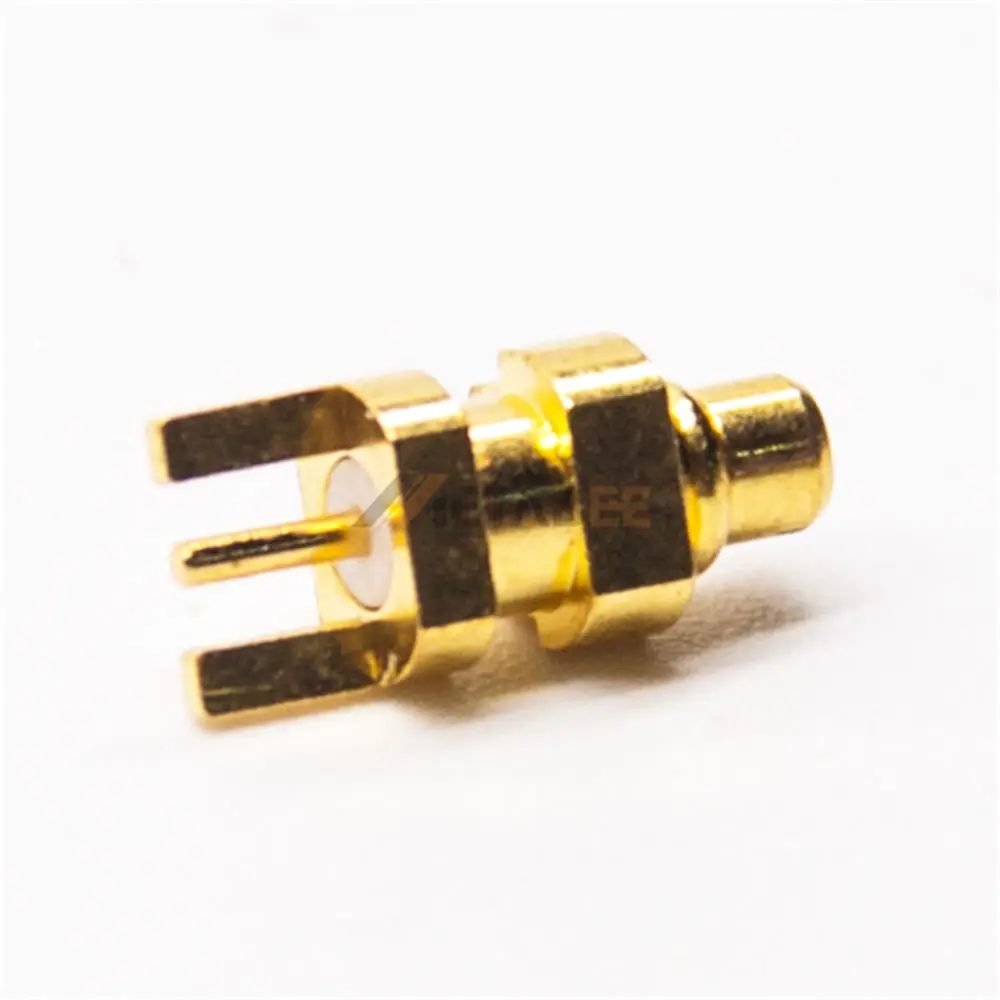

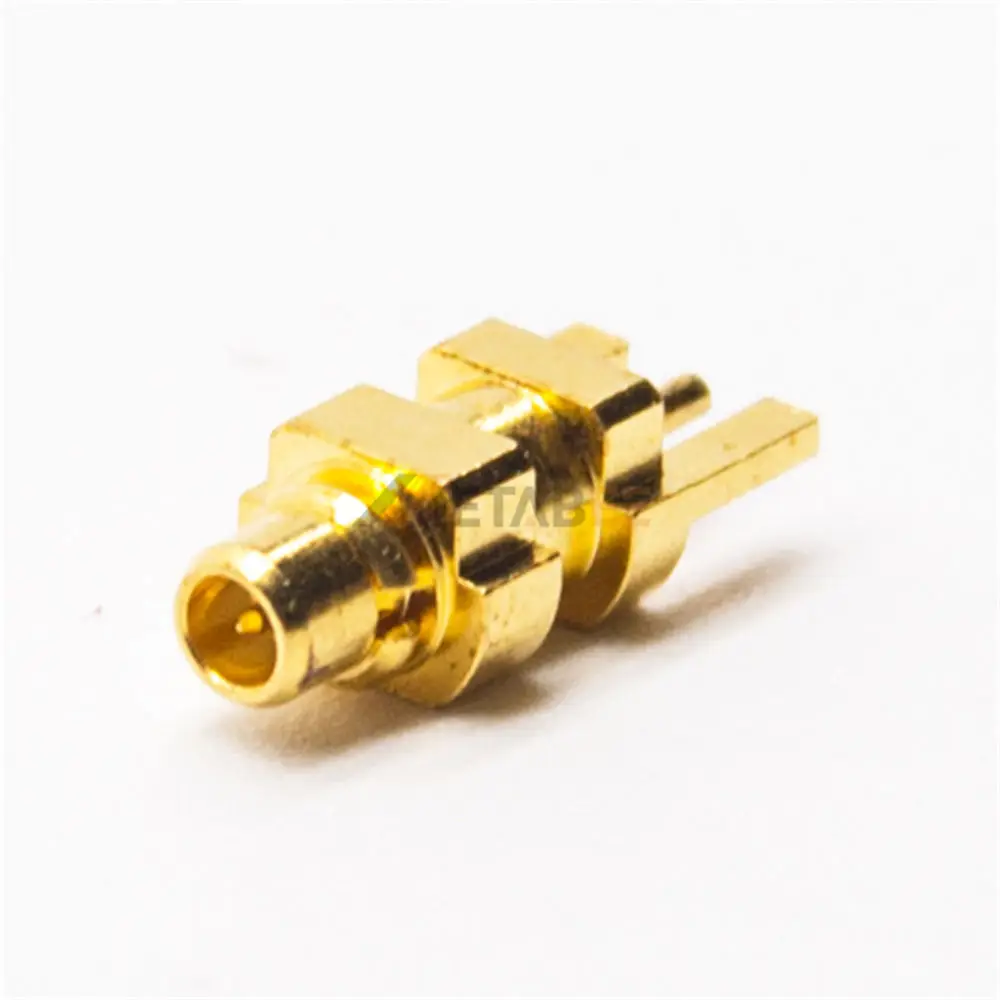

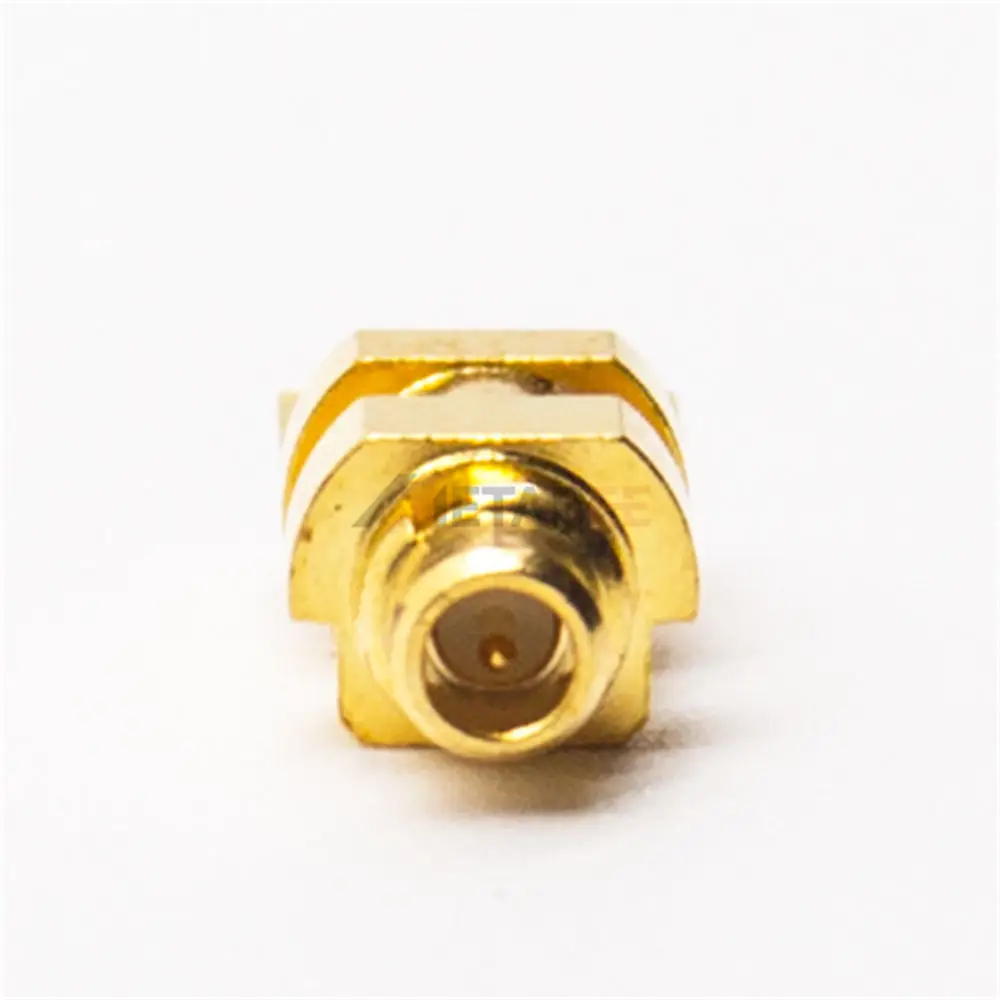

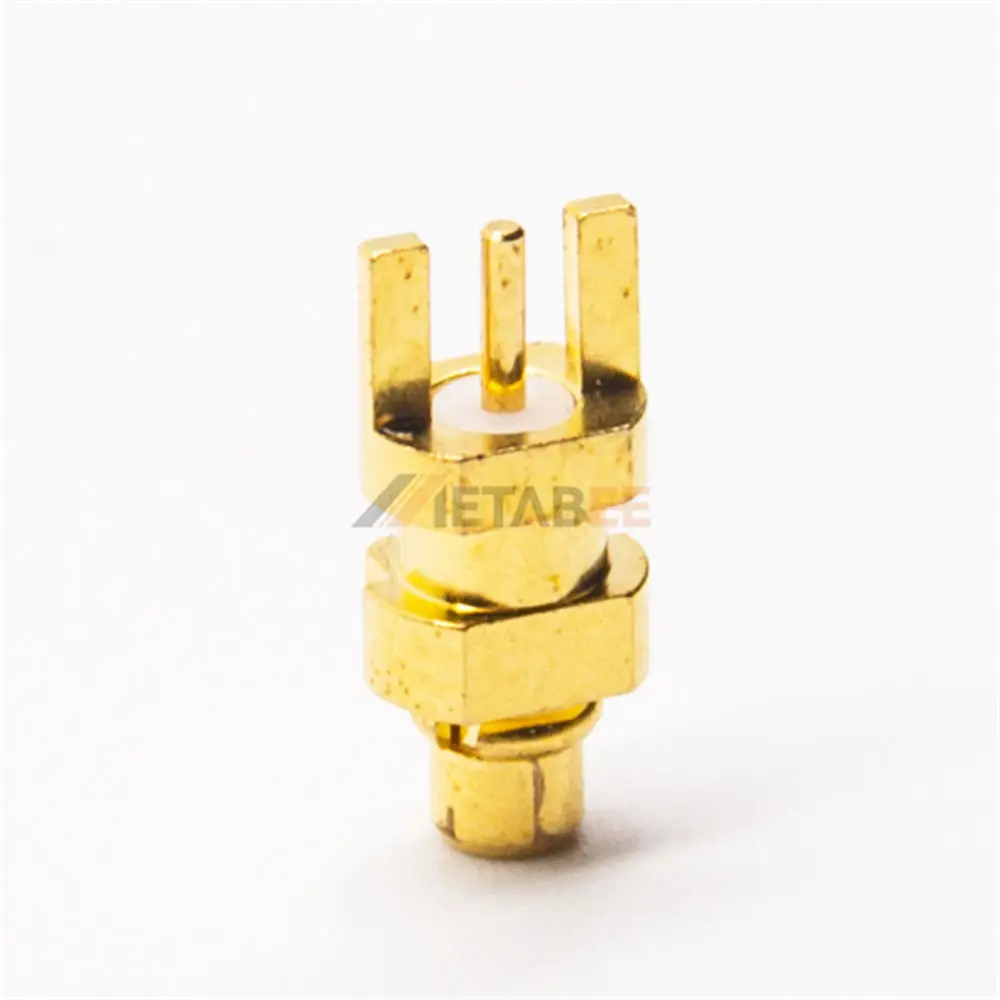

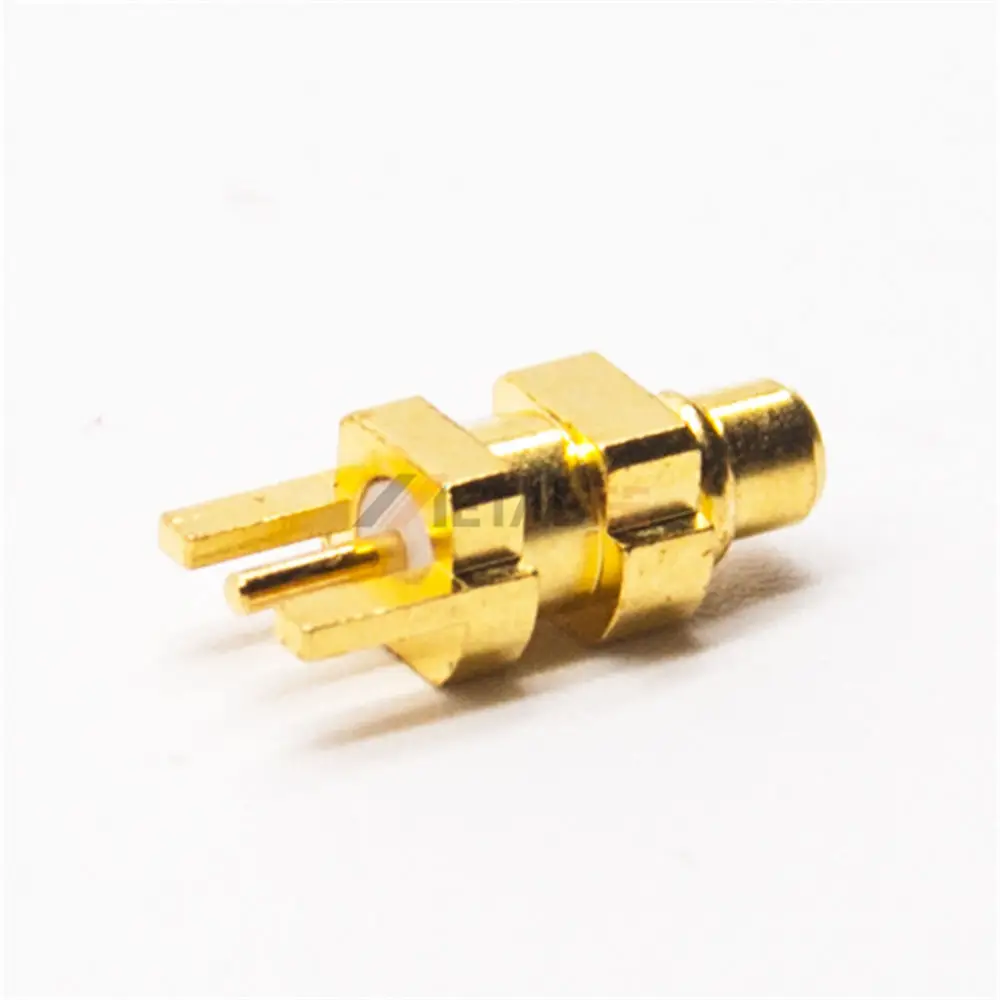

Straight MMCX Plug Connector, Solder Attachment End Launch PCB
Introduction
This MMCX male connector from Metabee is a straight-oriented high-performance RF connector designed for PCB mounting. It features a solder termination for secure attachment and a push-in fastening type for easy installation. It also ensures optimal signal integrity with a maximum frequency of 6 GHz and a 50-ohm impedance. This MMCX connector’s shell is made from high-quality brass with a gold-plated finish. The TEFLON insulator offers exceptional dielectric strength, minimizing signal loss. Besides, the brass contact material with gold plating is for improved connection reliability. Its broad operating temperature range of -65°C to +155°C makes it suitable for demanding environments.
Main Specifications:
General Information:
| Part No.: | YC-631-0003 | |
| Product Series: | MMCX Connectors | |
| Brand: | Metabee | |
| Gender: | Male | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Solder | |
| Mount Method: | PCB Mount | |
| Mount Feature: | SMT | |
| Fastening Type: | Push-in | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Gold Plated | |
| Insulator Material: | TEFLON | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency: | 6 GHz | |
| VSWR: | ≤1.3 Max. | |
| Working Voltage: | 170V rms | |
| Dielectric Withstanding Voltage: | 500 V rms | |
| Center Contact Resistance: | ≤ 5.0 mΩ Max | |
| Outer Contact Resistance: | ≤ 1.0 mΩ Max | |
| Insulation Resistance: | ≥ 1000 MΩ (Megohms MIN.) |
Mechanical Performance:
| Coupling: | Push-in | |
| Contact Retention: | 2.3 in-lbs min. | |
| Durability: | ≥ 500 Times |
Environmental Performance:
| Temperature Range: | -65°C to +155°C | |
| Vibration: | MIL-STD-202 Meth.204 | |
| Corrosion resistance: | MIL-STD-202 Meth. 101 |
Applications of this Straight MMCX Plug Connector:
MMCX connectors are widely used in various applications that require reliable, high-performance RF (radio frequency) connections.
Here are some main applications:
- Audio Equipment;
- Wireless Communication Devices;
- RF Modules and Antennas;
- Wireless Communication Devices;
- GPS Receivers;
- Portable Audio Devices
- Satellite Communication Systems
- Base Stations and Networking Equipment;
- Consumer Electronics;
- Automotive Electronics.
