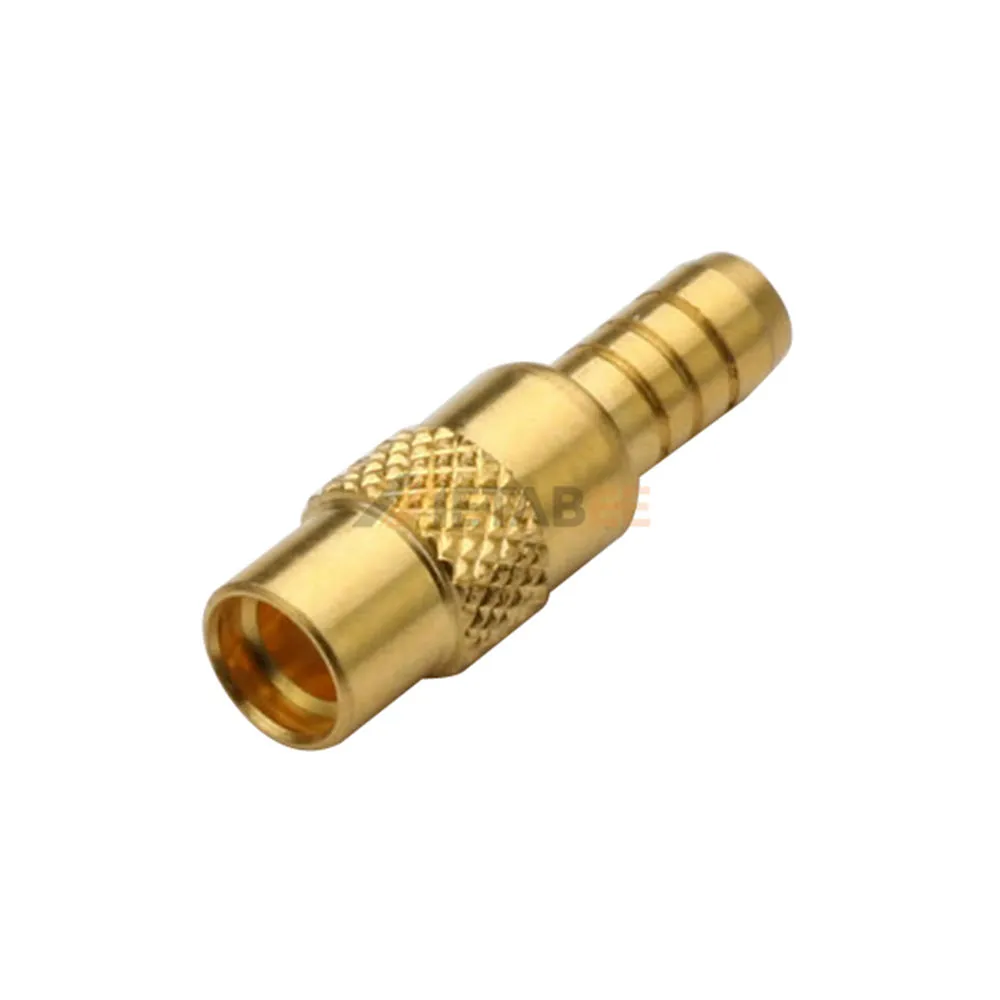

MMCX Female Crimp Cable Connector for RG178

Introduction

This MMCX female connector from Metabee is a straight-oriented high-performance RF connector designed for cable-type mounting. It features a crimp termination for secure attachment and a push-in fastening type for easy installation. It also ensures optimal signal integrity with a maximum frequency of 6 GHz and a 50 Ohm impedance. This MMCX connector’s shell is made from high-quality brass with a gold-plated finish. The TEFLON insulator offers exceptional dielectric strength and minimizes signal loss. Besides, the brass contact material with gold-plated is for improved connection reliability. Its broad operating temperature range of -65°C to +155°C makes it suitable for demanding environments.

Main Specifications:

General Information:

Part No.: YC-631-0106
Product Series: MMCX Connectors
Brand: Metabee
Gender: Female
Orientation: Straight
Number of Contacts: 1 Port
Contact Termination: Crimp
Mount Method: Cable Type
Mount Feature: Not Applicable
Cable Type: RG178
Fastening Type: Push-in
Other Feature: None

Materials and Plating:

Body Material: Brass
Body Plating: Gold Plated
Insulator Material: TEFLON
Contact Material: Brass
Contact Plating: Gold Plated

Electrical Performance:

Impedance: 50 Ohm
Frequency: 6 GHz
VSWR: ≤1.3 Max.
Working Voltage:  170V rms
Dielectric Withstanding Voltage:  500 V rms
Center Contact Resistance: ≤ 5.0 mΩ Max
Outer Contact Resistance: ≤ 1.0 mΩ Max
Insulation Resistance: ≥ 1000 MΩ (Megohms MIN.)

Mechanical Performance:

Coupling: Push-in
Contact Retention: 2.3 in-lbs min.
Durability: ≥ 500 Times

Environmental Performance:

Temperature Range:  -65°C to +155°C
Vibration: MIL-STD-202 Meth.204
Corrosion resistance: MIL-STD-202 Meth. 101

Applications of this MMCX Female Crimp Cable Connector:

MMCX connectors are widely used in various applications that require reliable, high-performance RF (radio frequency) connections.

Here are some main applications:

  • Audio Equipment;
  • Wireless Communication Devices;
  • RF Modules and Antennas;
  • Wireless Communication Devices;
  • GPS Receivers;
  • Portable Audio Devices
  • Satellite Communication Systems
  • Base Stations and Networking Equipment;
  • Consumer Electronics;
  • Automotive Electronics.

Download the RF Connectors PDF Catalog:

Metabee's RF Coaxial Connectors Catalog (PDF, 3.7 MB)

Learn more about our RF Coaxial connectors.

Factory pricing and exceptional product quality. Get a free quote now!

MMCX Connnectors
Metabee is a professional electronic component manufacturer from China. We can provide all kinds of RF connectors.
Product No.

YC-631-0106

Product Series

MMCX Connectors

Product Name

MMCX Female Crimp Cable Connector for RG178

Brand

Metabee

Connector Gender

Female

Orientation

Straight

Number of Contacts

1 Port

Contact Termination

Crimp

Mount Method

Cable Type

Mount Feature

Not Applicable

Impedance

50 Ohm

Frequency(Max)

6 GHz

Shell Material

Brass

Shell Plating

Gold Plated

Insulator Material

TEFLON

Contact Material

Brass

Contact Plating

Gold-plated

VSWR

≤1.3 Max

Working Voltage

170 V rms

Dielectric Withstanding Voltage

500 V rms

Center Contact Resistance

≦ 5.0 mΩ Max

Outer Contact Resistance

≤ 1.0 mΩ Max

Insulation Resistance

≧ 1000 mΩ

Coupling Method

Push-in

Cable Type

RG178

Operating Temperature

-65°C to +155°C

Other Features

None
