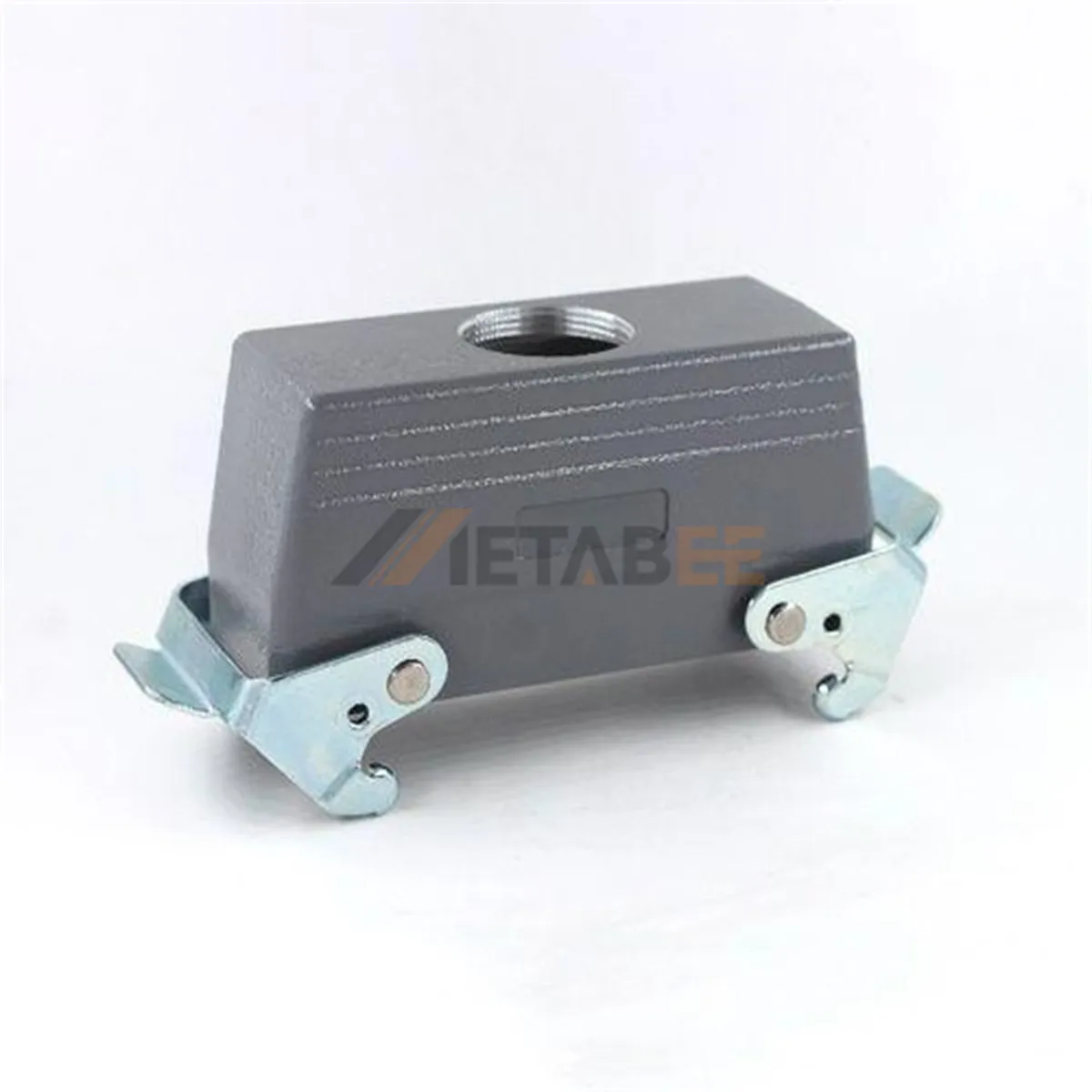

H24B Series Heavy Duty Connector Hood with 2 Levers, Top Entry, Size 24B
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
Optimized for in-line applications, the top entry is perfect for straight cable paths, maintaining system organization. Two locking levers ensure the connection remains secure, which is crucial for modular and extendable wiring systems. It forms a rugged enclosure to protect wire terminations from industrial hazards.
Main Specifications:
General Information:
| Product No.: | H24B-TGB | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H24B Series | |
| Housing/Hood Size: | 24B | |
| Cable Entry Angle: | Side Entry | |
| Thread Size: | PG21, PG29, M25, M32 | |
| Locking Components: | 2 Locking Levers | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
