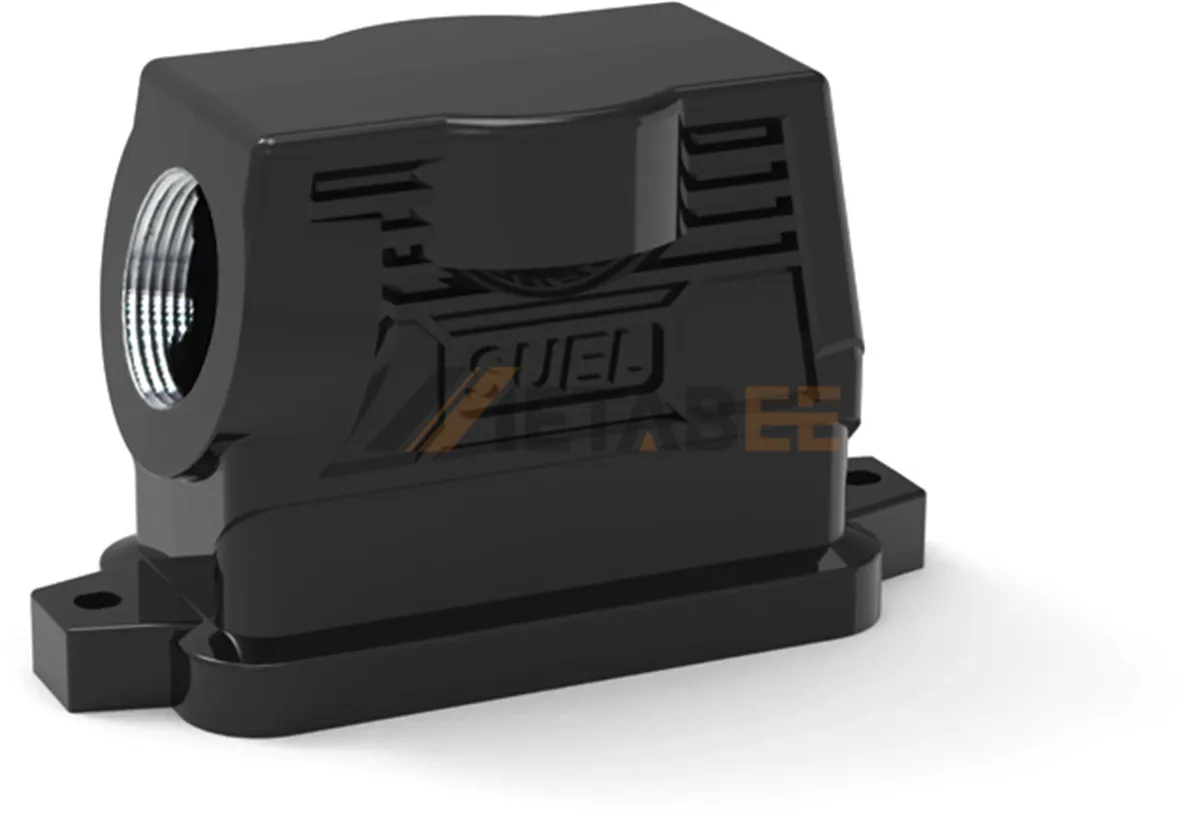

H16B Series Heavy Duty Connector Hood, Side Entry, Size 16B, IP68
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
For maximum environmental defense, this H16B hood offers an IP68 rating, ensuring complete protection against dust and water ingress. Its side entry design is ideal for routing cables in wet or washdown areas. It creates an impermeable seal, safeguarding the connection’s integrity in the most demanding conditions.
Main Specifications:
General Information:
| Product No.: | HP16B-TS | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H16B Series | |
| Housing/Hood Size: | 16B | |
| Cable Entry Angle: | Side Entry | |
| Thread Size: | PG21, M25, M32 | |
| Locking Components: | N/A | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP68 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
