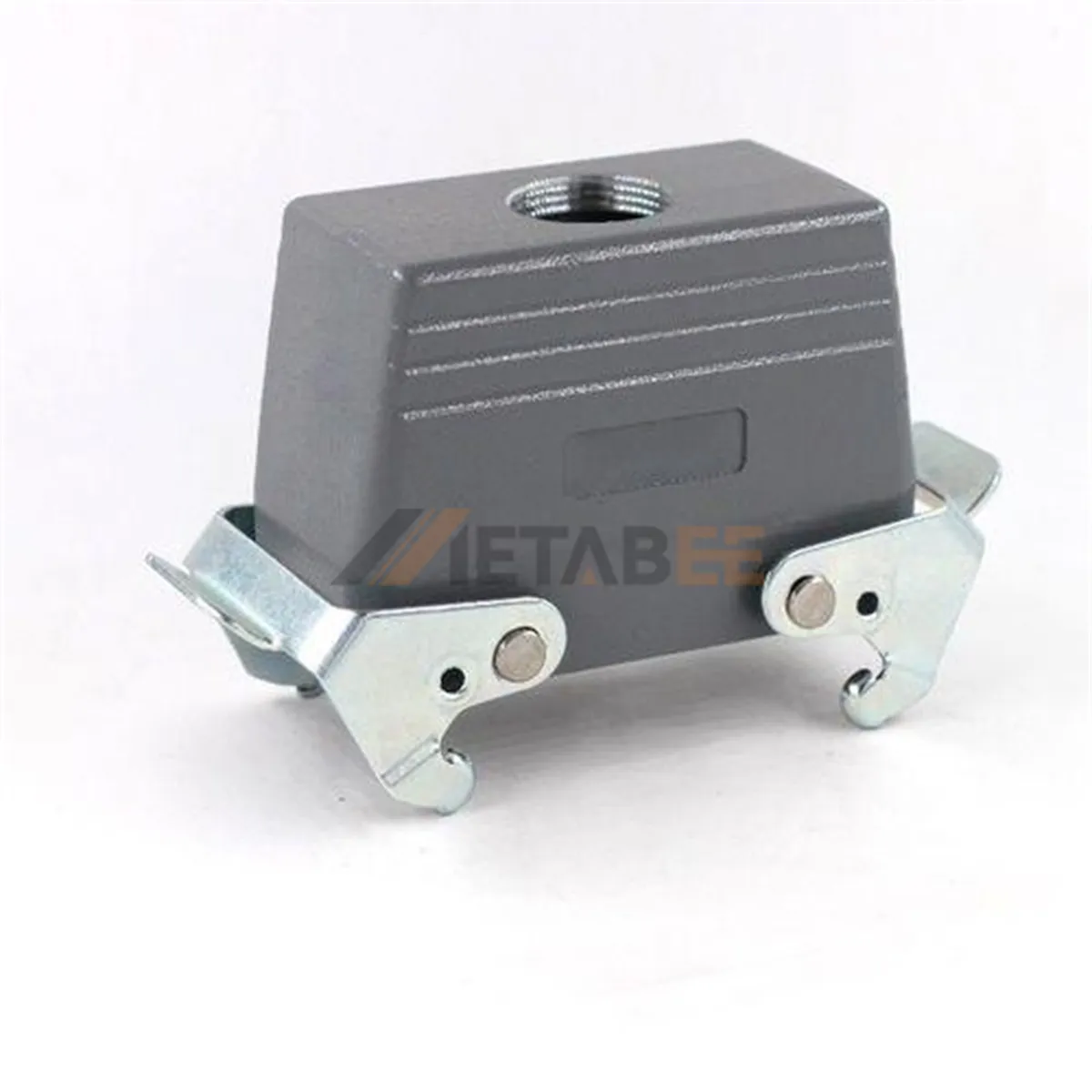

H16B Series Heavy Duty Connector Hood, High Construction, Top Entry, Size 16B, 2 Levers
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
The high construction of this H16B hood offers extra internal volume, engineered to accommodate larger cables. Secured by two levers, it provides a strong, vibration-resistant closure with the housing. A top entry port allows for convenient cable management. The die-cast body ensures high mechanical protection.
Main Specifications:
General Information:
| Product No.: | H16B-TGBH | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H16B Series | |
| Housing/Hood Size: | 16B | |
| Cable Entry Angle: | Top Entry | |
| Thread Size: | PG21, PG29, M25, M32, M40 | |
| Locking Components: | 2 Locking Levers | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
