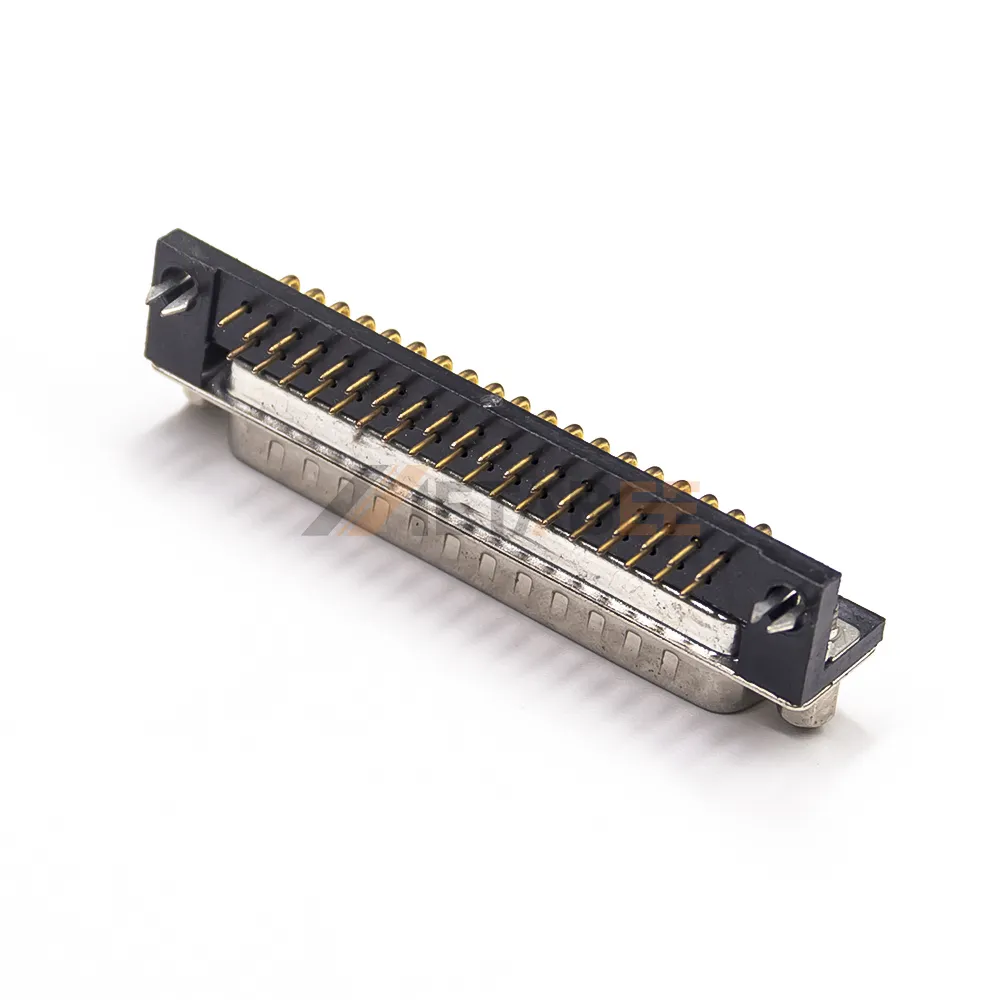

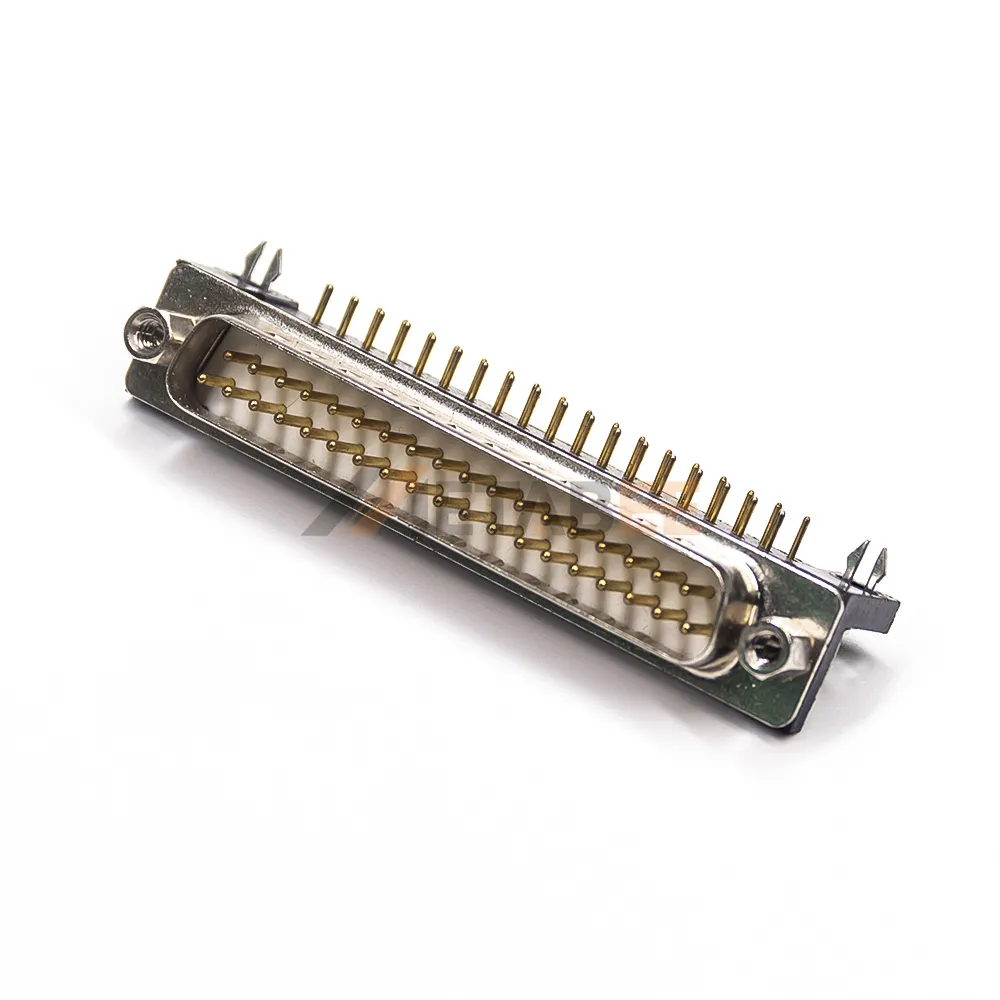

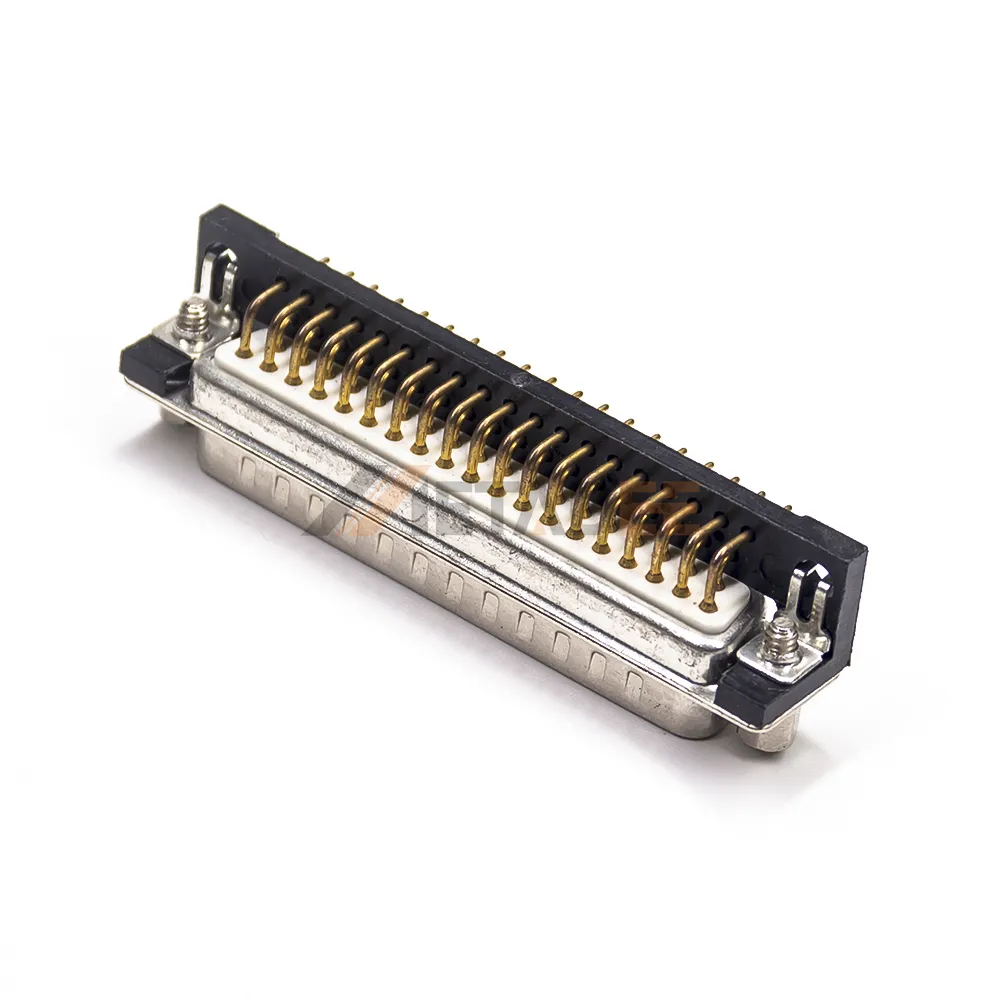

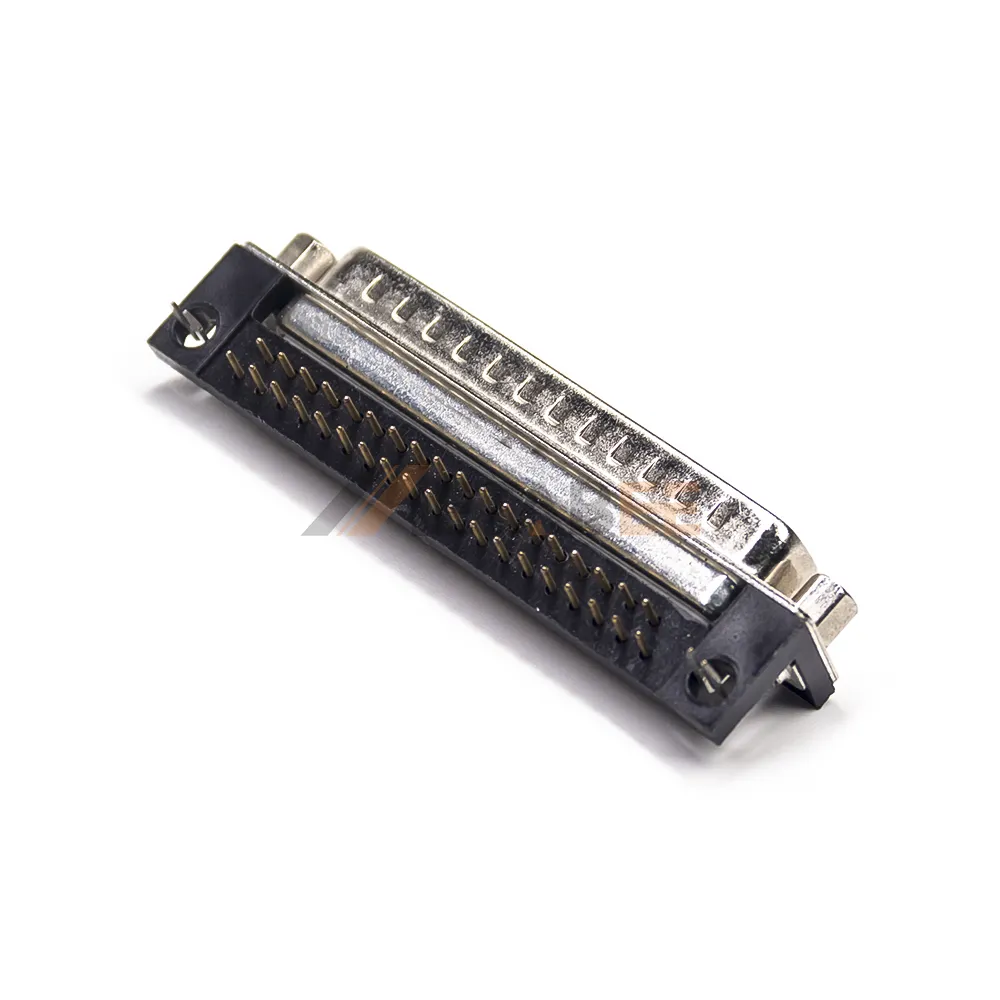

DB37 Right Angle Male Connector for PCB Mount, Through Hole, Machined Contacts, 2.77mm Pitch

DB37 Right Angle Male Connector for PCB Mount, Through Hole, Machined Contacts, 2.77mm Pitch

Introduction:

This DB37 right-angle connector is engineered for secure PCB mounting. It uses the through-hole mounting method, creating a strong and reliable solder joint for excellent mechanical stability. Its right angle profile is ideal for space-constrained layouts. The connector mounts using through-hole technology; its solder pins are inserted into the PCB and soldered to form a robust, permanent mechanical and electrical bond. Gold-plated contacts ensure superior signal integrity, making it a high-reliability choice for industrial hardware and embedded systems.

This DB37 right-angle connector has many great features, including:

• Right Angle Orientation: Provides a space-saving, low-profile horizontal connection.
• Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
• Machined Contacts: Provides a precise and durable connection that outlasts stamped pins.
• Gold-Plated Contacts: Ensures superior signal integrity and excellent corrosion resistance.
• Durable Steel Shell: Offers robust physical protection for the connection point.
• Flame Retardant: Features a UL94 V-0 rated insulator for increased operational safety.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of this DB37 right-angle connector:

• Multi-channel Data Acquisition (DAQ) Systems;
• Industrial I/O and Motion Control;
• Medical and Scientific Instrumentation;
• Telecommunications & Networking;
• Legacy SCSI Connections;
