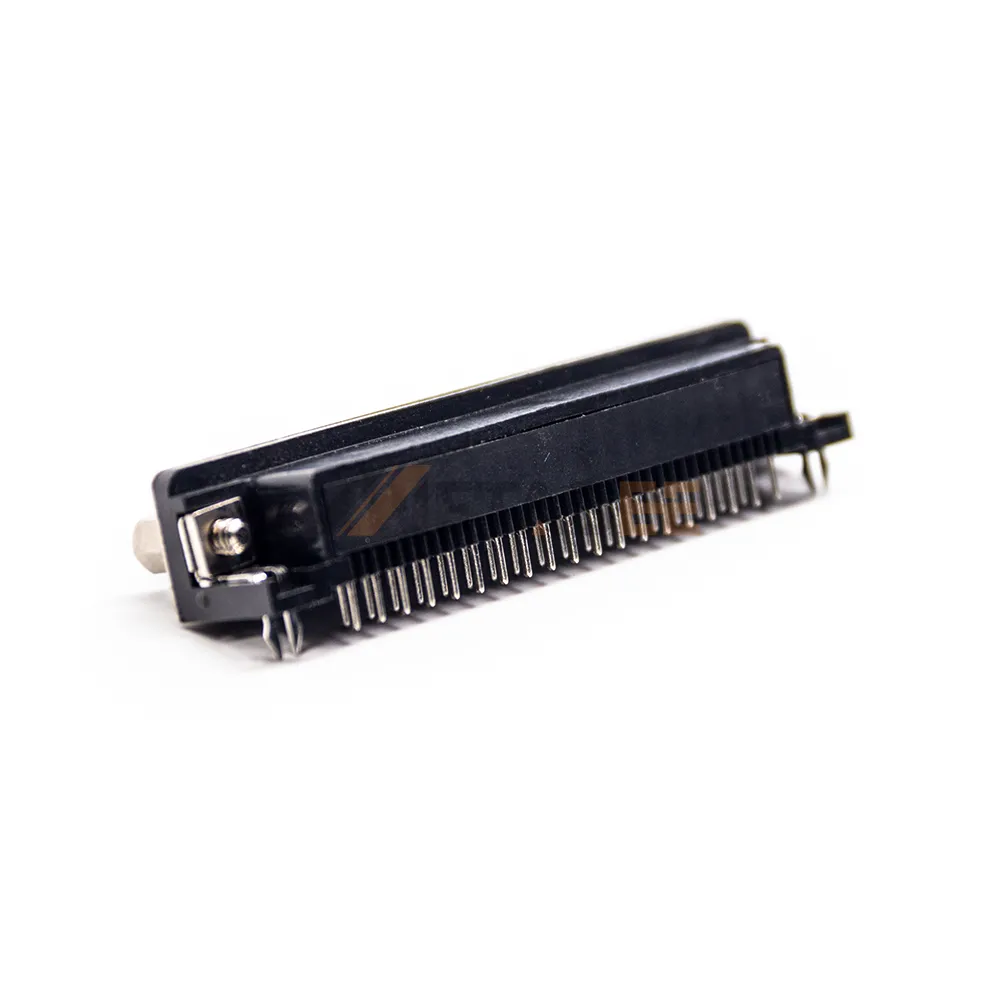

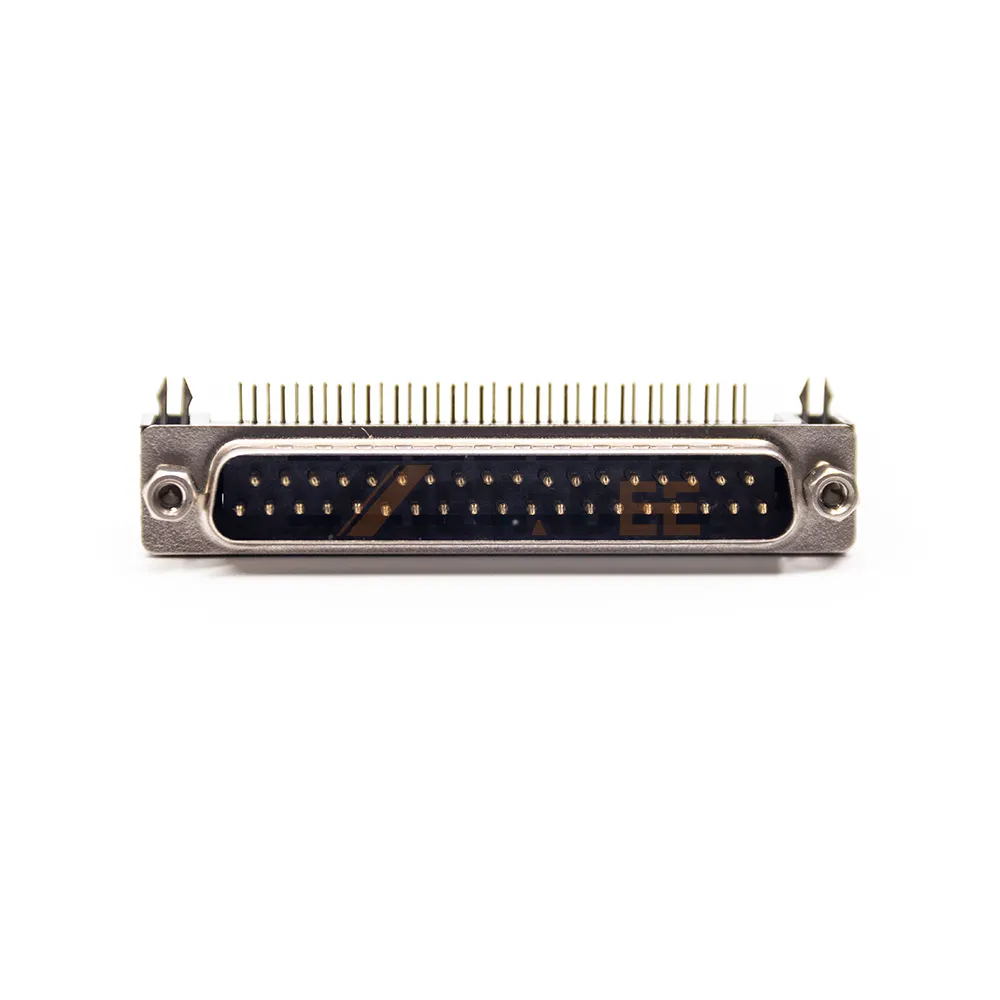

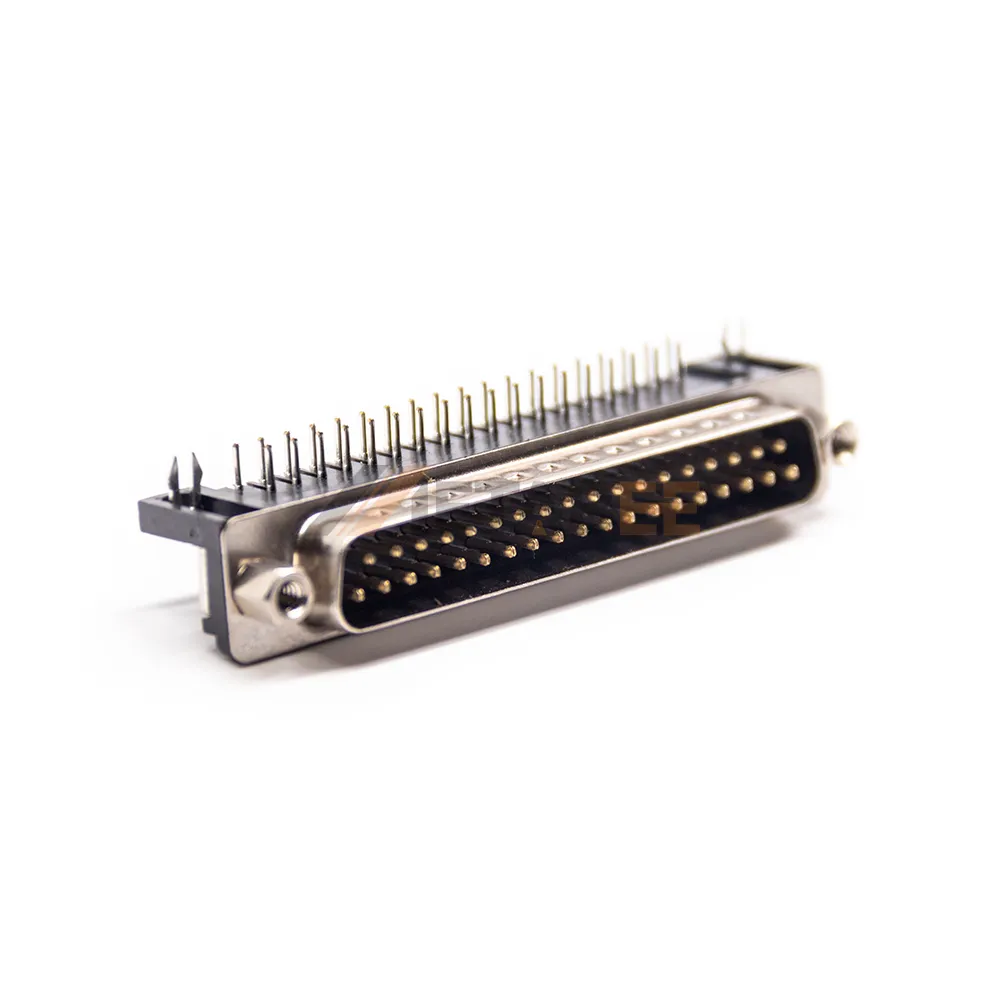

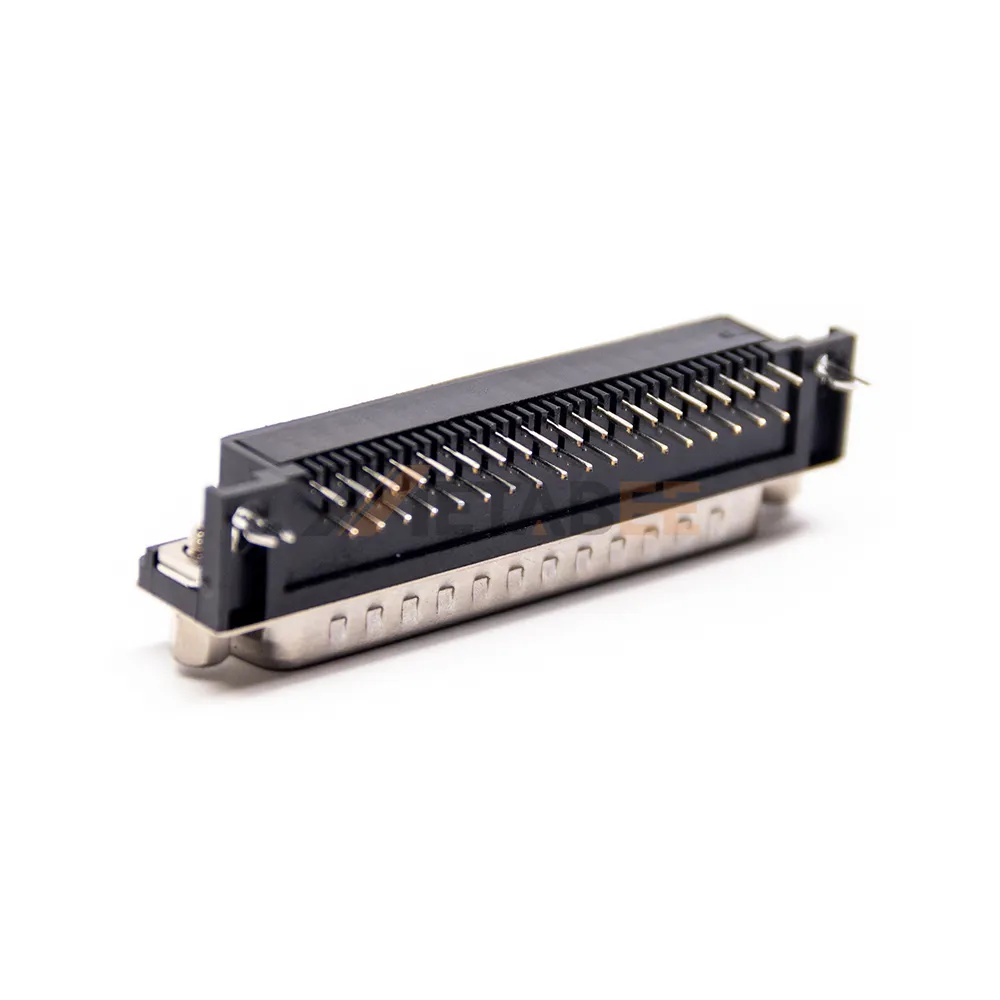

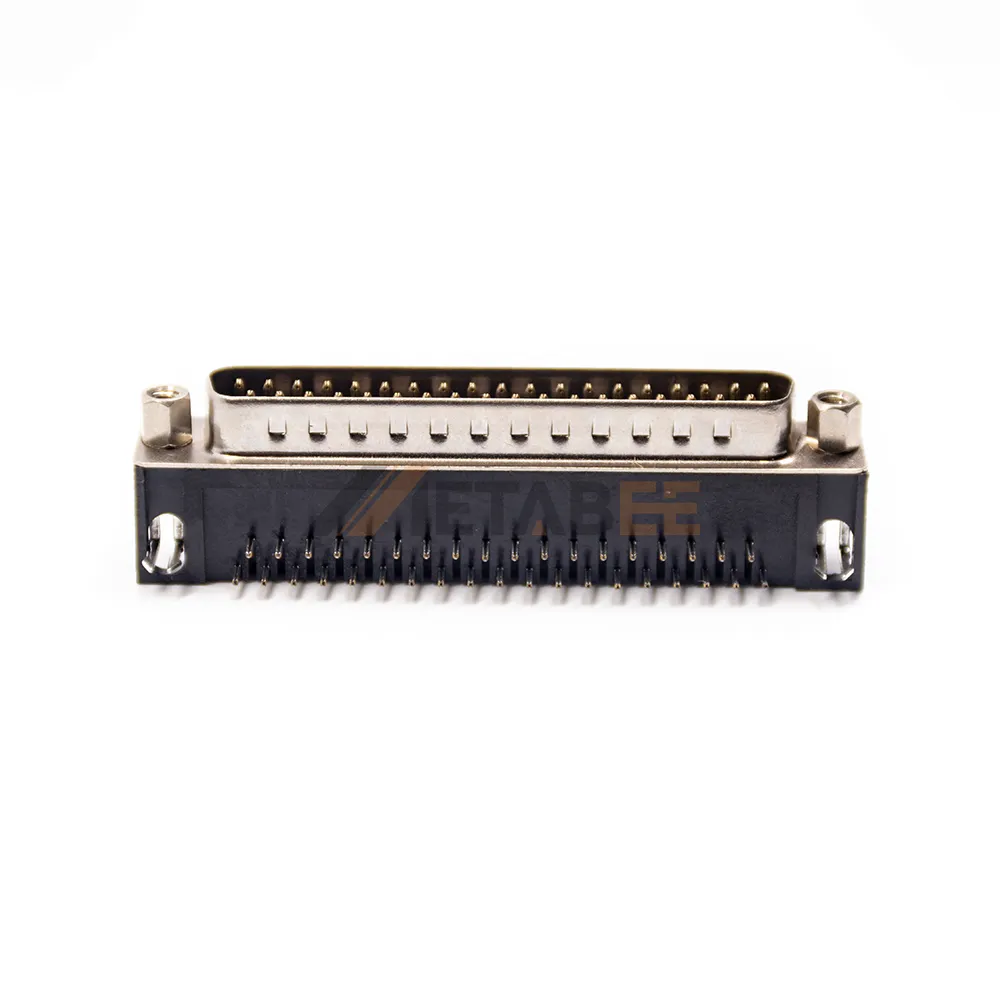

Right Angle DB37 Male Connector for PCB Mount, Through Hole, 2.77mm Pitch
Introduction:
This right angle DB37 connector is engineered for secure PCB mounting. It uses the through-hole mounting method, creating a strong and reliable solder joint for excellent mechanical stability. Its right angle profile is ideal for space-constrained layouts. The connector mounts using through-hole technology; its solder pins are inserted into the PCB and soldered to form a robust, permanent mechanical and electrical bond. Gold-plated contacts ensure superior signal integrity, making it a high-reliability choice for industrial hardware and embedded systems.
This right angle DB37 connector has many great features, including:
- Right Angle Orientation: Provides a space-saving, low-profile horizontal connection.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Gold-Plated Contacts: Ensures superior signal integrity and excellent corrosion resistance.
- Durable Steel Shell: Offers robust physical protection for the connection point.
- Flame Retardant: Features a UL94 V-0 rated insulator for increased operational safety.
Main Specifications:
General Information:
| Product No.: | YC-681-4005 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Right Angle | |
| Connector Gender: | Male | |
| Number of Contacts: | 37 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | C | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 15 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this right angle DB37 connector:
- Multi-channel Data Acquisition (DAQ) Systems;
- Industrial I/O and Motion Control;
- Medical and Scientific Instrumentation;
- Telecommunications & Networking;
- Legacy SCSI Connections;
Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
