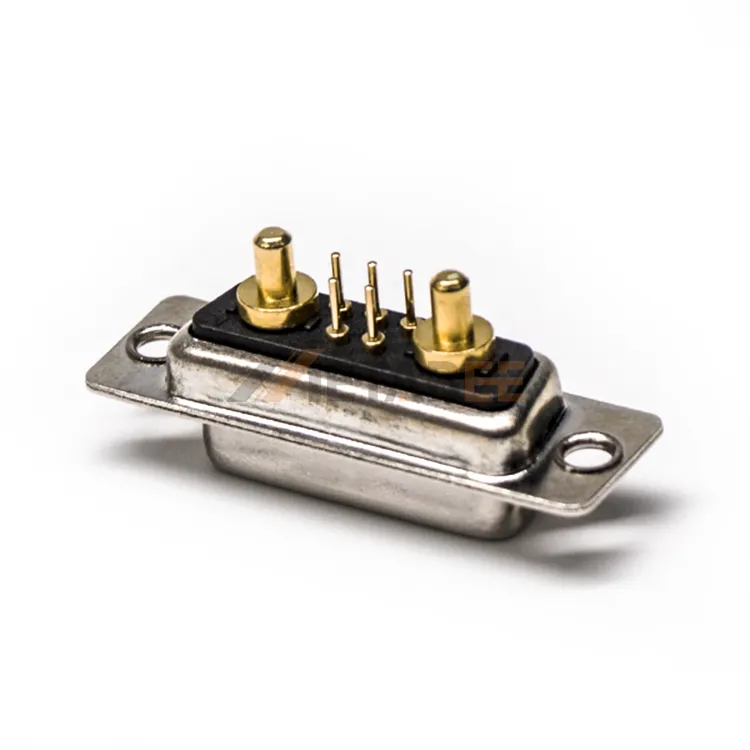

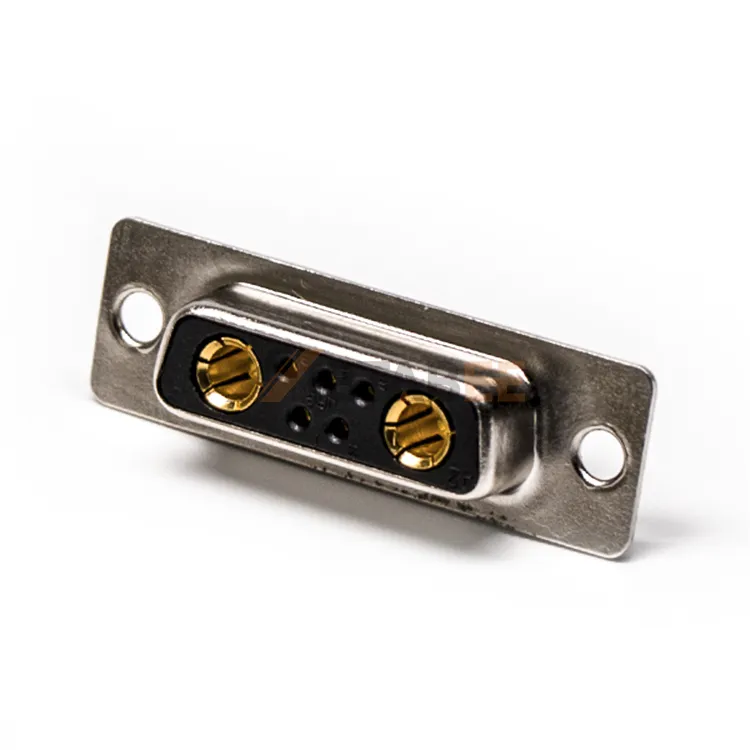

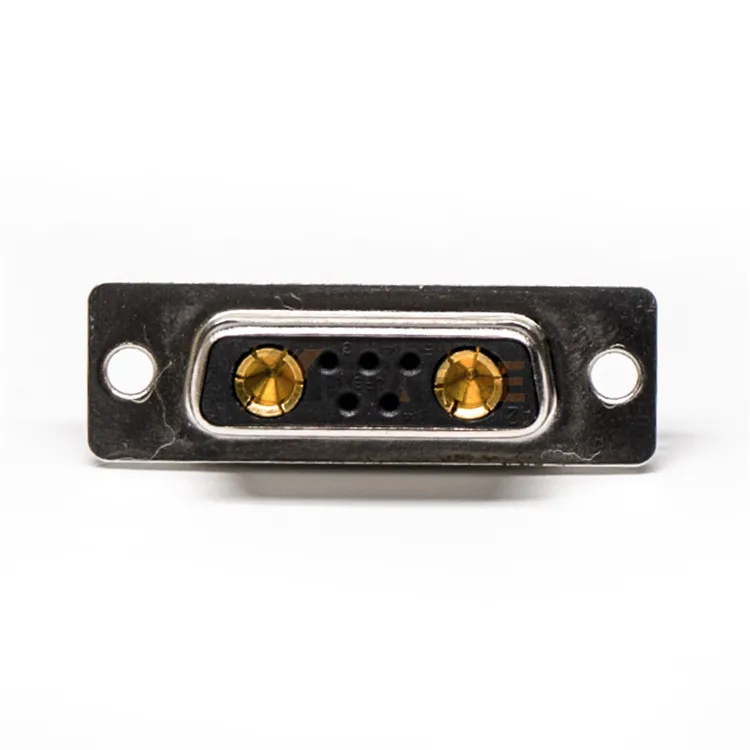

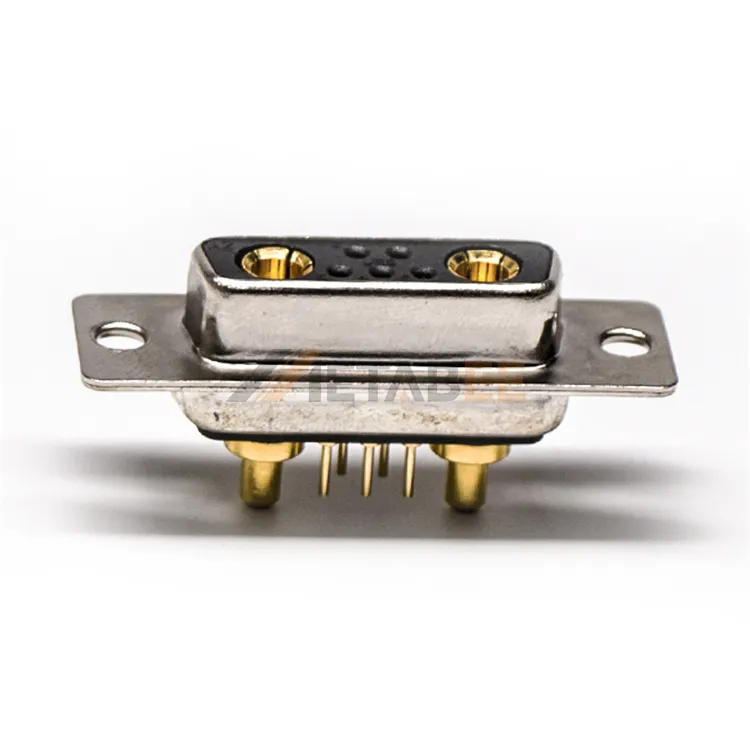

7w2 D-Sub 7 Pin Female Mixed Contact Connector, PCB Mount, Through Hole, Power & Signal
Introduction:
This is a 7W2 hybrid D-Sub connector with an A-size shell. The Combo D-Sub mixes both power contacts and signal contacts in the same connector. 7W2 has two power contacts and seven signal contacts. The connector features a through-hole mounting design and can be directly soldered to the PCB for a stable and secure board-level connection. The connector utilizes high-quality, machined, gold-plated terminals, ensuring excellent conductivity and long-term reliability. Its wide operating temperature range of -55°C to 125°C and UL94 V-0 flame retardancy rating ensure excellent performance in complex industrial environments. Our complete D-sub product line and dedicated accessories enable us to provide flexible and cost-effective connectivity solutions to meet any complex application challenge.
This D-sub 7 pin mixed contact connector has many great features, including:
- High-Current Capability: Provides superior current-carrying capacity for stable and efficient power transmission.
- PCB Mount: Provides a strong mechanical anchor when soldered directly to the circuit board.
- Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-1233 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 7W2 | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 7 Pin | |
| Shell Sizes: | A | |
| Mount Type: | PCB Mount | |
| Mount Feature: | Through Hole | |
| Contact Termination: | Solder | |
| Contact Type: | Machined Contact | |
| Contact Function: | Power and Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
|
High power contacts current rating: |
40A | |
| Rated Voltage: | 250V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of the D-sub 7 pin mixed contact connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
