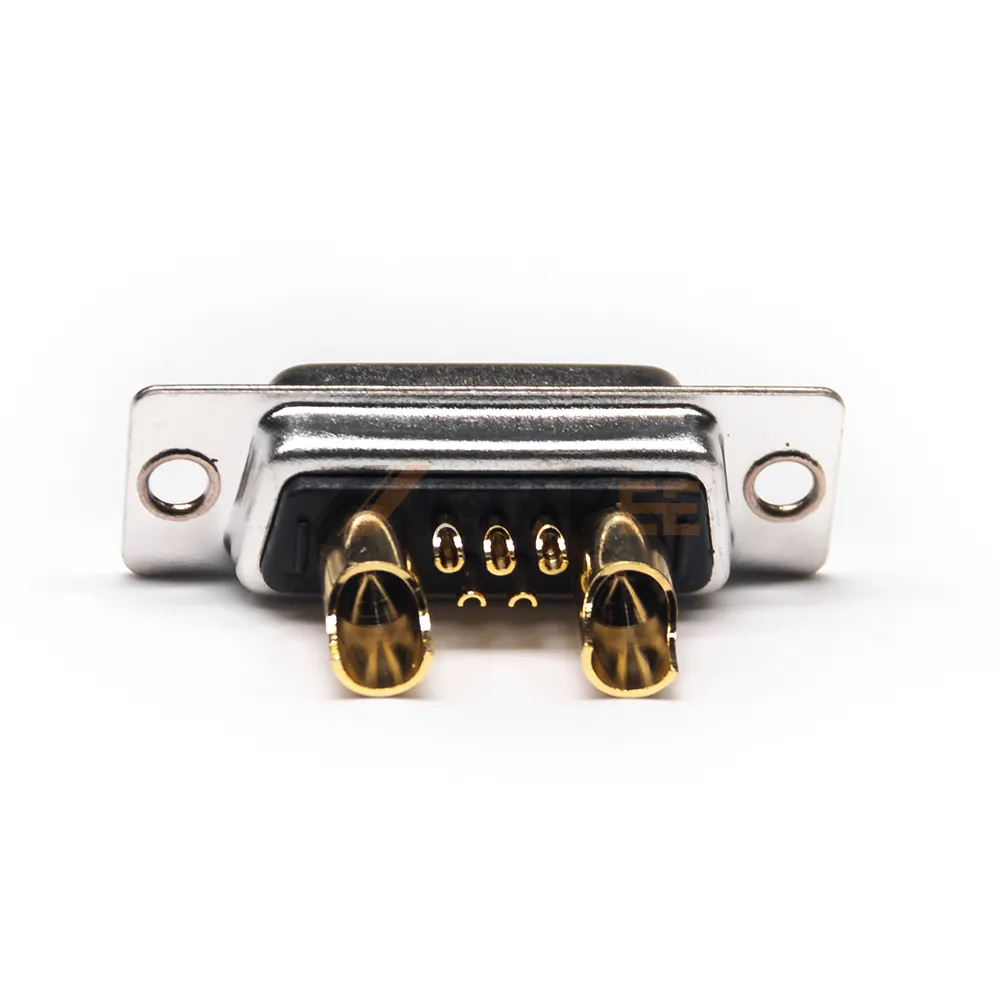

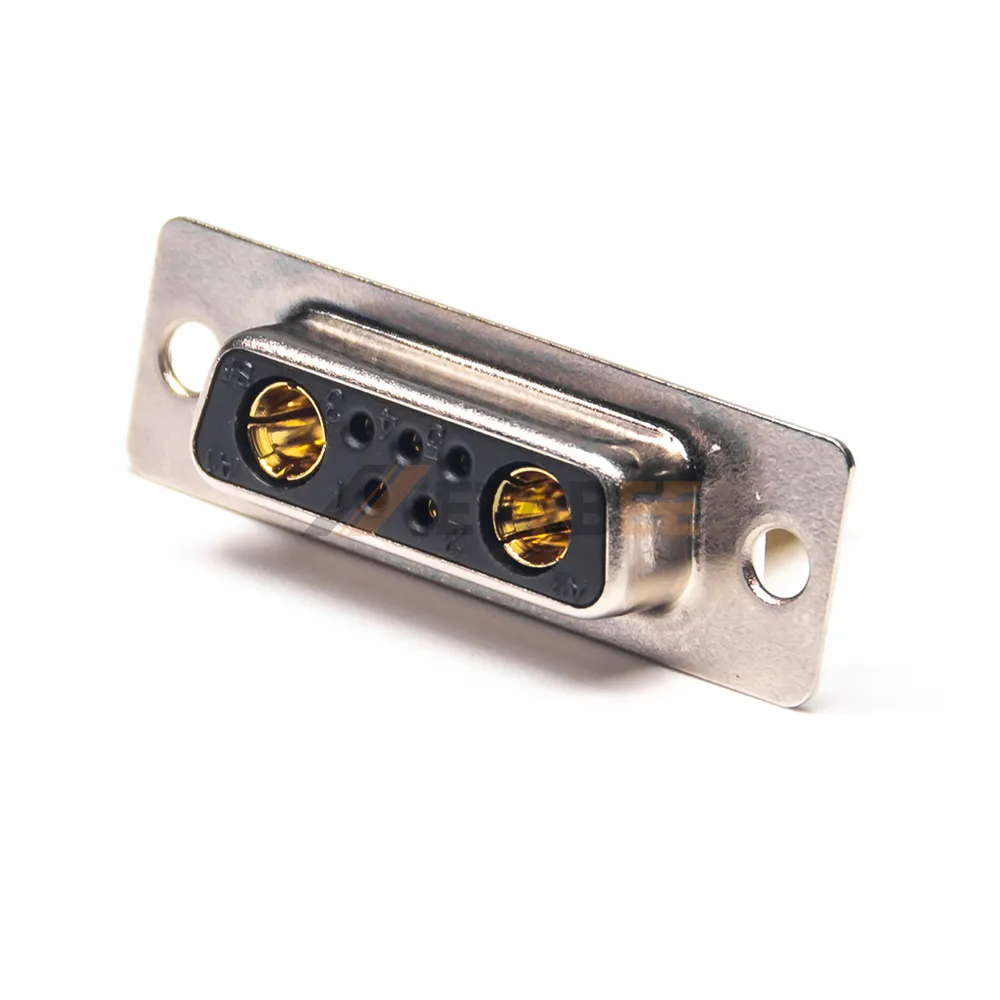

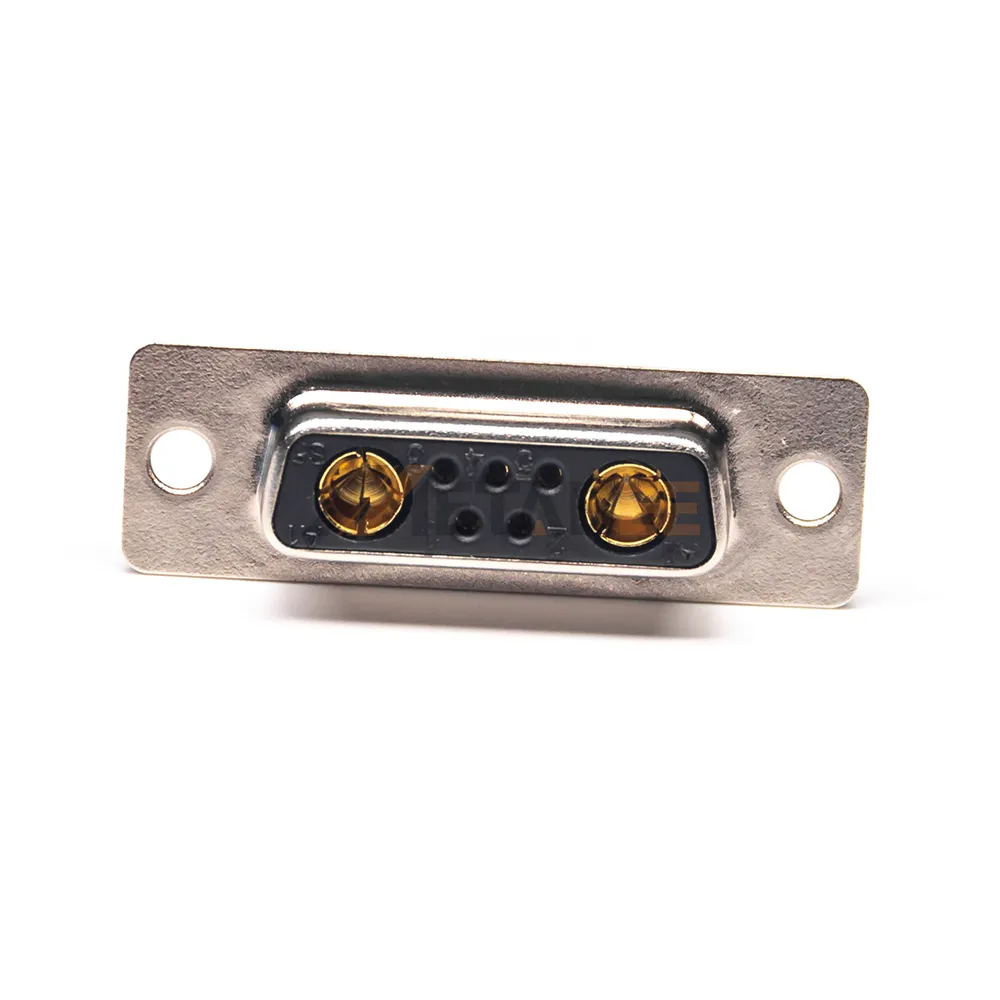

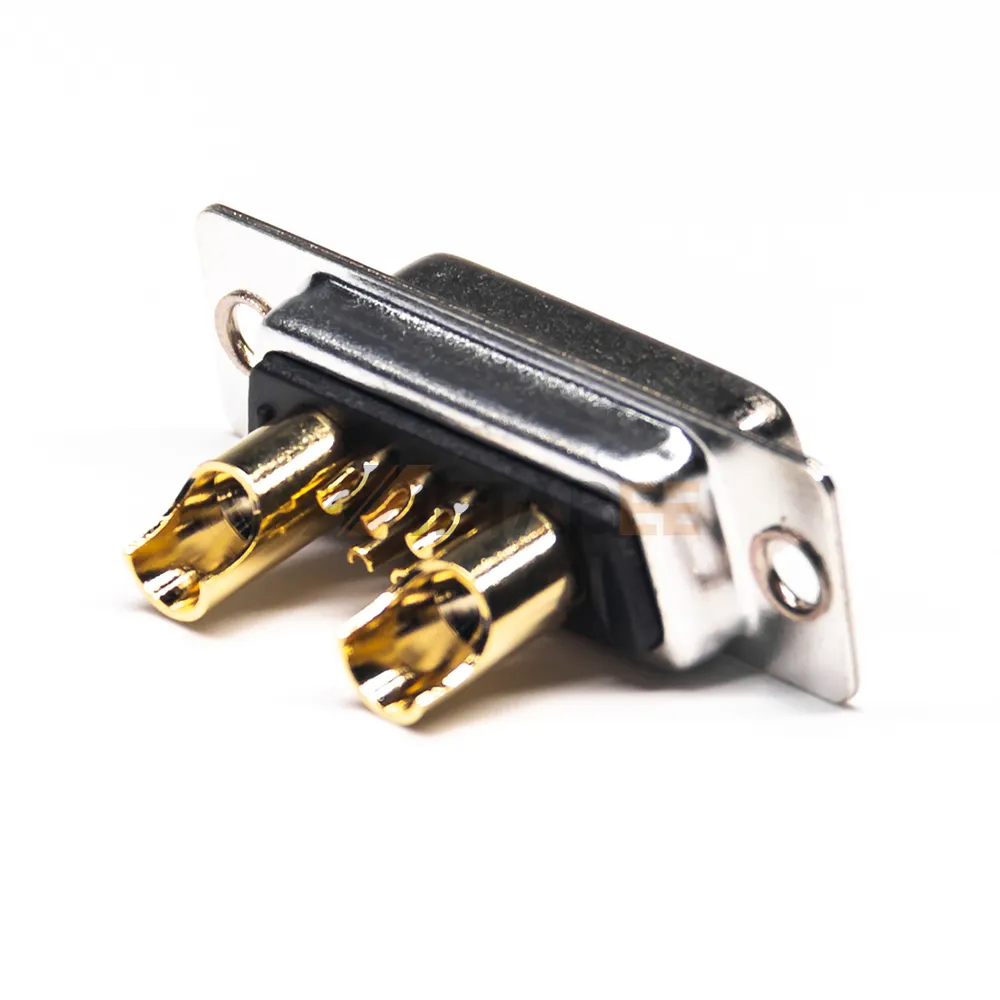

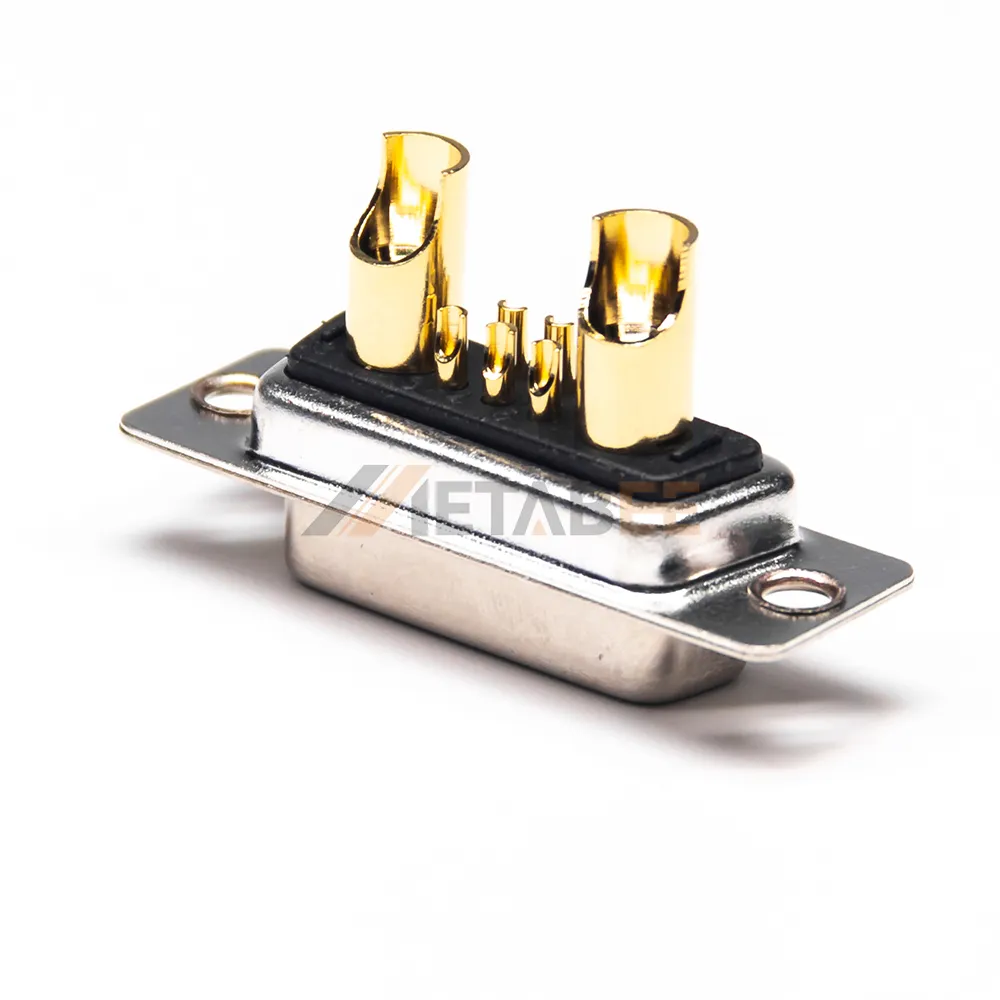

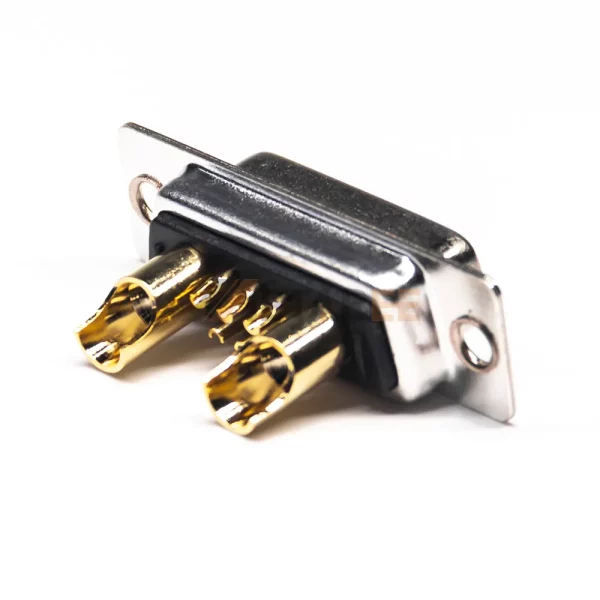

7W2 Combination D-Sub Female Connector, Cable Type, Solder Cup, Power & Signal
Introduction:
This is a 7W2 hybrid D-Sub connector with an A-size shell. The Combo D-Sub mixes both power contacts and signal contacts in the same connector. 7W2 has two power contacts and seven contacts. The power contacts can carry up to 20A, meeting device power requirements, while the signal contacts handle data transmission, achieving integrated power and signal integration. The connector utilizes high-quality, machined, gold-plated terminals, ensuring excellent conductivity and long-term reliability. Its wide operating temperature range of -55°C to 125°C and UL94 V-0 flame retardancy rating ensure excellent performance in complex industrial environments. Our complete D-sub product line and dedicated accessories enable us to provide flexible and cost-effective connectivity solutions to meet any complex application challenge.
This 7W2 combination D-sub female connector has many great features, including:
- High-Current Capability: Provides superior current-carrying capacity for stable and efficient power transmission.
- Solder Cup Termination: Allows for fast, secure, and reliable cable soldering.
- Precision Machined Contacts: Gold-plated brass contacts offer superior conductivity and long-term corrosion resistance.
- Wide Operating Temperature: Reliable performance in extreme conditions, from -55°C to +125°C.
- Metal Shielding Shell: Provides excellent EMI shielding and robust protection against shock and vibration.
Main Specifications:
General Information:
| Product Number: | YC-681-0052 | |
| Connector Series: | Combo D-Sub | |
| Contact Arrangement: | 7W2 | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 7 Pin | |
| Shell Sizes: | A | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Machined Contact | |
| Contact Function: | Power and Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| High power contacts current rating: | 20A | |
| Rated Voltage: | 250V AC |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of the 7W2 combination D-sub female connector:
- Mobile Robotics and AGV;
- Professional A/V and Stage Lighting;
- Medical Equipment Carts;
- Industrial Power Supplies and DC Motor Drives;
- Industrial Lasers and Plasma Cutting Systems;
- High-Power Test and Measurement.
