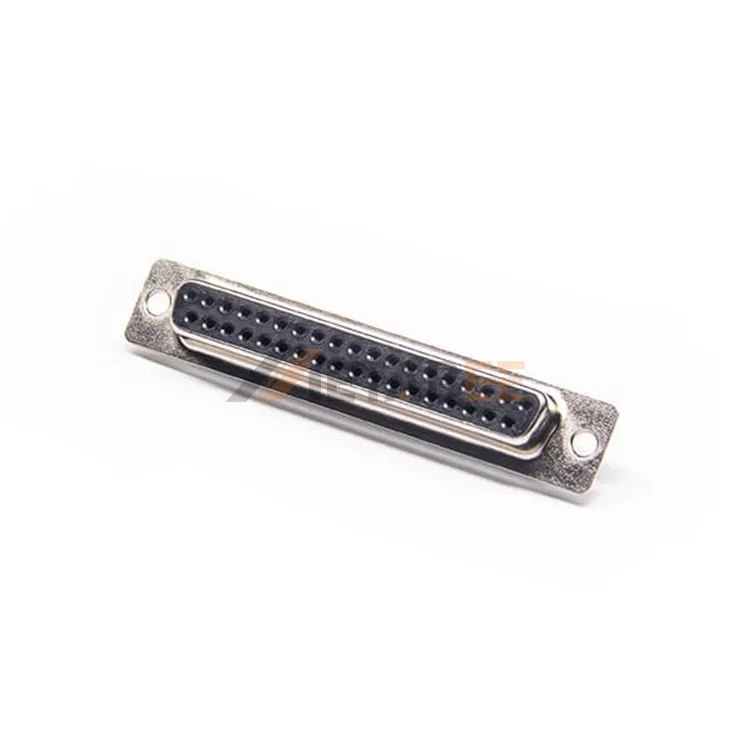

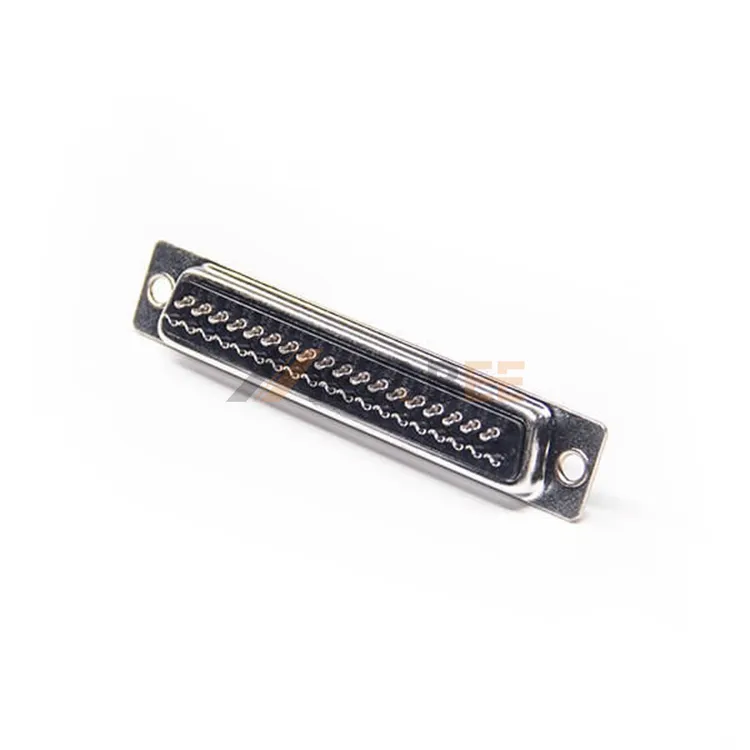

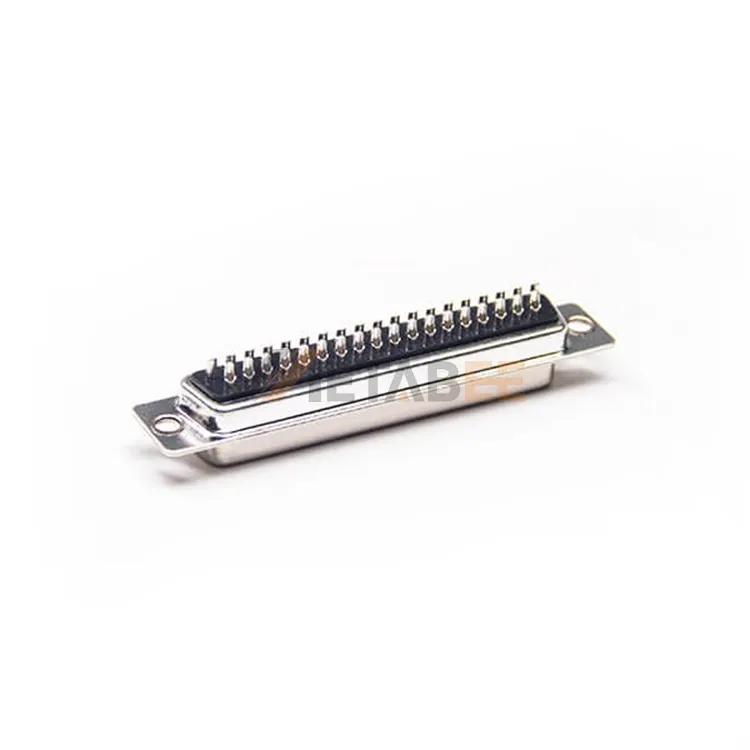

37 Pin Female D-Sub Connector, Cable Mount, Solder Cup, 2.77mm Pitch, Zinc Alloy Shell
Introduction:
This 37 pin female D-sub connector is your solution for managing complex, high-pin-count wiring. It features solder cup terminals, allowing you to create strong and permanent bonds by hand-soldering each wire. It features reliable stamped contacts, which are tin-plated for excellent solderability and dependable performance. A tough steel shell protects the entire assembly. This connector is a powerful and dependable choice for industrial controllers, data acquisition systems, and legacy equipment.
This 37 pin female D-sub connector has many great features, including:
- Cable Mount Design: Mounts directly on your cable, perfect for building custom I/O harnesses.
- Solder Cup Termination: Create permanent, reliable bonds by soldering wires directly to the pins.
- Stamped Contacts: A practical and reliable solution for general-purpose applications.
- Tin-Plated Contacts: A cost-effective plating that ensures excellent solderability and reliable performance.
- Durable Zinc Alloy Shell: A rugged die-cast housing offers superior physical protection and EMI shielding.
Main Specifications:
General Information:
| Product No.: | YC-681-4060 | |
| Connector Series: | Standard D-Sub | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 37 Pin | |
| Number of Rows: | 2 | |
| Pitch: | 2.77mm | |
| Shell Sizes: | C | |
| Mount Type: | Cable Mount | |
| Mount Feature: | Not Applicable | |
| Contact Termination: | Solder Cup | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Zinc Alloy | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | PBT |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 15 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +105℃ | |
| IP Rating: | Not Applicable | |
| Flammability Rating: | UL94 V-0 |
Applications of this 37 pin female D-sub connector:
- Multi-channel Data Acquisition (DAQ) Systems;
- Industrial I/O and Motion Control;
- Medical and Scientific Instrumentation;
- Telecommunications & Networking;
- Legacy SCSI Connections;
