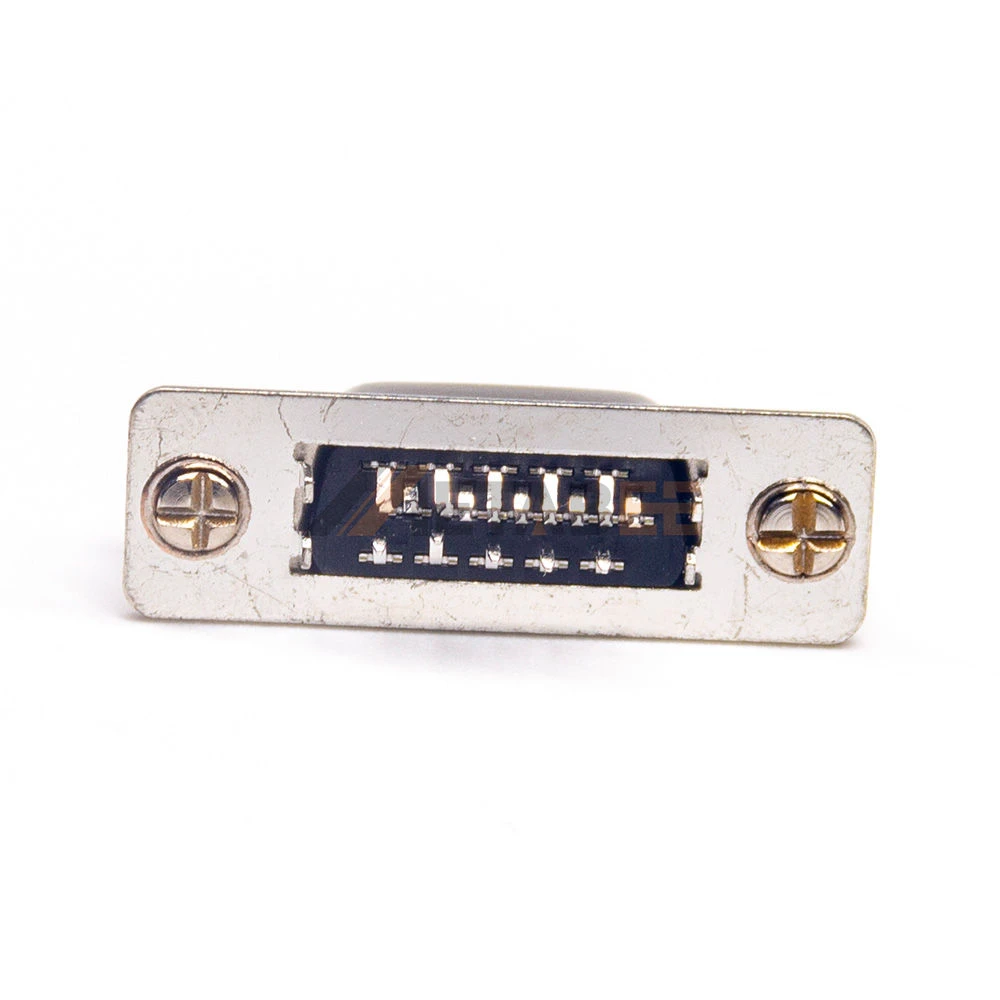

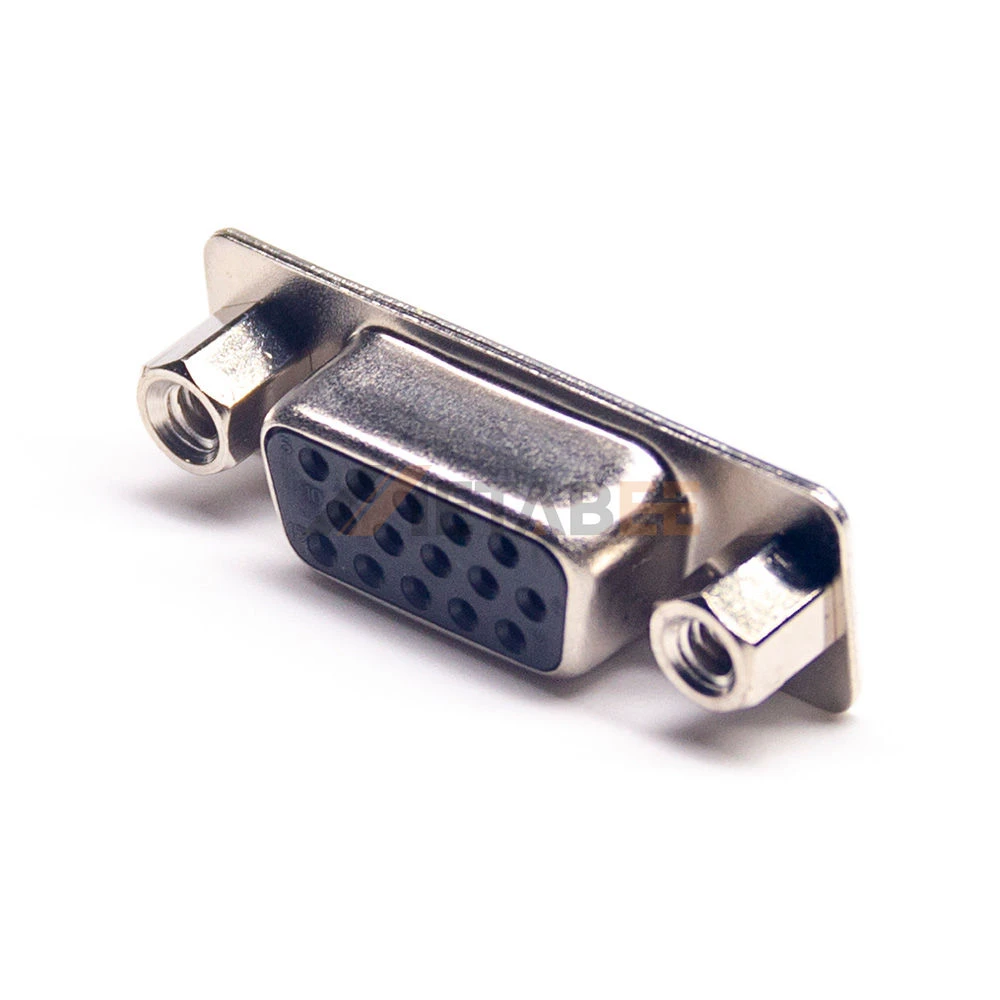

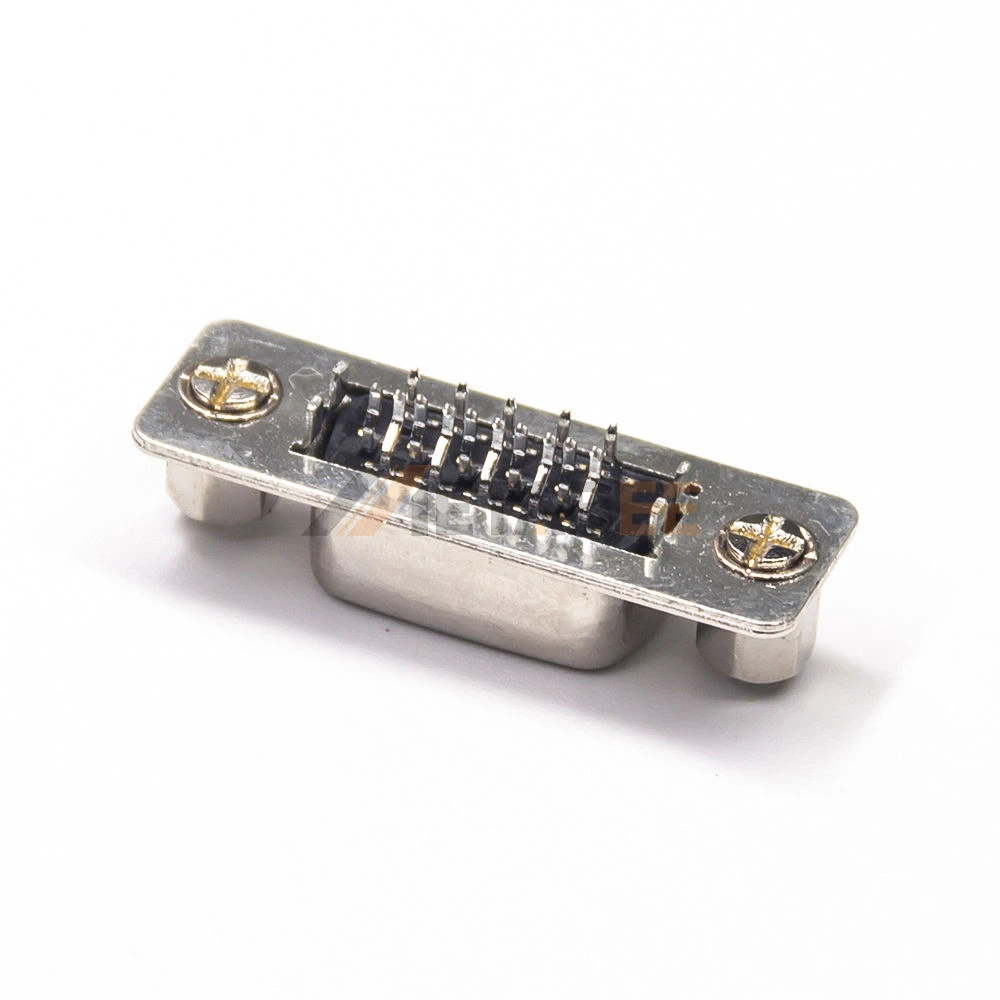

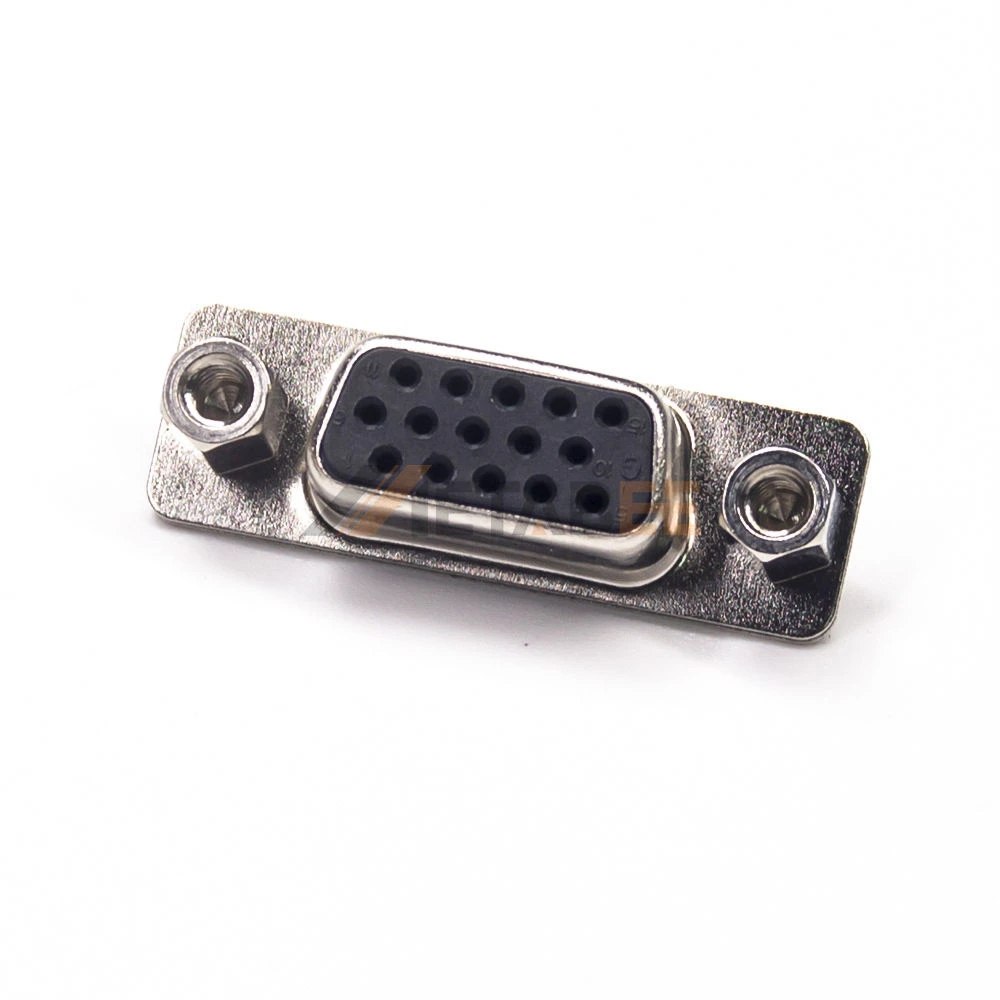

15 Pin D-Sub VGA Female Connector for PCB Mount, Through Hole, 2.29mm Pitch, Front Screw Lock
Introduction:
This high-density D-Sub DB15 female connector delivers maximum connectivity in minimal space. Engineered with a precision 2.29mm pitch. This compact spacing enables high-density signal transmission. Features 15 female signal contacts arranged efficiently in 3 rows. Designed for panel-mount PCB integration via through-hole soldering. The front screw lock ensures vibration-proof mating security. Contacts utilize stamped brass construction. Finished with nickel underplate and tin plating. Its nickel-plated steel shell provides rugged corrosion resistance. Operates in temperatures from -25°C to +125°C. Rated for 250V and 5A current capacity. It provides IP20 basic protection. Ideal for space-constrained VGA and industrial applications demanding reliable high-density interconnects.
Main Features:
- High-Density DB15 Connector: 15 female signal contacts in a minimal footprint.
- 2.29mm Fine Pitch: Enables high-density integration.
- PCB Panel Mount: Secures via through-hole soldering.
- Front Screw Lock: Ensures vibration-proof connection.
- Nickel-Plated Steel Shell: Durable and corrosion-resistant.
- Tin-Plated Brass Contacts: Stamped for precision and reliability.
Main Specifications:
General Information:
| Product Number: | YC-681-4068 | |
| Connector Series: | High-Density D-Sub Connectors | |
| Orientation: | Straight | |
| Connector Gender: | Female | |
| Number of Contacts: | 15 Pin | |
| Number of Rows: | 3 | |
| Pitch: | 2.29mm | |
| Shell Sizes: | E | |
| Mount Type: | PCB Mount – Through Hole | |
| Mount Feature: | Front Screw Lock | |
| Contact Termination: | Solder | |
| Contact Type: | Stamped Contact | |
| Contact Function: | Signal |
Materials and Plating:
| Shell Material: | Steel | |
| Shell Plating: | Nickel Plating | |
| Contact Material: | Brass | |
| Contact Plating: | Tin Plating | |
| Contact Plating Thickness: | 3.00µin（0.076µm） | |
| Insulator Material: | Thermoplastic Polyester |
Electrical Performance:
| Rated Current: | 5A | |
| Rated Voltage: | 250V AC | |
| Contact Resistance: | ≤ 20 mΩ |
Environmental Performance:
| Temperature Range: | -55℃ to +125℃ | |
| IP Rating: | IP20 | |
| Flammability Rating: | UL94 V-0 |
Applications of the 15 Pin D-Sub VGA Female Connector:
- VGA Monitor Connections
- Serial Data Communication
- Industrial Control Systems
- Legacy Peripherals
- Test & Measurement Equipment
- Medical Equipment Interfaces
