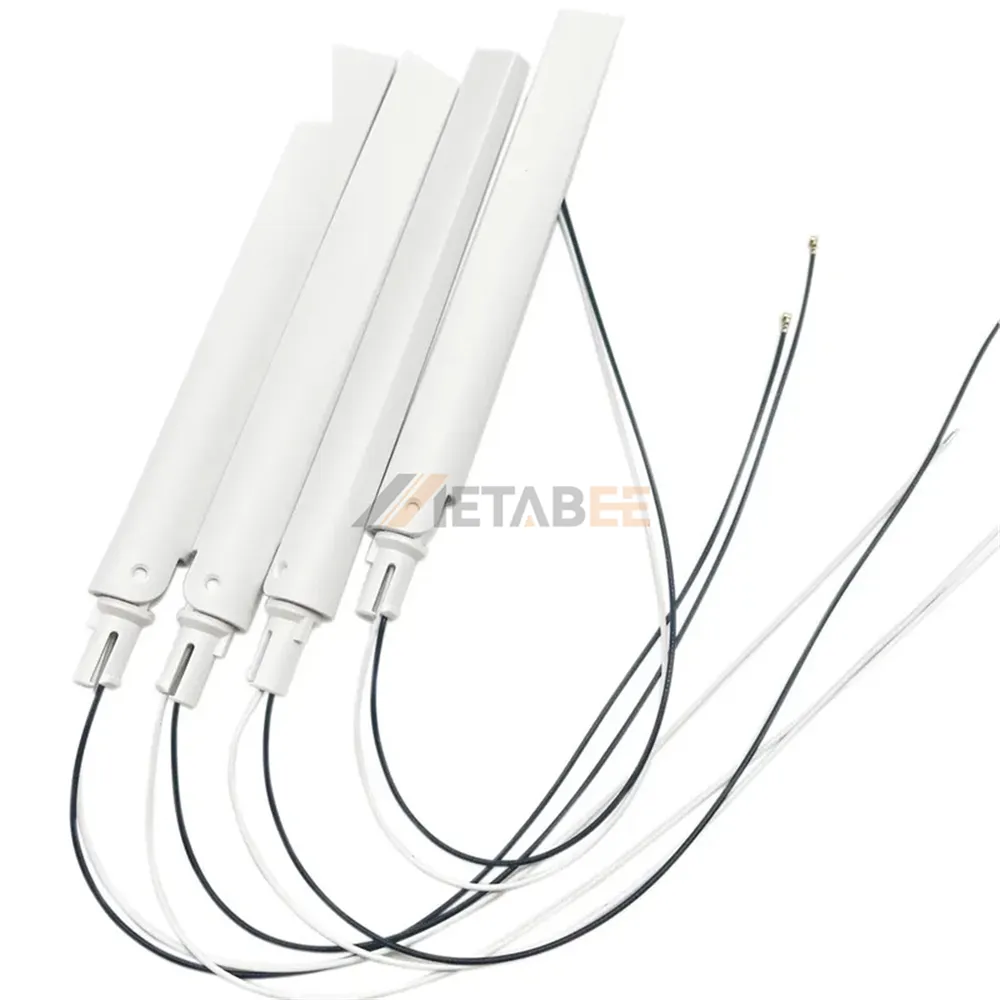

White 2.4/5.8 GHz 5dBi WiFi Rubber Antenna with 1.13/1.37mm Coaxial Cable, IPEX
Introduction:
The white 2.4/5.8 ghz 5dbi wifi rubber antenna is designed for reliable wireless communication in dual-band wifi devices, routers, iot equipment, and embedded wireless applications. Supporting 2.4 ghz and 5.8 ghz frequency bands, this antenna provides stable signal transmission with enhanced coverage performance.
Featuring 4dbi gain, vertical polarization, and an omni-directional radiation pattern, this antenna ensures consistent signal distribution in various installation environments. The integrated 1.13/1.37mm coaxial cable and ipex connector provide flexible installation for compact devices. With 50 ohm impedance, ≤1.92 vswr, and 50w maximum input power, it delivers efficient rf performance and reliable operation from -20°c to 70°c.
Key Features
- Dual-band 2.4/5.8 ghz frequency range for wifi applications
- 4dbi gain for improved wireless signal coverage
- Omni-directional radiation pattern for wide signal distribution
- IPEX connector with 1.13/1.37mm coaxial cable for easy integration
- Vertical polarization for stable rf transmission performance
- -20°c to 70°c operating temperature for reliable use in different environments
General Information:
| Product No.: | YC-EX20010 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | IPEX | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | White | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this White 2.4/5.8 GHz 5dBi WiFi Rubber Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
