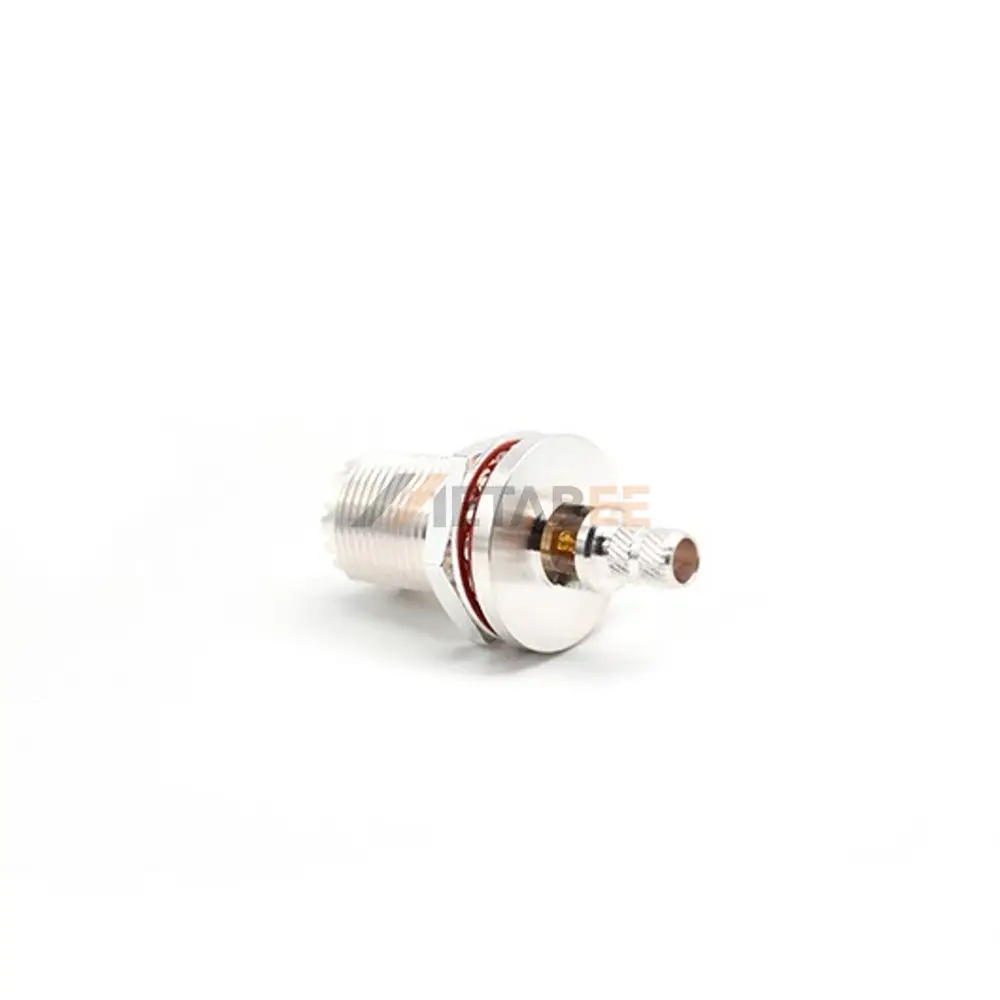

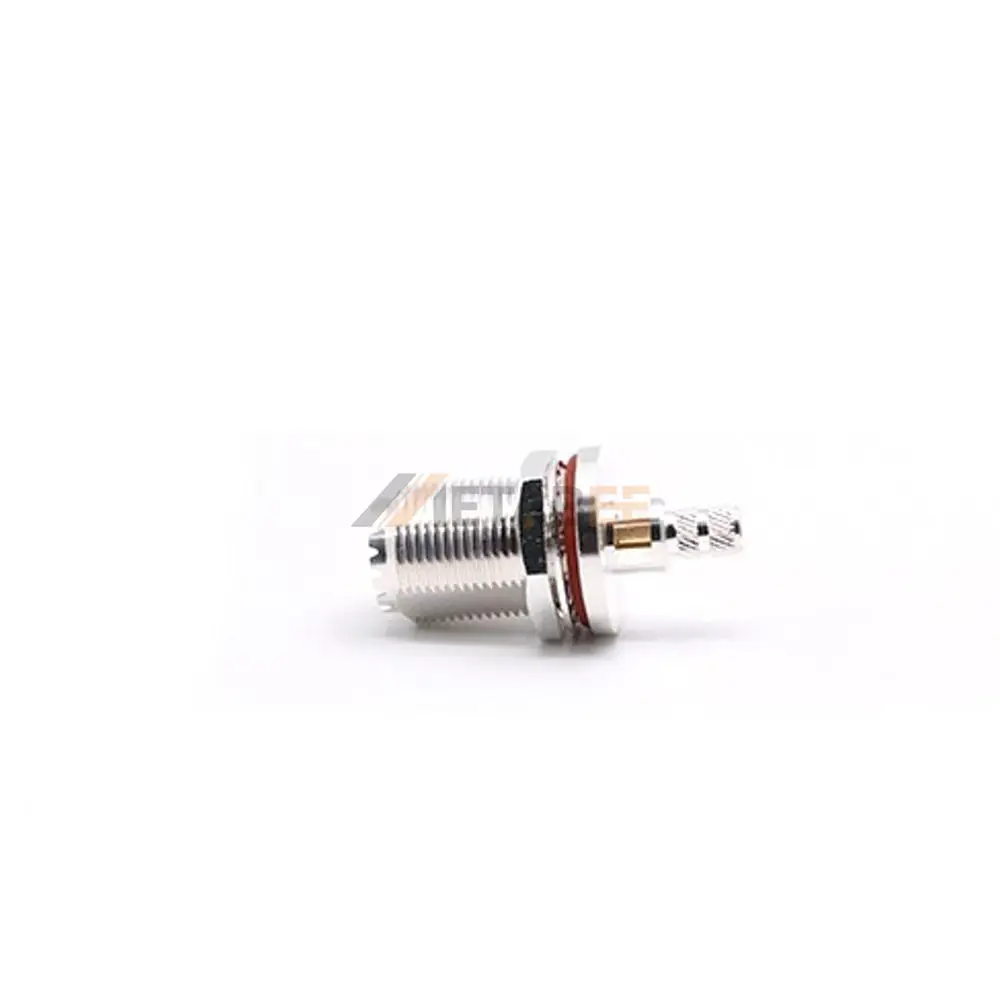

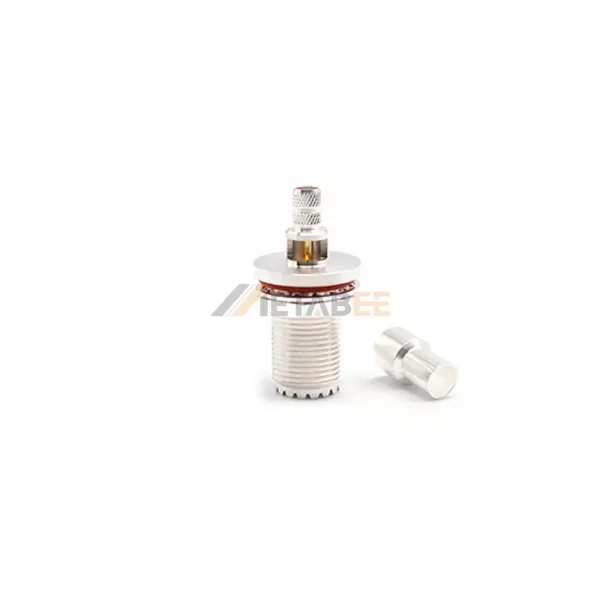

UHF Female / SO-239 Bulkhead Coax Connector, Crimp Attachment for LMR240, 50 Ohm
Introduction
This straight UHF female connector (also known as SO239 connector) is a premium solution designed for high-performance RF connectivity. It features a bulkhead design with a threaded fastening type, providing a robust and stable installation. It utilizes a crimp termination method to provide secure and reliable electrical connections. The shell is constructed with durable nickel-plated brass. The TEFLON insulator ensures optimal signal integrity, while the gold-plated bronze contacts provide excellent conductivity and low contact resistance. Besides, it can support a maximum frequency of 300 MHz and a standard impedance of 50 ohms, making it suitable for various low-frequency RF applications.
Main Specifications:
General Information:
| Product Series: | UHF Connectors | |
| Brand: | Metabee | |
| Gender: | Female | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Crimp | |
| Mount Method: | Panel Mount | |
| Mount Feature: | Bulkhead | |
| Fastening Type: | Threaded Coupling | |
| Cable Type: | LMR240 | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Nickel Plated | |
| Insulator Material: | TEFLON | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency Range: | DC – 300 MHz | |
| Rated Voltage: | 500 Volts RMS Max Continuous | |
| Insulation Resistance: | 5000 MΩ Min |
Mechanical Performance:
| Coupling: | 5/8-24 Threaded | |
| Durability: | ≥ 500 Cycles |
Applications of this UHF Female / SO-239 Bulkhead Coax Connector:
UHF connectors are widely used in various industries and applications due to their rugged design and ability to handle moderate power levels.
Here are some main applications:
- Television Antennas;
- CB Radio Systems;
- Military Communication;
- Public Address Systems;
- Audio-Video Equipment;
- Industrial Control Systems;
- Radar Systems;
- Test Equipment;
- Marine Electronics;
- Aviation Communication.
