SSMA Jack Panel Mount Connector with 2-Hole Flange, Solder Attachment, 50 Ohm
Introduction

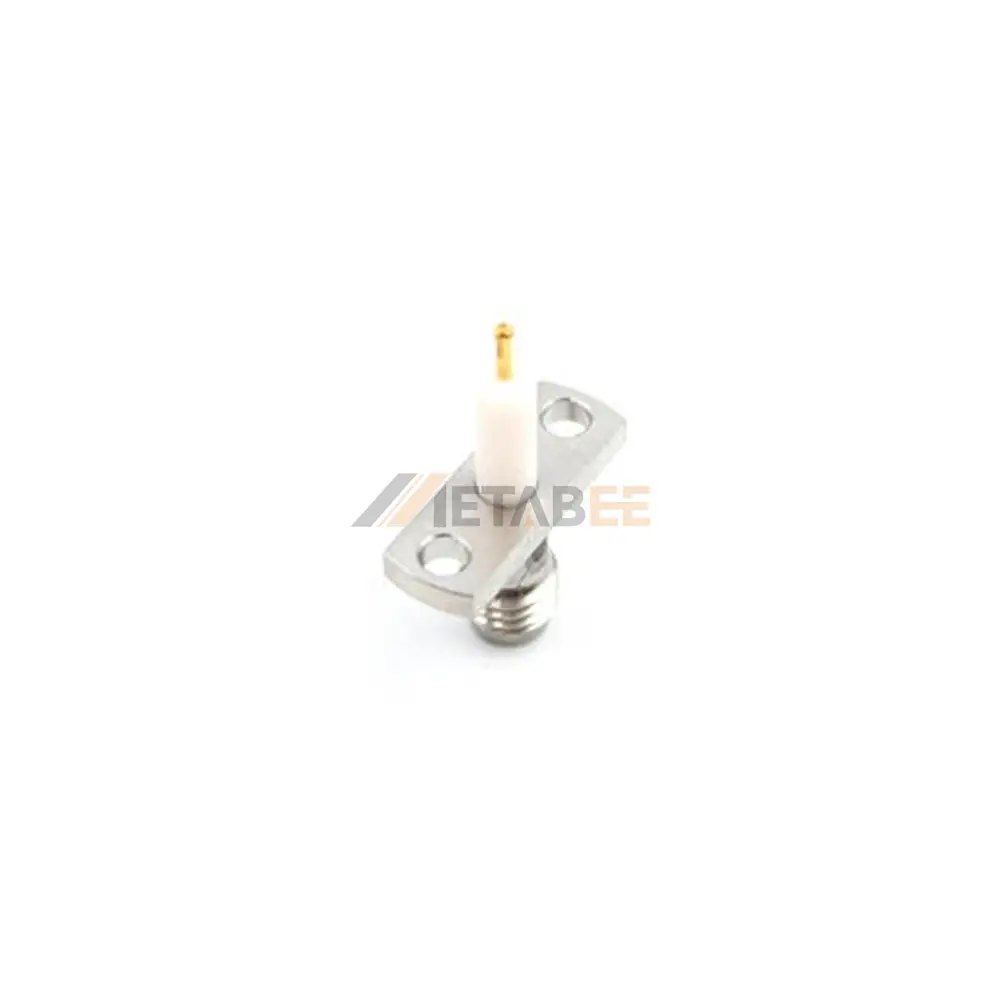

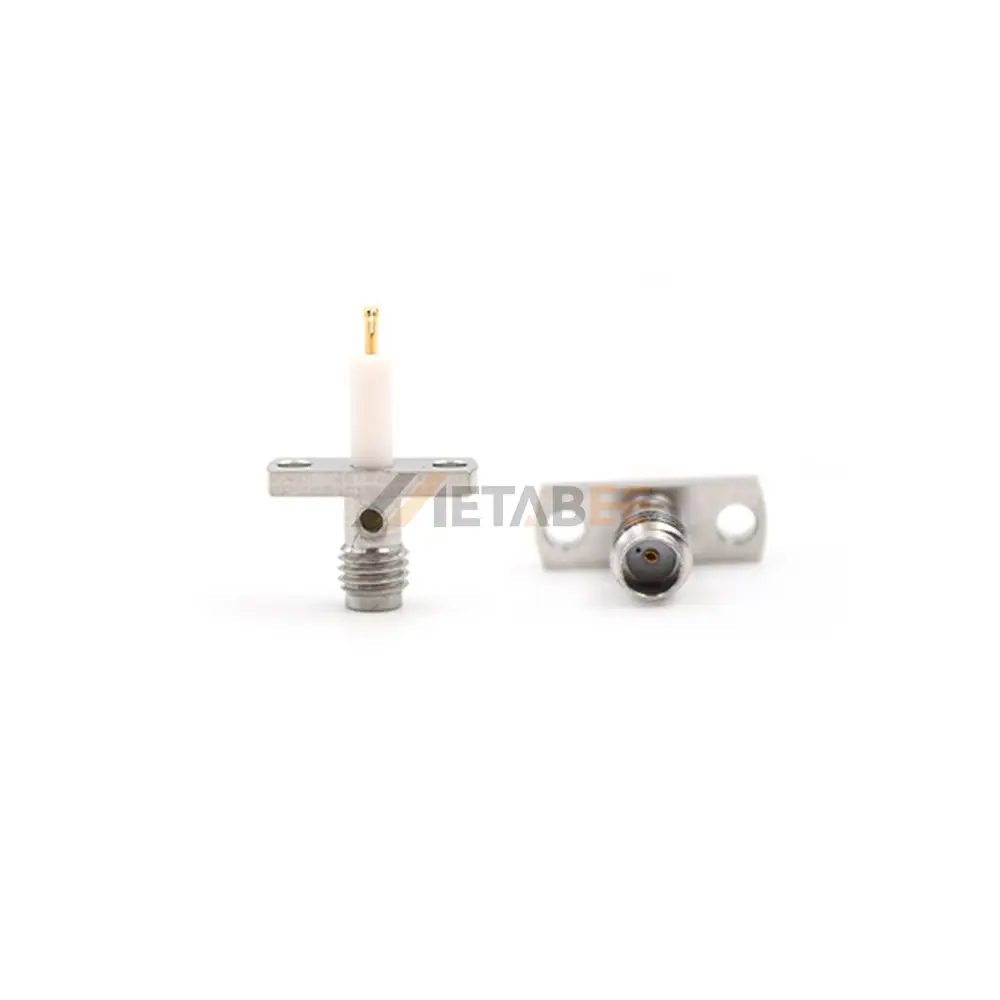

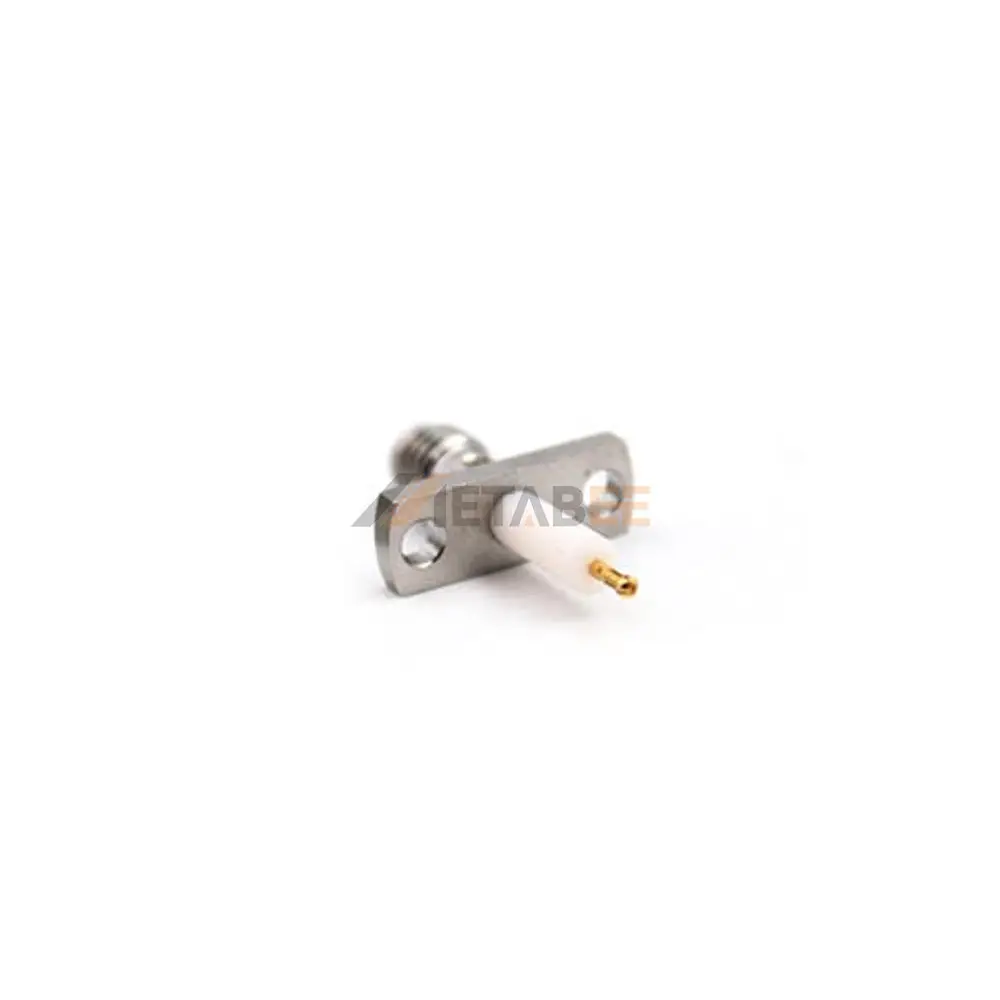

This SSMA female connector from Metabee is a high-quality RF connector designed for 2 flange mount panel mounting with a reliable threaded coupling mechanism. Featuring a straight orientation and solder termination ensures secure and stable electrical connections. The passivated brass shell provides excellent corrosion resistance. The Teflon insulator delivers superior electrical insulation, ensuring consistent and dependable performance. The gold-plated beryllium copper contact enhances conductivity, ensuring exceptional durability and long-lasting reliability. With a 50 Ohm impedance, this SSMA connector performs seamlessly across a frequency range of DC-6 GHz and is built to operate in extreme temperatures from -65°C to +165°C.
Main Specifications:
General Information:
| Product Series: | SSMA Connectors | |
| Brand: | Metabee | |
| Gender: | Female | |
| Orientation: | Straight | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Solder | |
| Mount Method: | Panel Mount | |
| Mount Feature: | 2 Hole Flange | |
| Fastening Type: | Threaded Coupling | |
| Temperature Range: | -65°C to +165°C | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Passivated | |
| Insulator Material: | TEFLON | |
| Contact Material: | Beryllium Copper | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency Range: | DC – 6 GHz | |
| RF Leakage: | –128 dB DC-1 GHz | |
| Power Handling: | 60kW – 10kW max | |
| PIM: | -160 dBc |
Mechanical Performance:
| Engagement Force: | 15 N (3.37 lb) typical | |
| Disengagement Force: | 10 N (2.25 lb) typical | |
| Retention Force of Interface: | 550 N (123.65 lb) min | |
| Durability: | ≥ 500 Cycles |
Applications of this SSMA Jack Panel Mount Connector with 2-Hole Flange:
SSMA connectors are a smaller type of SMA connector. They have a compact design, high durability, and excellent electronic performance.
Here are some main applications:
- Telecommunication;
- RFID (Radio-Frequency Identification);
- Antennas;
- Mil-Aero;
- Radar systems;
- Test and Measurement;
- High-Speed Data Transfer;
- Microware Systems;
- Medical Equipment.
