SMA Male to SMA Female using .086” Flexible Low Loss Cable, DC-18 GHz

SMA Male to SMA Female using .086” Flexible Low Loss Cable, DC-18 GHz

Introduction

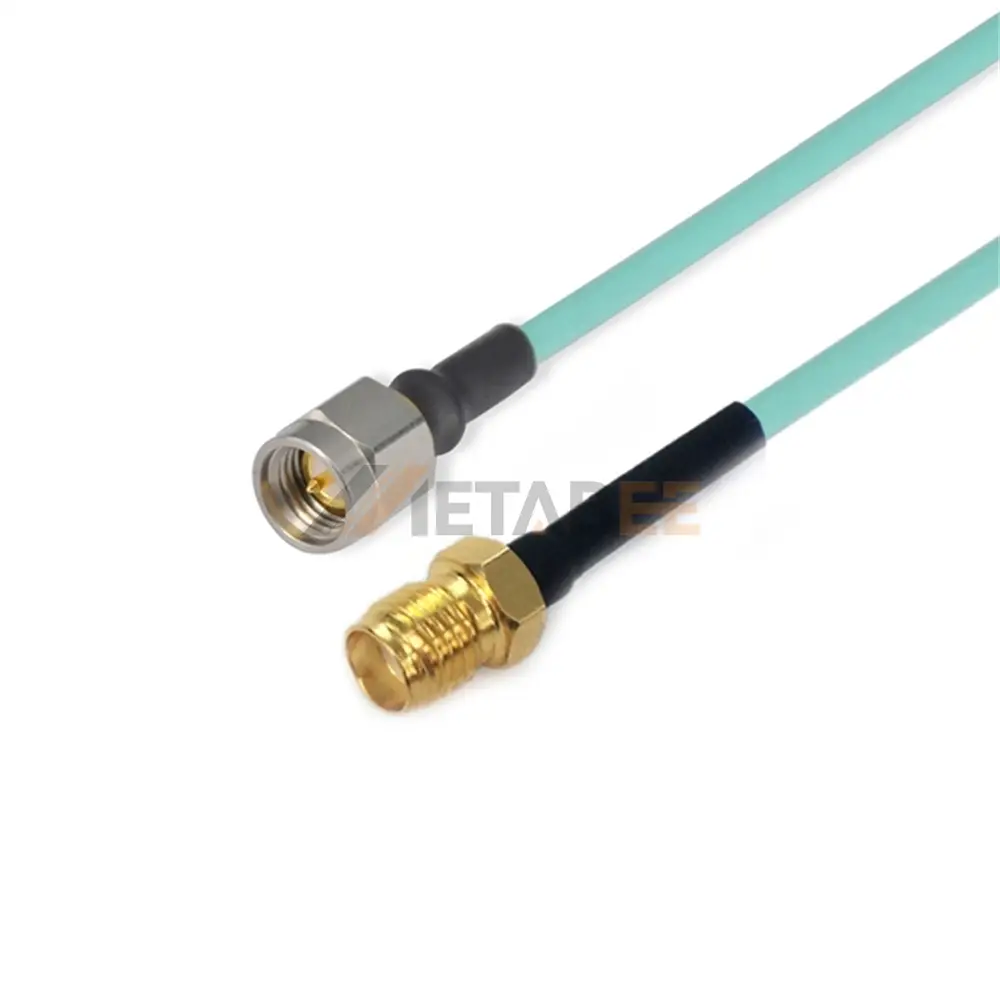

This Metabee RF test cable is a high-performance coaxial cable designed for high-frequency testing and measurement applications. It features an SMA male straight connector on one end and an SMA female straight connector on the other, ensuring stable and reliable signal transmission. The cable assembly is the .086” Flexible flexible low-loss cable, providing reliable signal transmission. The cable supports frequencies up to 18 GHz and maintains a consistent impedance of 50 ohms, ensuring accurate and repeatable measurements across a broad frequency spectrum. Built to withstand harsh environments, it operates seamlessly in a temperature range of -40℃ to +125℃.

Main features are as follows:

• High-Performance Coaxial Cable: Designed for high-frequency testing and measurement applications
• SMA to SMA Connector: Ensures stable and reliable signal transmission with consistent connectivity.
• .086” Flexible Low-Loss Cable: Provides reliable signal transmission with minimal signal degradation
• Frequency Range up to 18 GHz: Supports high-frequency applications for precise measurements.
• 50 Ohm Impedance: Maintains consistent impedance for accurate and repeatable measurements.
• Wide Operating Temperature Range (-40℃ to +125℃): Built to withstand harsh environmental conditions.

Main Specifications:

Applications of this SMA Male to SMA Female Flexible Low Loss Cable:

Here are some main applications:

• RF Testing and Measurement;
• Telecommunications;
• Broadcasting
• Aerospace and Defense;
• Satellite Communications;
• Medical Equipment;

We can customize this RF test cable assembly according to your special requirements. Get a free quotation now!
