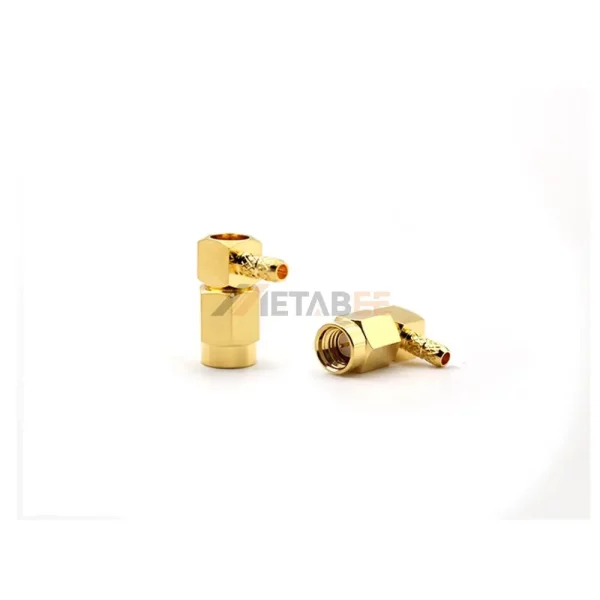

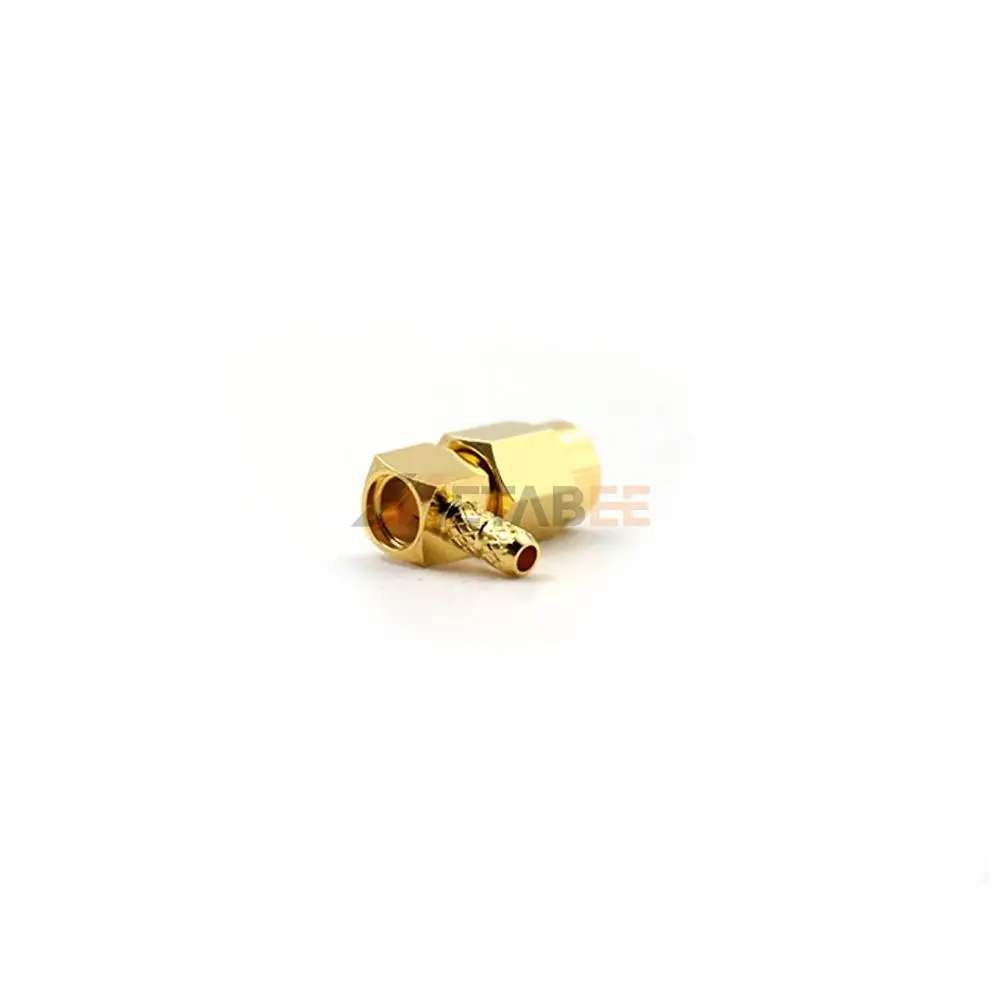

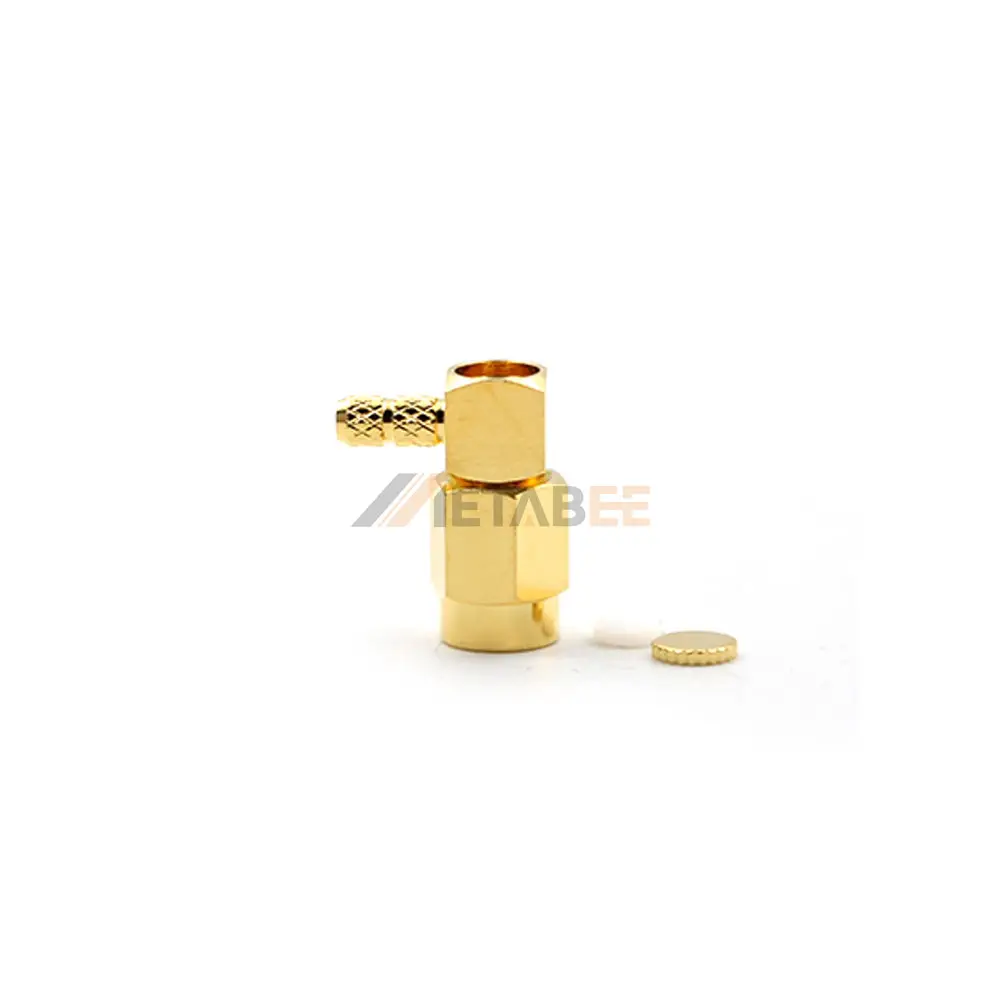

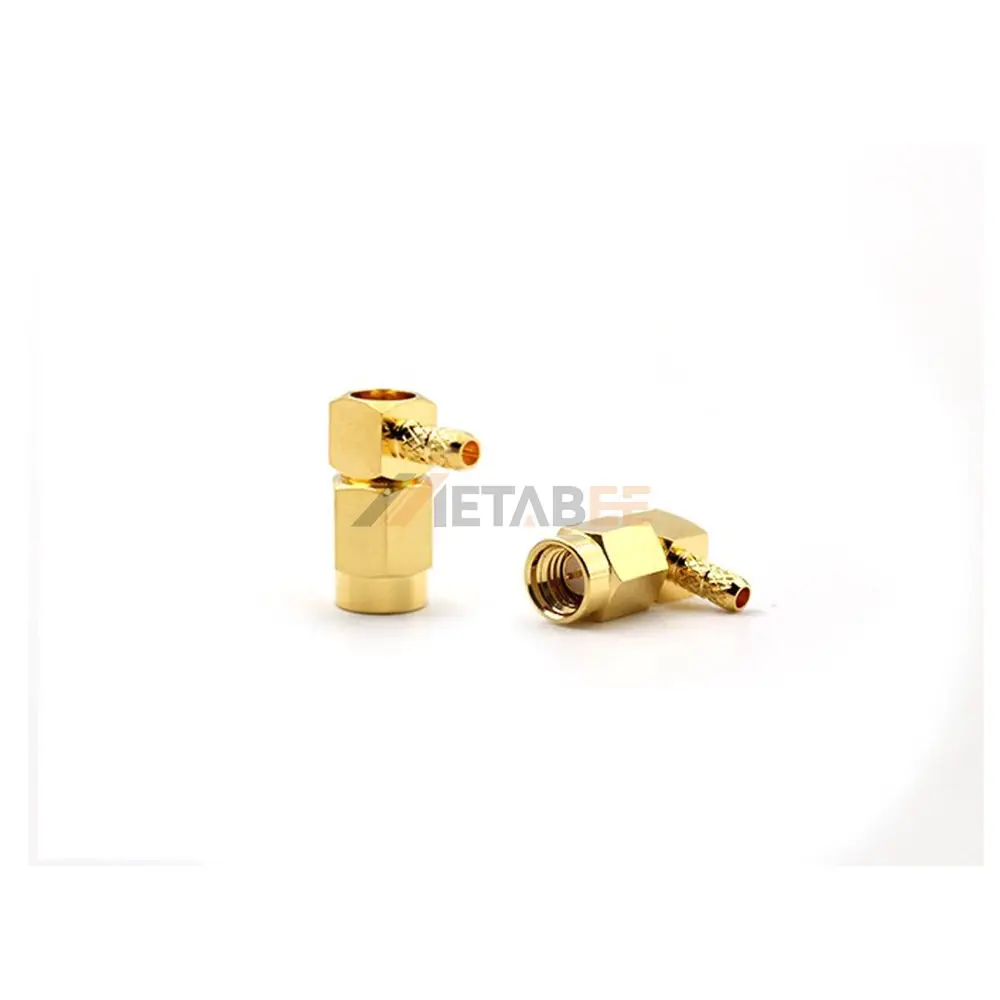

Right Angle SSMA Male Crimp Connector for RG316, 50 Ohm
Introduction
This SSMA male connector from Metabee is a high-quality RF connector designed for cable-type mounting with a reliable threaded coupling mechanism. Featuring a right-angle orientation and crimp termination, It ensures secure and stable electrical connections. The gold-plated brass shell provides excellent corrosion resistance. The Teflon insulator delivers superior electrical insulation, ensuring consistent and dependable performance. The gold-plated brass contact enhances conductivity while ensuring exceptional durability and long-lasting reliability. With a 50 Ohm impedance, this SSMA connector performs seamlessly across a frequency range of DC-6 GHz and is built to operate in extreme temperatures from -65°C to +165°C.
Main Specifications:
General Information:
| Product Series: | SSMA Connectors | |
| Brand: | Metabee | |
| Gender: | Male | |
| Orientation: | Right Angle | |
| Number of Contacts: | 1 Port | |
| Contact Termination: | Crimp | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Fastening Type: | Threaded Coupling | |
| Cable Type: | RG316 | |
| Temperature Range: | -65°C to +165°C | |
| Other Feature: | None |
Materials and Plating:
| Body Material: | Brass | |
| Body Plating: | Gold Plated | |
| Insulator Material: | TEFLON | |
| Contact Material: | Brass | |
| Contact Plating: | Gold Plated |
Electrical Performance:
| Impedance: | 50 Ohm | |
| Frequency Range: | DC – 6 GHz | |
| RF Leakage: | –128 dB DC-1 GHz | |
| Power Handling: | 60kW – 10kW max | |
| PIM: | -160 dBc |
Mechanical Performance:
| Engagement Force: | 15 N (3.37 lb) typical | |
| Disengagement Force: | 10 N (2.25 lb) typical | |
| Retention Force of Interface: | 550 N (123.65 lb) min | |
| Durability: | ≥ 500 Cycles |
Applications of this Right Angle SSMA Male Crimp Connector:
SSMA connectors are a smaller type of SMA connector. They have a compact design, high durability, and excellent electronic performance.
Here are some main applications:
- Telecommunication;
- RFID (Radio-Frequency Identification);
- Antennas;
- Mil-Aero;
- Radar systems;
- Test and Measurement;
- High-Speed Data Transfer;
- Microware Systems;
- Medical Equipment.
