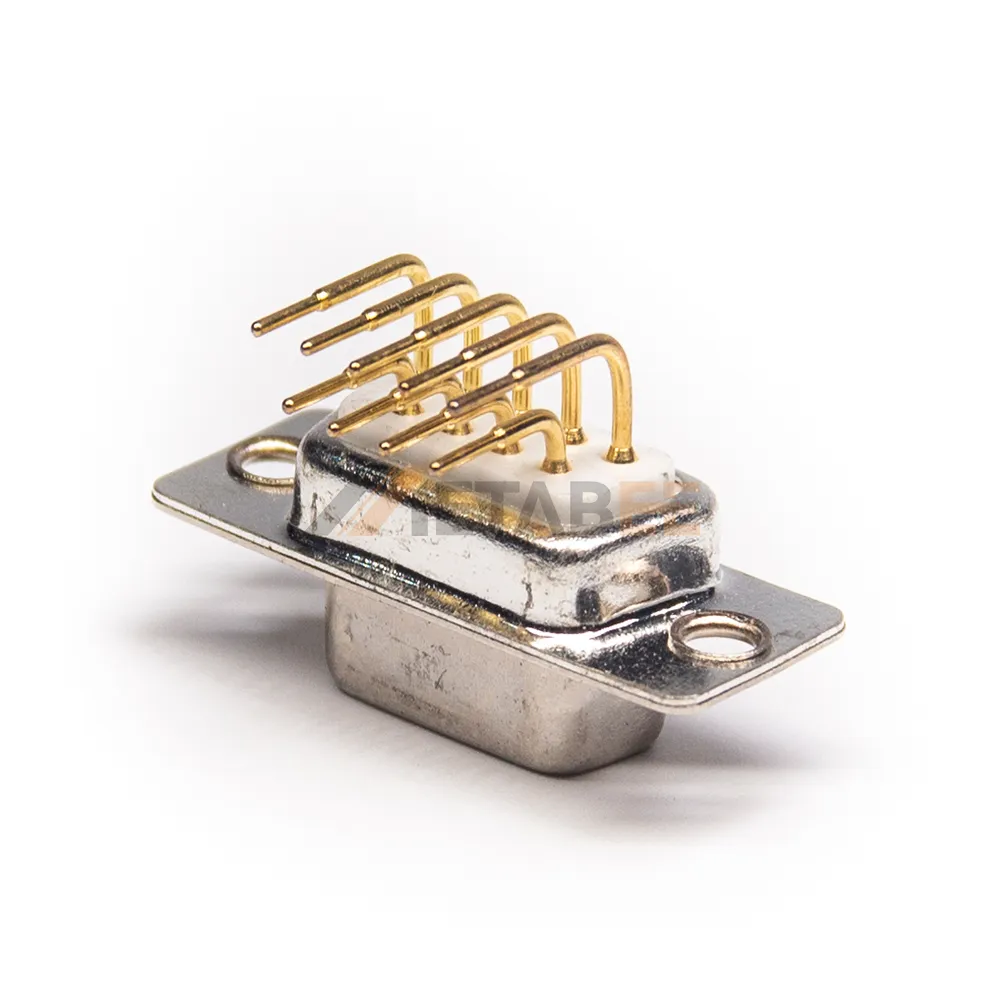

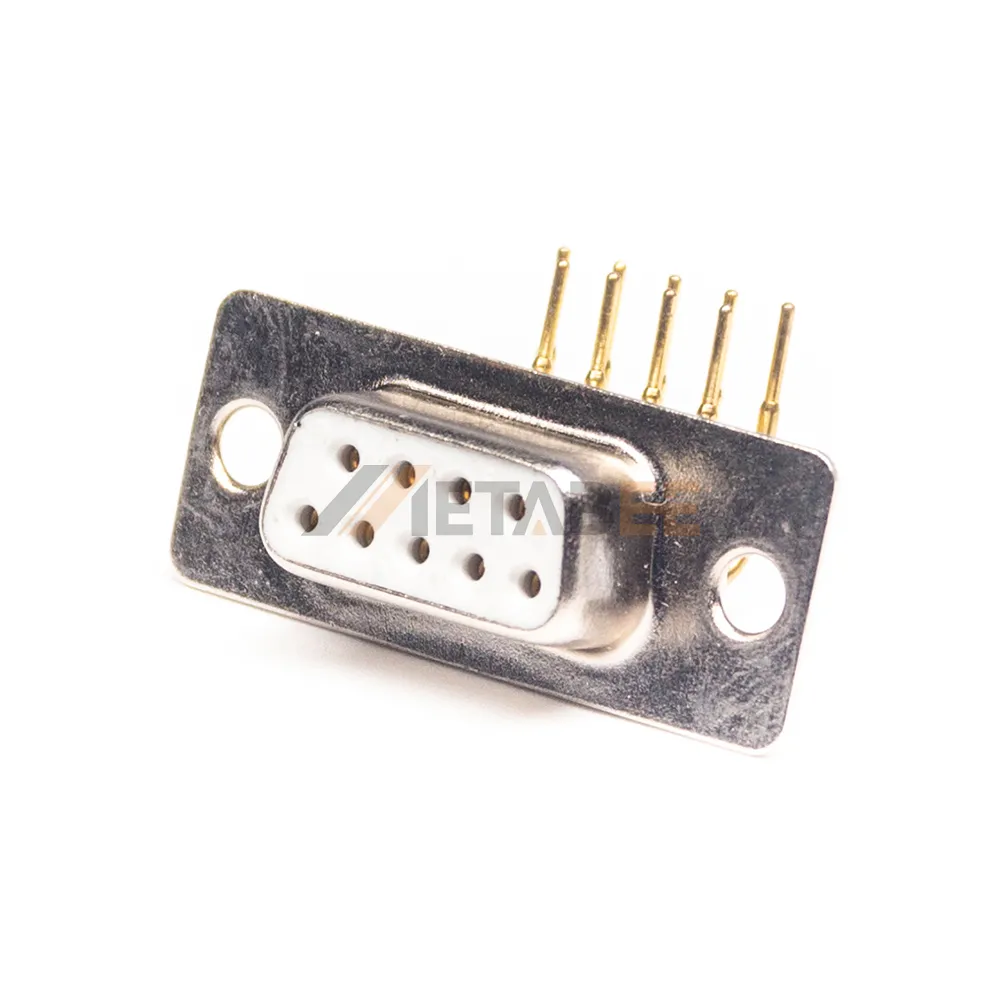

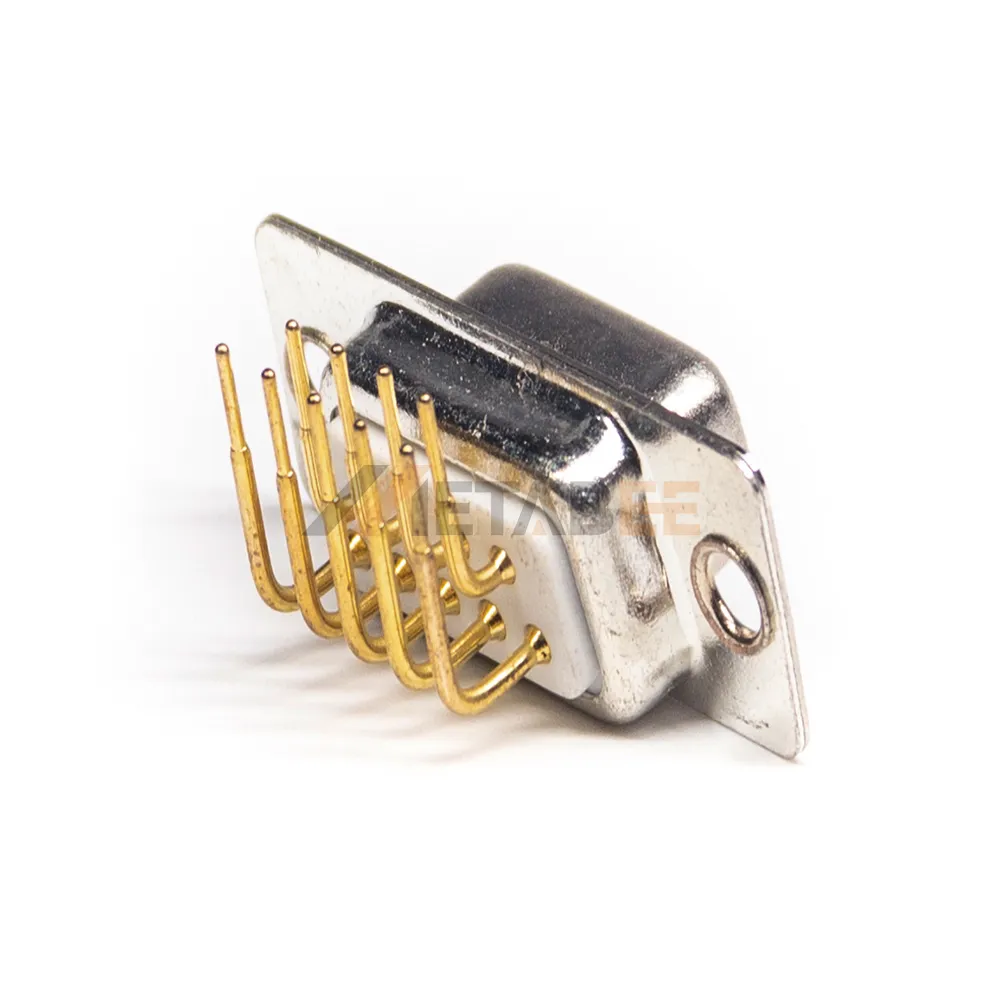

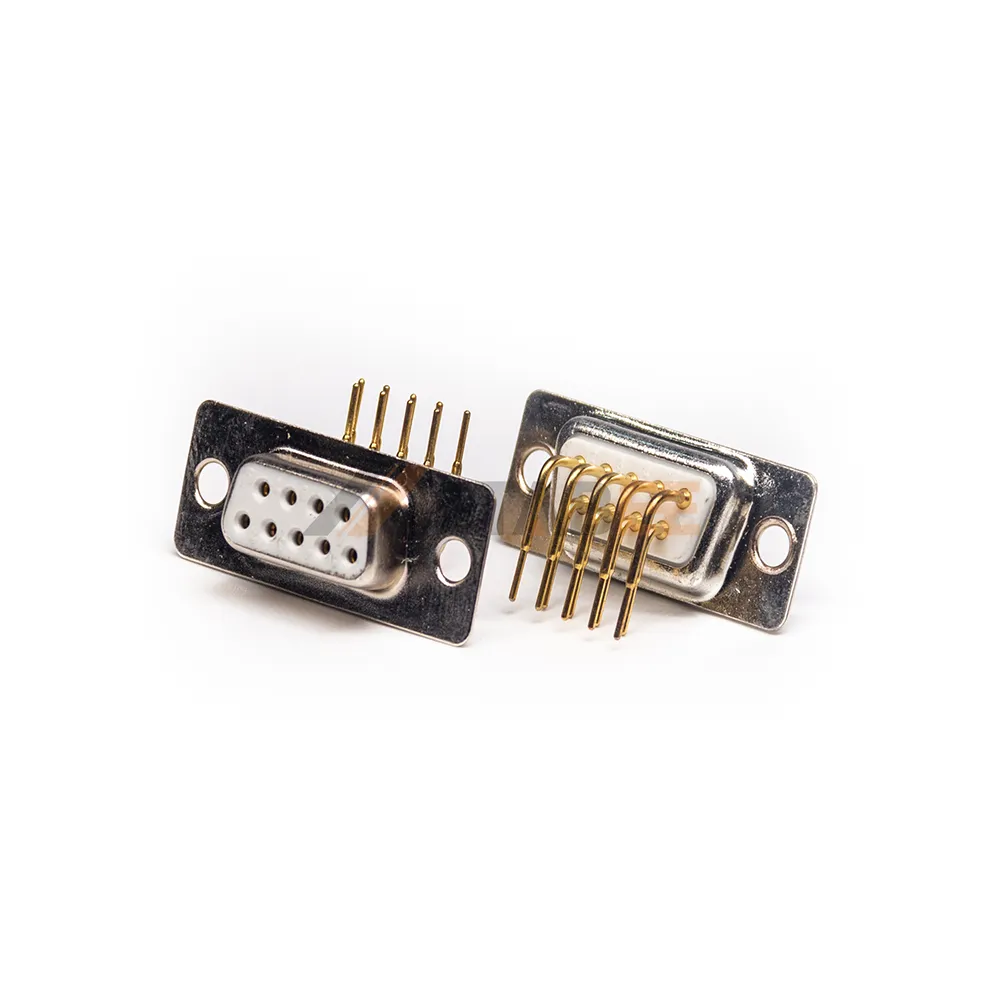

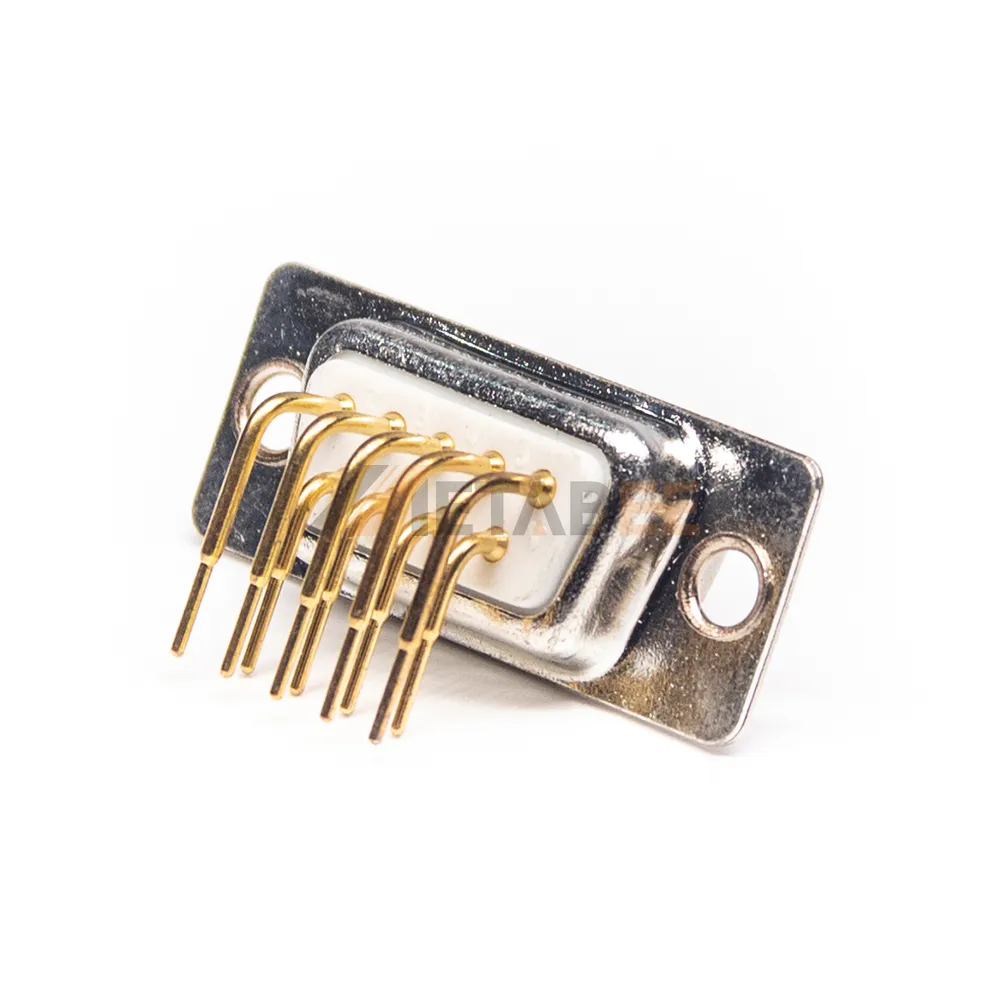

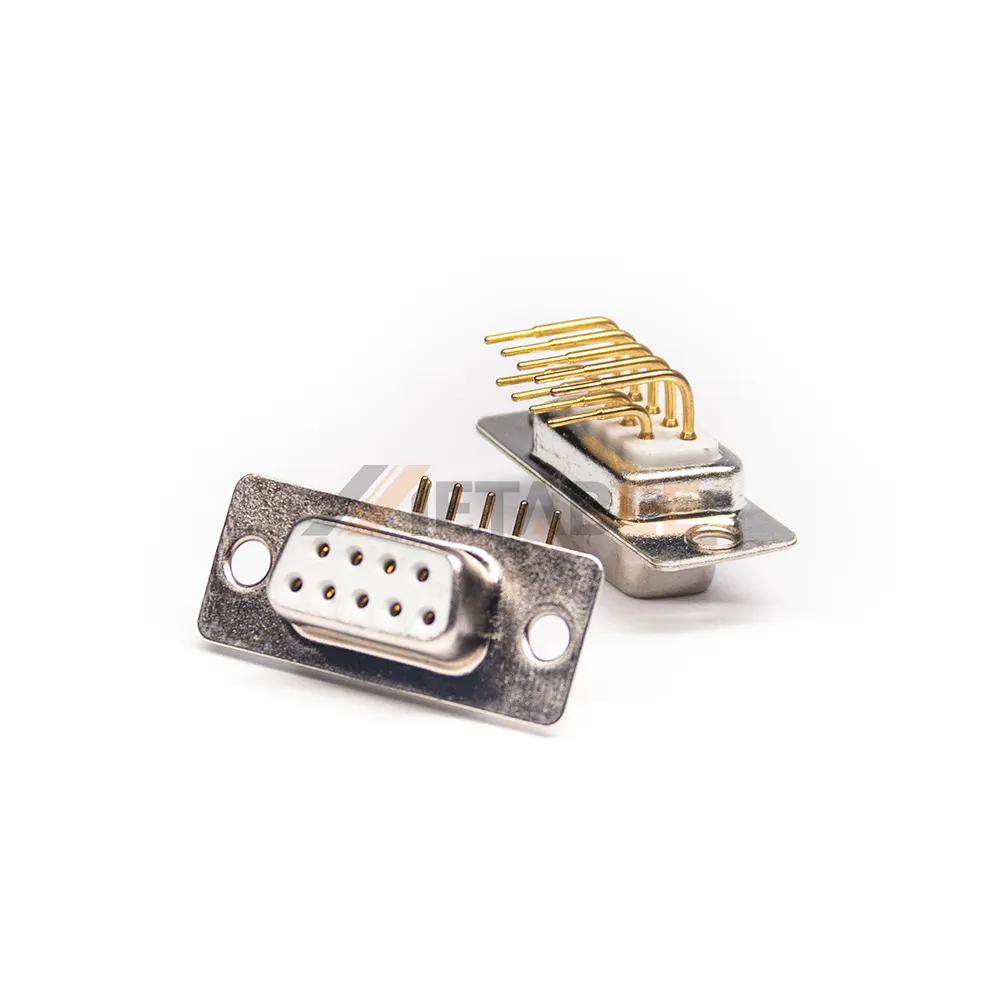

Right Angle D-Sub DB9 Female Connector, PCB Mount, Through Hole, Machined Contacts, 2.77mm Pitch

Right Angle D-Sub DB9 Female Connector, PCB Mount, Through Hole, Machined Contacts, 2.77mm Pitch

Introduction:

This right angle D-sub DB9 connector is engineered for secure PCB mounting. Its right angle profile is ideal for space-constrained layouts. This connector uses high-quality machined contacts for a flawless and durable connection. The connector mounts using through-hole technology; its solder pins are inserted into the PCB and soldered to form a robust, permanent mechanical and electrical bond. Gold-plated contacts ensure superior signal integrity, making it a high-reliability choice for industrial hardware and embedded systems.

This right angle D-sub DB9 connector has many great features, including:

• Right Angle Orientation: Provides a space-saving, low-profile horizontal connection.
• Solder Termination: Forms a permanent electrical bond between the connector and the PCB.
• Machined Contacts: Provides a precise and durable connection that outlasts stamped pins.
• Gold-Plated Contacts: Ensures superior signal integrity and excellent corrosion resistance.
• Durable Steel Shell: Offers robust physical protection for the connection point.
• Flame Retardant: Features a UL94 V-0 rated insulator for increased operational safety.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of this right angle D-sub DB9 connector:

• Industrial Automation;
• Serial Communication;
• Telecommunications;
• Test & Measurement Equipment;
• Computer Peripherals;
• Robotics and CNC Machine Control;
• Prototyping and Custom Assemblies;
• Medical and Laboratory Equipment;
