M16 2 Pin Male Field Wireable Connector, Shielded
Introduction

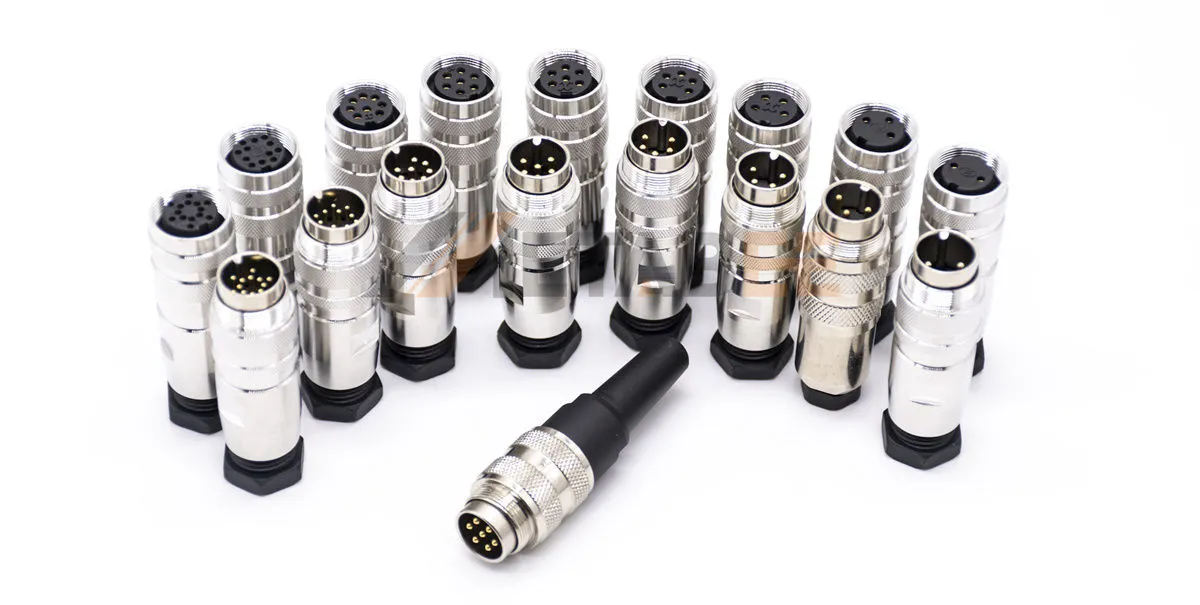

This M16 2connector is a robust and reliable component from our M16 Field Wireable Connector series, designed for efficient and secure industrial connections. Featuring a straight orientation and A-coded keying to prevent mismating, this male connector offers straightforward screw-joint termination for quick and tool-free wiring in the field. Its rugged construction, including a nickel-plated copper alloy shell and gold-plated CuZn contacts, ensures excellent corrosion resistance, superior signal integrity, and long-term durability in challenging environments.
Engineered for high performance, this shielded connector operates reliably within a temperature range of -25°C to +85°C. It boasts an IP67 rating, providing complete protection against dust and temporary immersion in water, making it ideal for use in washdown areas or outdoor applications. With a rating of 250V and 7A, it is well-suited for a variety of power and signal transmission tasks in automation, control systems, and sensor networking.
Key Features:
- 2-Pin, Male, A-Coded Configuration
- Screw-Joint Field Wireable Termination
- IP67 Rated for Dust and Water Resistance
- Nickel-Plated Copper Alloy Shielded Shell
- Gold-Plated CuZn Contacts for Reliability
- Operating Temperature: -25°C to +85°C
Main Specifications:
General Information:
| Product Number: | M16A-2PM-AS-S001 | |
| Connector Series: | M16 Field Wireable Connector | |
| Connector Gender: | Male | |
| Orientation: | Straight | |
| Connector Coding: | A Coded | |
| Number of Contacts: | 2 Pin | |
| Contact Termination: | Screw-Joint | |
| Mount Method: | Cable Type | |
| Mount Feature: | Not Applicable | |
| Shielding: | Shielded | |
| Weight: | 38g | |
| Other Features: | None |
Materials:
| Shell Material: | Copper Alloy | |
| Shell Material: | Nickel Plated | |
| Contact Material: | CuZn | |
| Contact Plating: | Au |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 7A | |
| Insulation Resistance: | ≥100 MΩ | |
| Contact Resistance: | ＜5 MΩ |
Mechanical Performance:
| Coupling method: | Threaded Coupling | |
| Thread Aperture: | M16*0.75 | |
| Wire Gauge: | 0.75mm²/(20AWG) | |
| Durability: | ≥500 Cycles |
Mechanical Performance:
| Temperature Range: | -25°C to 85°C | |
| IP Rating: | IP67 |
M16 Connector Pinout and Wiring Diagram:
Applications of this M16 2 Pin Male Field Wireable Connector:
M16 circular connectors are widely used in various industries due to their stability, reliability, and versatility. Here are some applications:
- Transportation: Connecting various sensors, cameras, lighting systems, and communication devices in onboard systems for trains, buses, and automobiles.
- Renewable Energy: Connecting sensors, controllers, and power distribution units in renewable energy systems such as solar panels and wind turbines.
- Audio Equipment: Connecting speakers, microphones, or other equipment.
- Sensors: Connecting various sensors and controllers, such as home security and automation control equipment.
- Pipe Connection: Connecting water pipes and air pipes in pipe connections.
- Small Electrical Equipment: Suitable for some electrical equipment, such as power tools and small household appliances.
