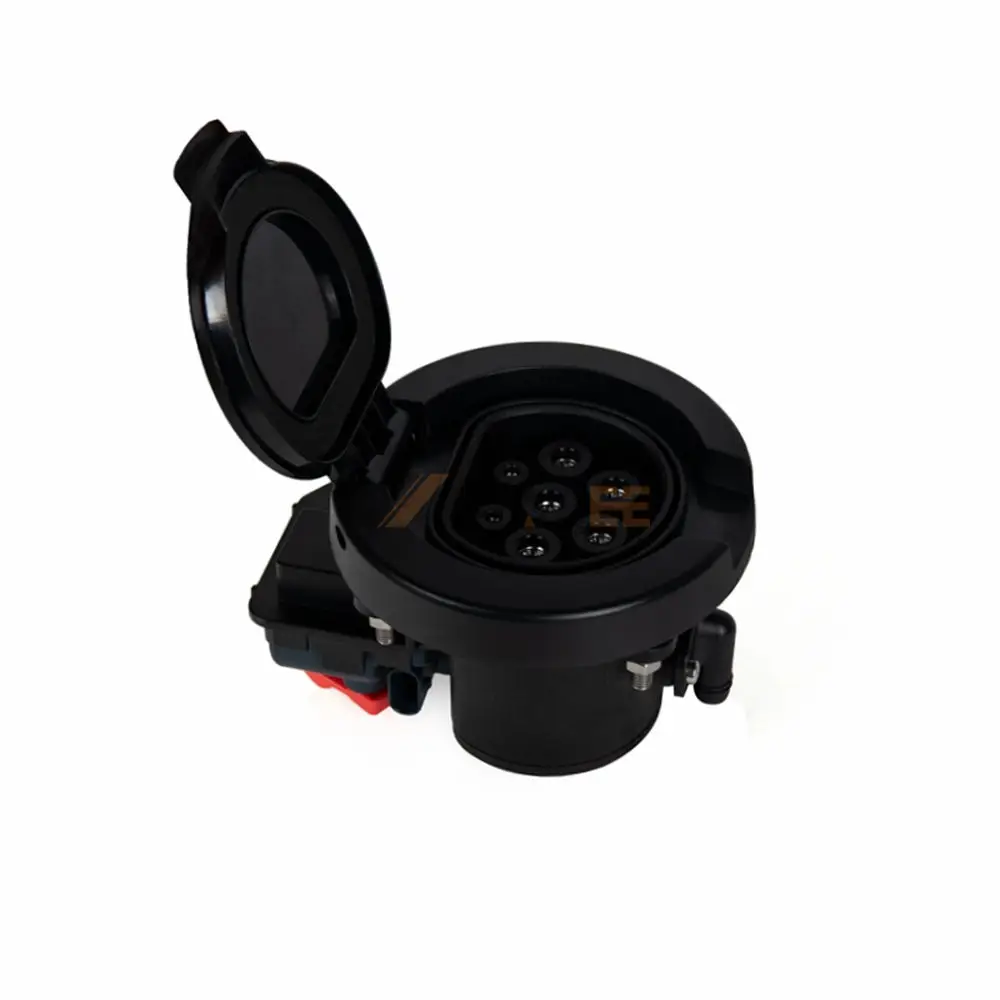

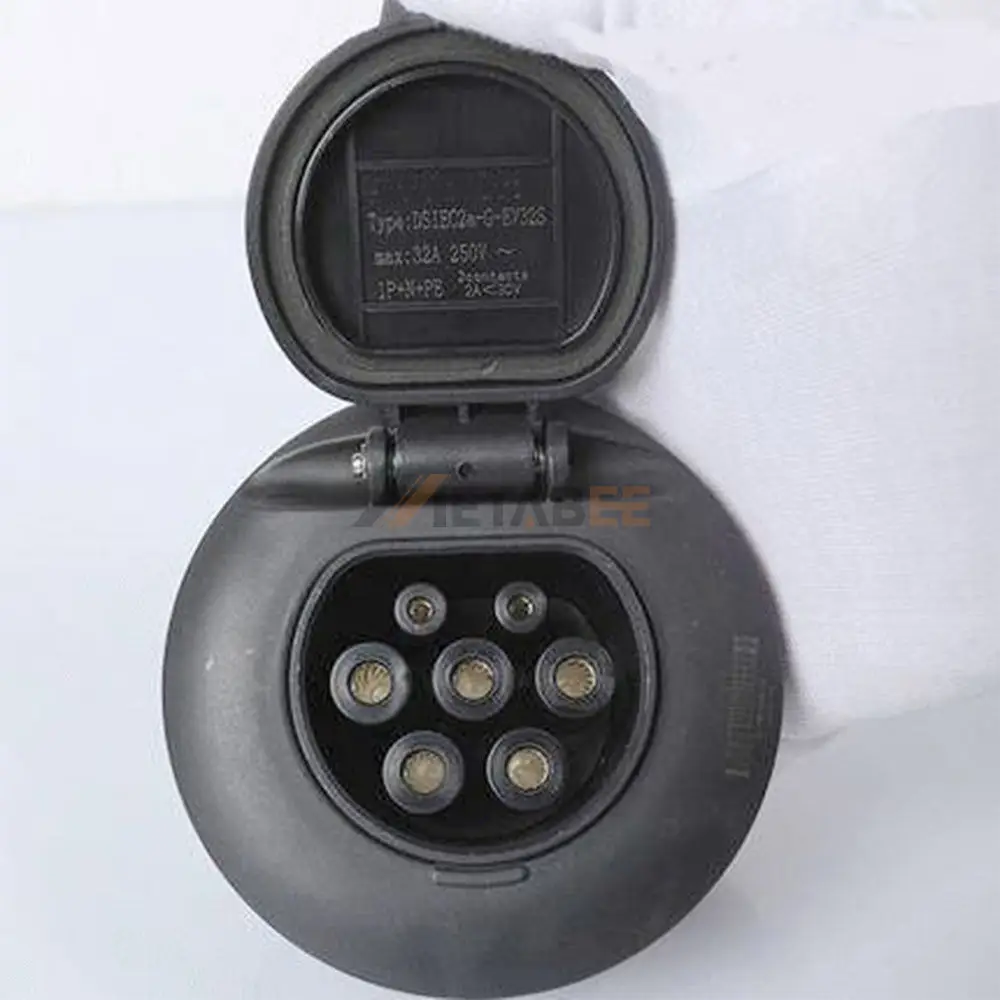

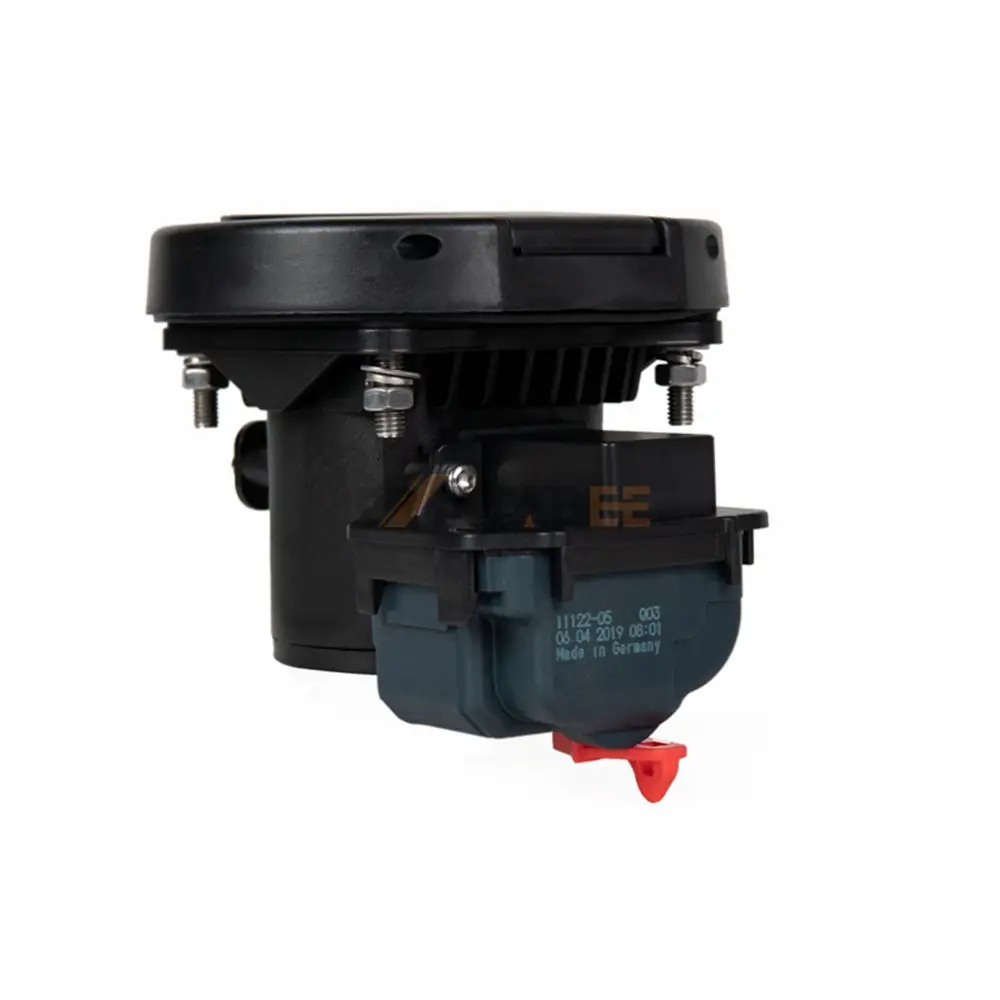

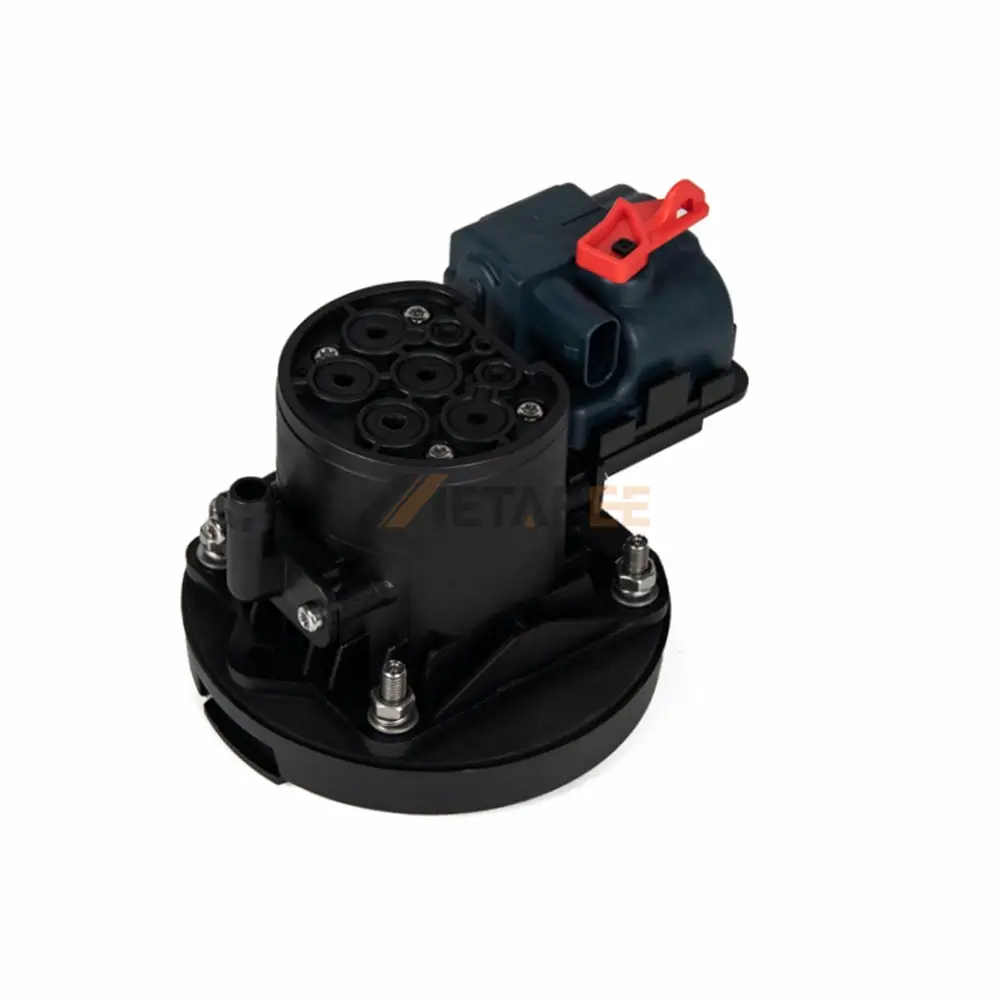

IEC 62196-2 Type 2 AC Charging Socket for EV, Three Phase, 415V, 32A
Introduction
This IEC 62196-2 Type 2 charging socket is the definitive component for building or upgrading to high-speed three-phase AC charging infrastructure. Engineered to deliver a full 32A at a rated voltage of 415V, it supports a maximum charging power of 13kW, enabling significantly faster charging times compared to standard single-phase systems. Its strict adherence to the IEC 62196-2 standard ensures seamless and safe connectivity for any Type 2 compatible electric vehicle, making it a reliable choice for commercial, public, or residential charging stations.
Durability and safety are at the core of its design. The socket is encased in a robust, high-grade thermoplastic for superior resilience and longevity. Inside, silver-plated copper alloy contacts provide maximum electrical conductivity and corrosion resistance for a reliable connection every time. Built to perform in any setting, it boasts an IP65 rating for complete protection against water and dust, a UL94V-0 flame-retardant classification for critical safety, and a wide operational temperature range from -30°C to 50°C.
Key Features:
- 13kW Three-Phase Power: Delivers high-speed AC charging to reduce vehicle charging times.
- IEC 62196-2 Certified: Guarantees universal compatibility and safety with all Type 2 vehicles.
- All-Weather Construction: IP65 rating ensures flawless performance both indoors and outdoors.
- Maximum Safety: Features a UL94V-0 flame-retardant housing for enhanced fire safety.
- Premium Contacts: Silver-plated copper alloy ensures optimal power transfer and durability.
- Extreme Temperature Resilience: Operates reliably in harsh climates from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | V2-YC-IEC2a-G-EV32S | |
| Product Series: | IEC Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Three Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 5X6mm²+2X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
IEC Standard AC Charging Type
IEC Type 2 Charging Connector Drawing
Applications of this IEC 62196-2 Type 2 AC Charging Socket for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
