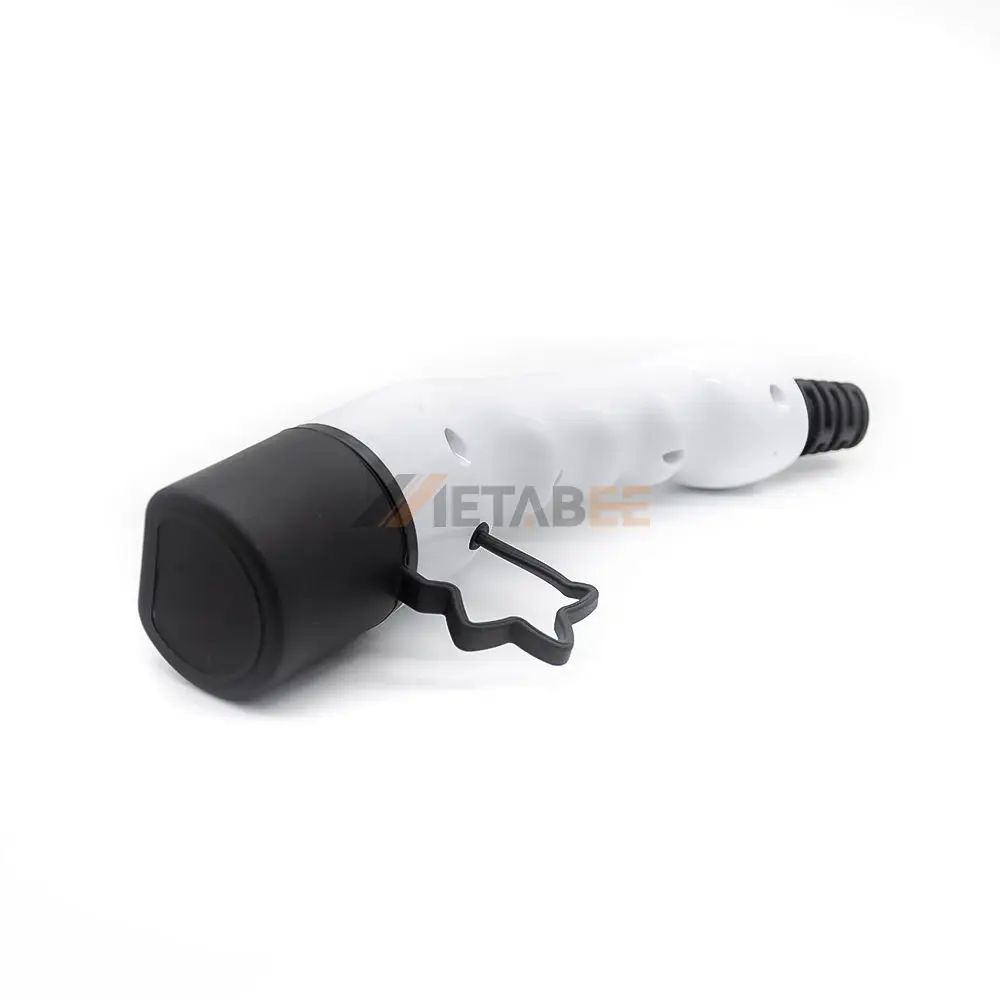

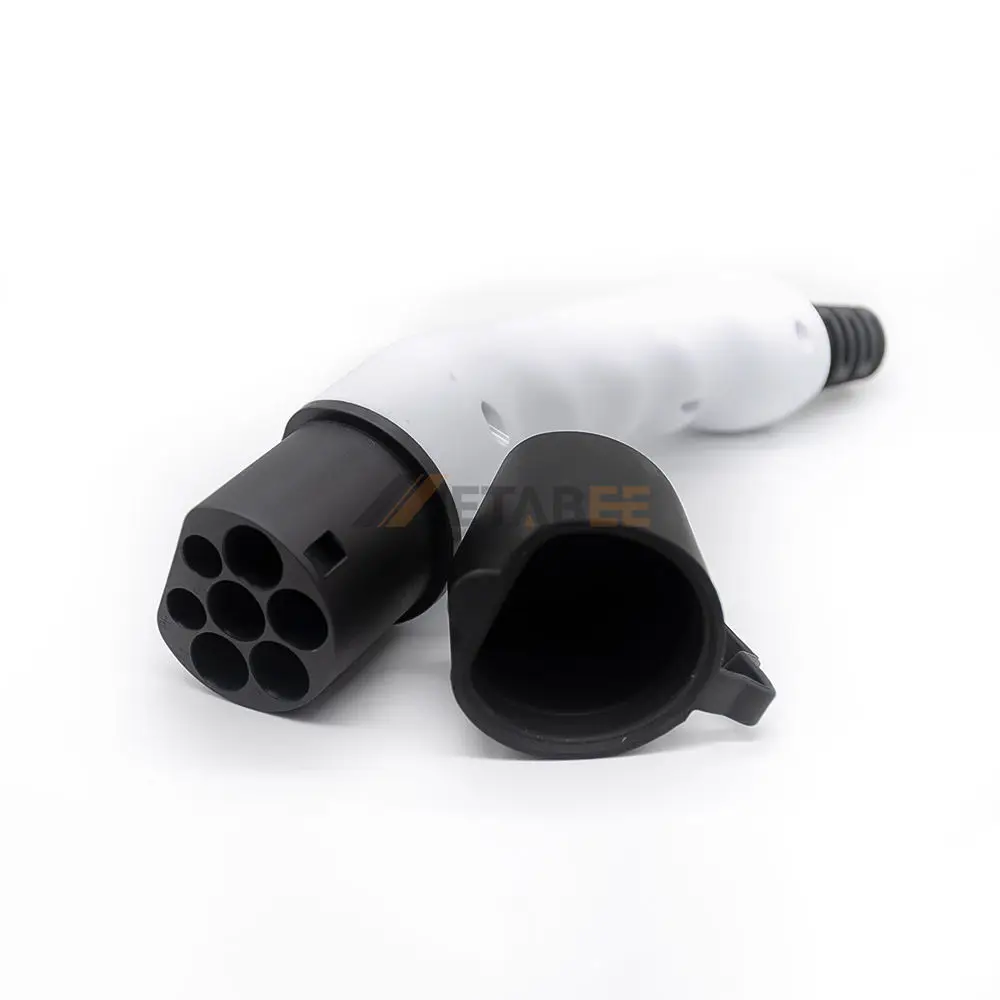

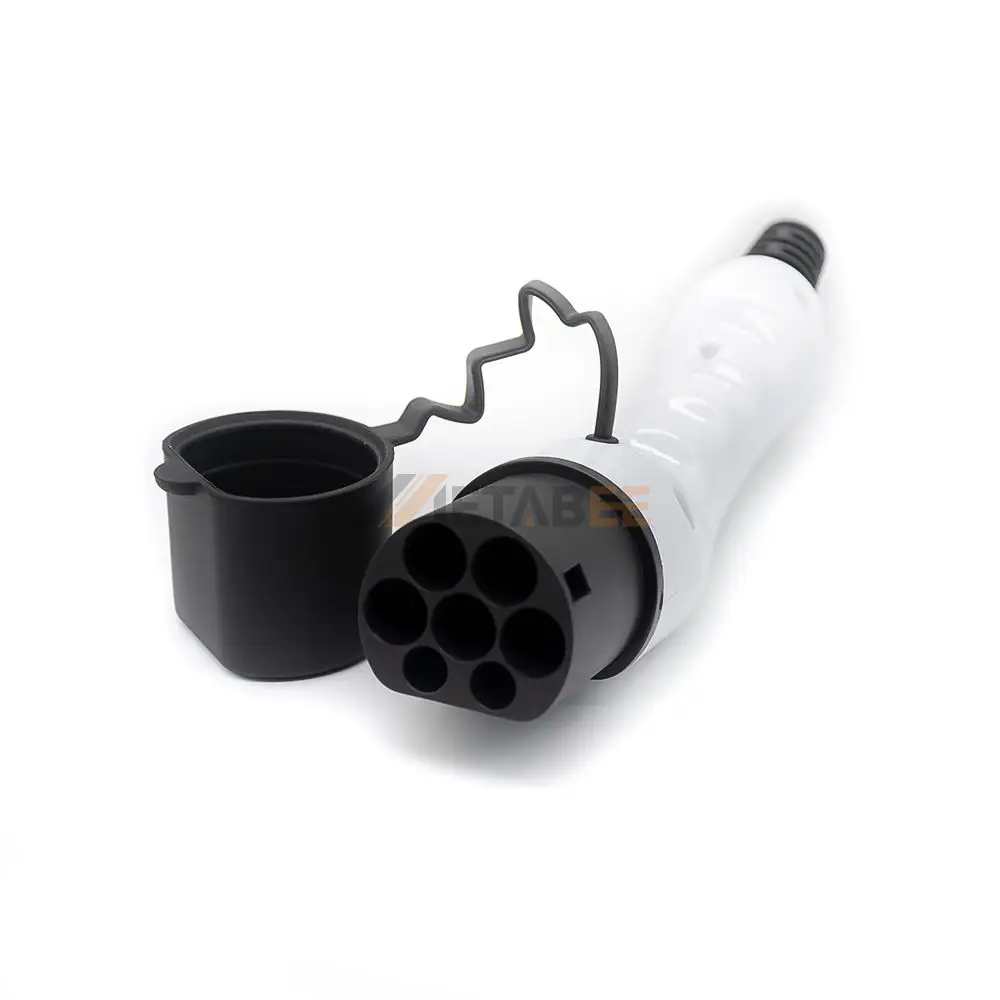

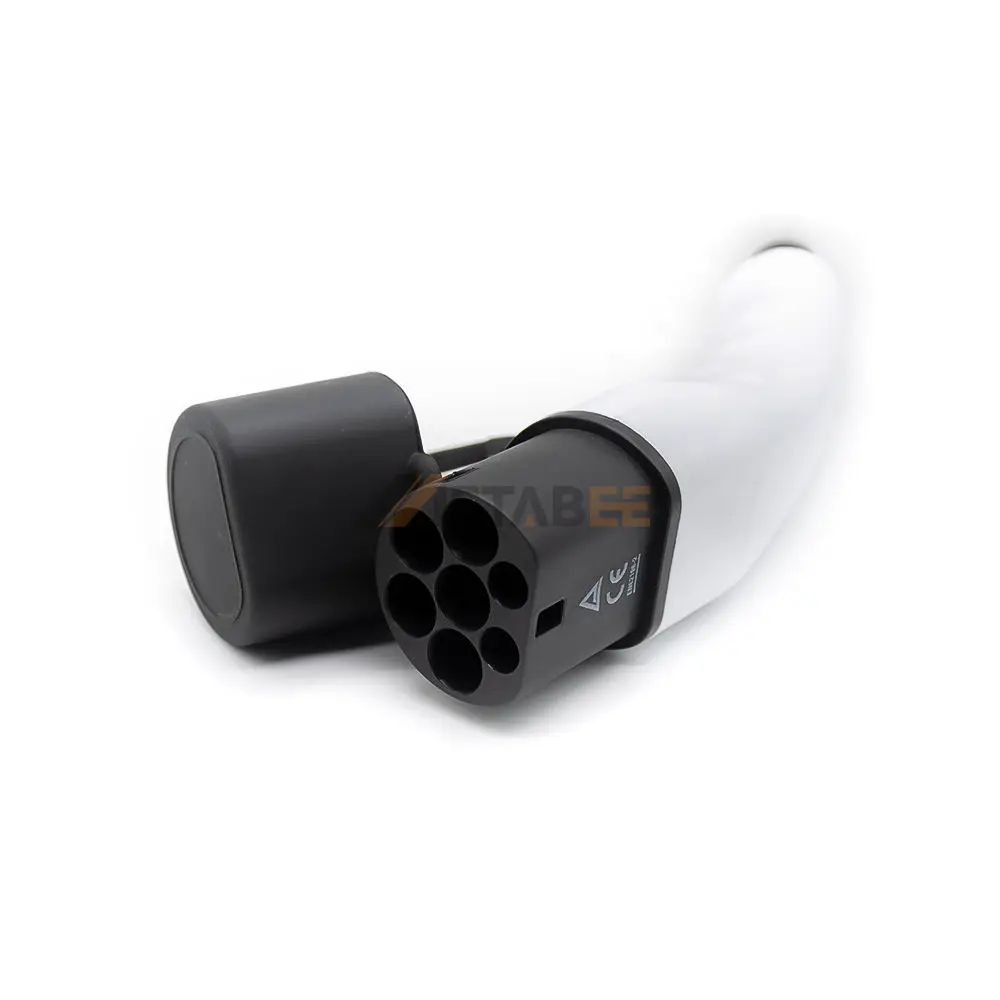

IEC 62196-2 Type 2 AC Charging Plug for EV, Three Phase, 415V, 32A
Introduction
This IEC 62196-2 Type 2 charging plug is engineered for high-efficiency three-phase AC charging systems. Delivering a robust 32A at a rated voltage of 415V, it provides a maximum charging power of up to 13kW. This makes it an ideal solution for home, commercial, and public charging stations seeking to offer faster AC charging speeds than single-phase alternatives. Full compliance with the IEC 62196-2 standard ensures broad compatibility and safe, reliable operation with all Type 2-equipped electric vehicles.
Built for superior safety and longevity, the plug features a durable thermoplastic housing that withstands daily use. The internal contact pins are precision-made from a high-grade copper alloy and are silver-plated to ensure maximum electrical conductivity and resistance to corrosion. With an IP65 rating, it is protected from dust and water ingress, making it suitable for both indoor and outdoor environments. The plug also meets the UL94V-0 flame retardancy standard and operates flawlessly in temperatures ranging from -30°C to 50°C.
Key Features:
- 13kW Fast AC Charging: Utilizes three-phase power for significantly reduced charging times.
- IEC 62196-2 Standard: Guarantees full compatibility with all Type 2 electric vehicles.
- Robust & Safe: UL94V-0 flame-retardant thermoplastic housing for maximum safety.
- All-Weather Performance: An IP65 rating ensures reliable operation in any environment.
- Superior Conductivity: Silver-plated copper alloy contacts provide excellent, low-resistance power transfer.
- Wide Temperature Range: Designed to perform reliably in climates from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-IEC2b-EV32P | |
| Product Series: | IEC Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Three Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 5X6mm²+ 1X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 415V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 13kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
IEC Standard AC Charging Type
IEC Type 2 Charging Connector Drawing
Applications of this IEC 62196-2 Type 2 AC Charging Plug for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
