IEC 62196-2 Type 2 AC Charging Plug for Electric Vehicle, Single Phase, 250V, 16A
Introduction
Introducing the IEC 62196-2 Type 2 AC Charging Plug, meticulously engineered for efficient and reliable electric vehicle charging. This single-phase connector is designed to meet the rigorous IEC 62196-2 standard, ensuring broad compatibility and safe power delivery for your EV. With a robust rated voltage of 250V and a current of 16A, it is capable of providing a maximum charging power of 4kW, making it an ideal solution for a variety of charging environments.
Durability and safety are paramount in the construction of this charging plug. It features a high-quality thermoplastic housing that offers excellent resistance against impact and wear. Internally, the contacts are precisely crafted from a premium copper alloy and are silver-plated to guarantee superior conductivity and exceptional corrosion resistance, ensuring a long operational lifespan and stable performance.
This connector is built to withstand diverse environmental conditions, boasting an IP65 protection class for full defense against dust and water ingress. An additional layer of safety is provided by its UL94V-0 flame-retardant rating. Furthermore, it operates reliably across a wide temperature range from -30°C to 50°C, and is equipped with a robust 3X2.5mm²+1X0.75mm² wire gauge to ensure efficient and secure power transfer with every charge.
Key Features:
- IEC 62196-2 Compliant: Adheres to international AC charging standards for universal compatibility.
- Robust Construction: Features a durable thermoplastic housing and silver-plated copper alloy contacts.
- Efficient Power Delivery: Provides up to 4kW charging with 250V and 16A ratings.
- Superior Safety Ratings: Certified with IP65 for dust and water protection, and UL94V-0 for flame retardancy.
- Wide Operating Temperature: Designed for reliable performance from -30°C to 50°C.
- Optimized Wiring: Utilizes a 3X2.5mm²+1X0.75mm² wire gauge for secure and efficient power transfer.
Main Specifications:
General Information:
| Part No.: | YC-IEC2e-EV16P | |
| Product Series: | IEC Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+1X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
IEC Standard AC Charging Type

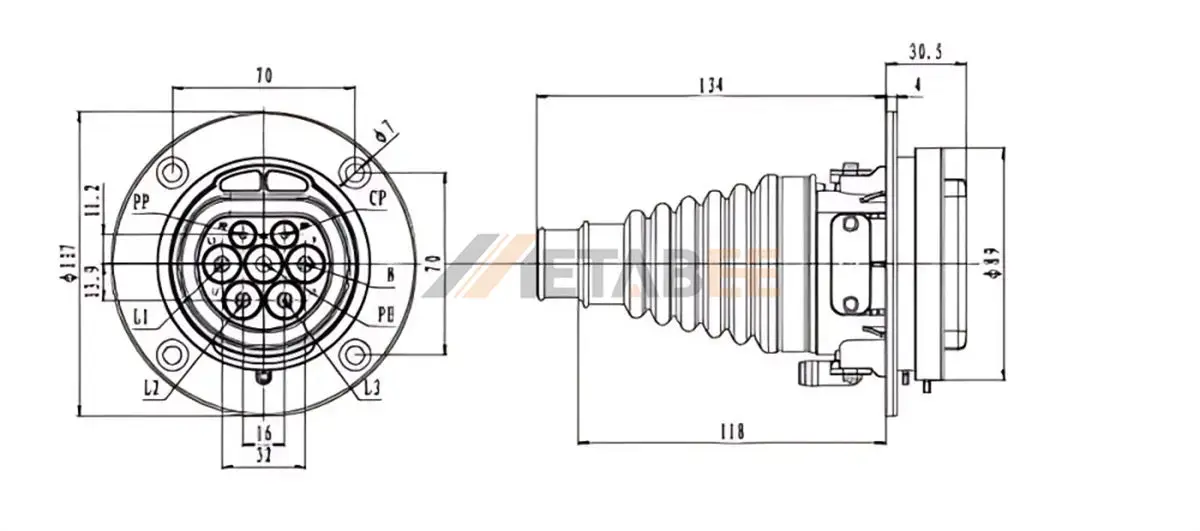

IEC Type 2 Charging Connector Drawing
Applications of this IEC 62196-2 Type 2 AC Charging Plug for Electric Vehicle:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
Factory pricing and exceptional product quality. Get a free quote now!
