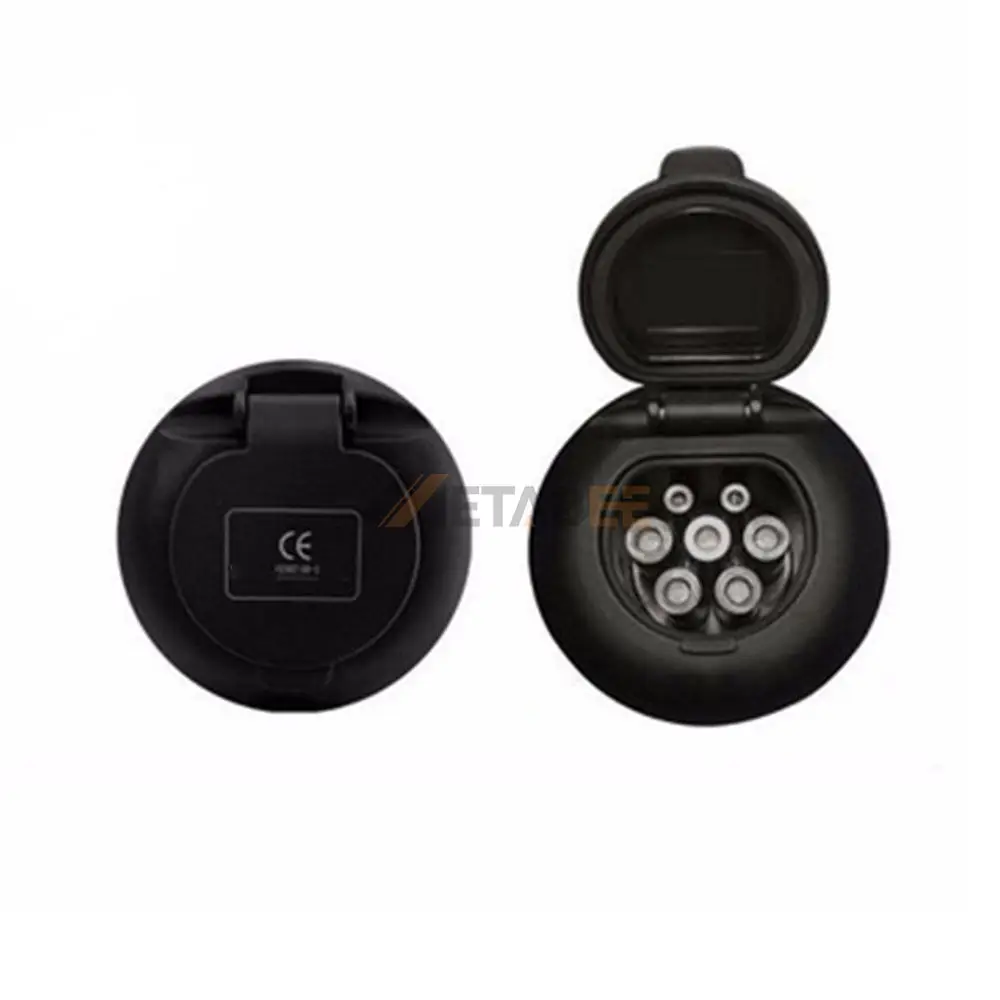

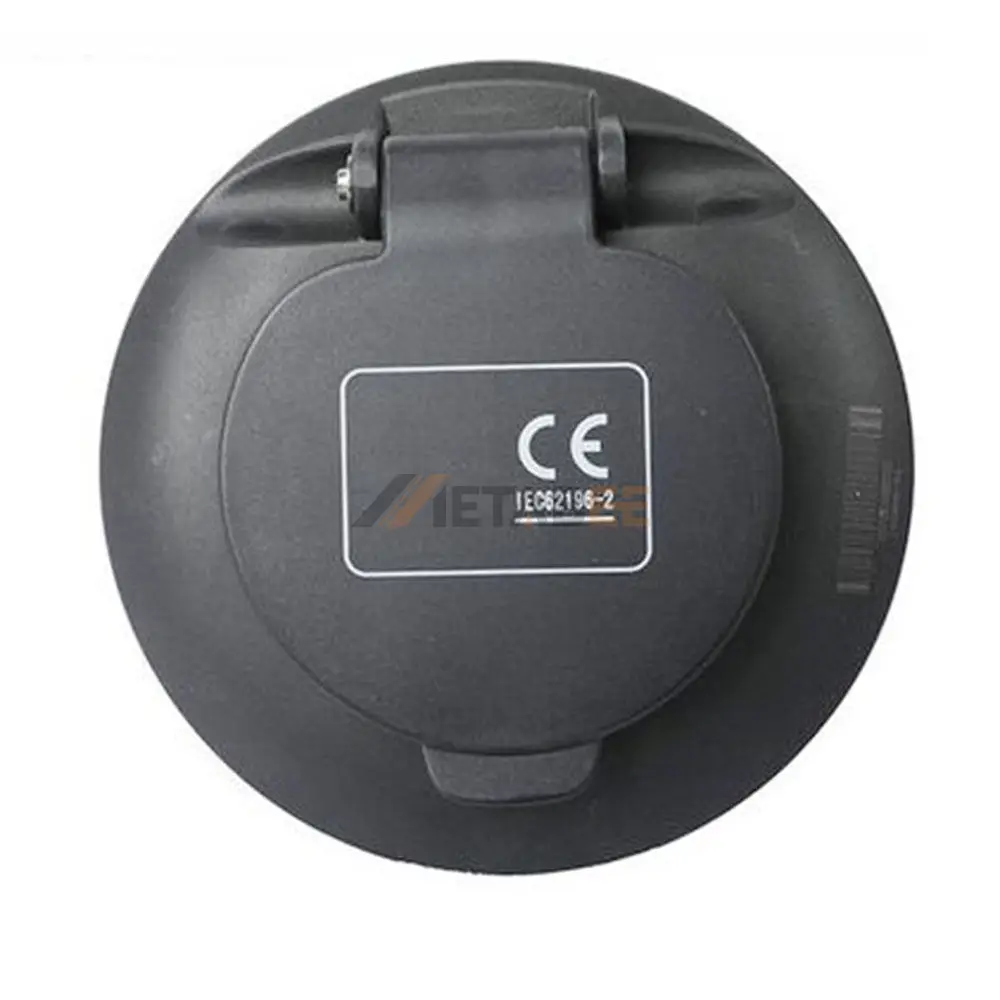

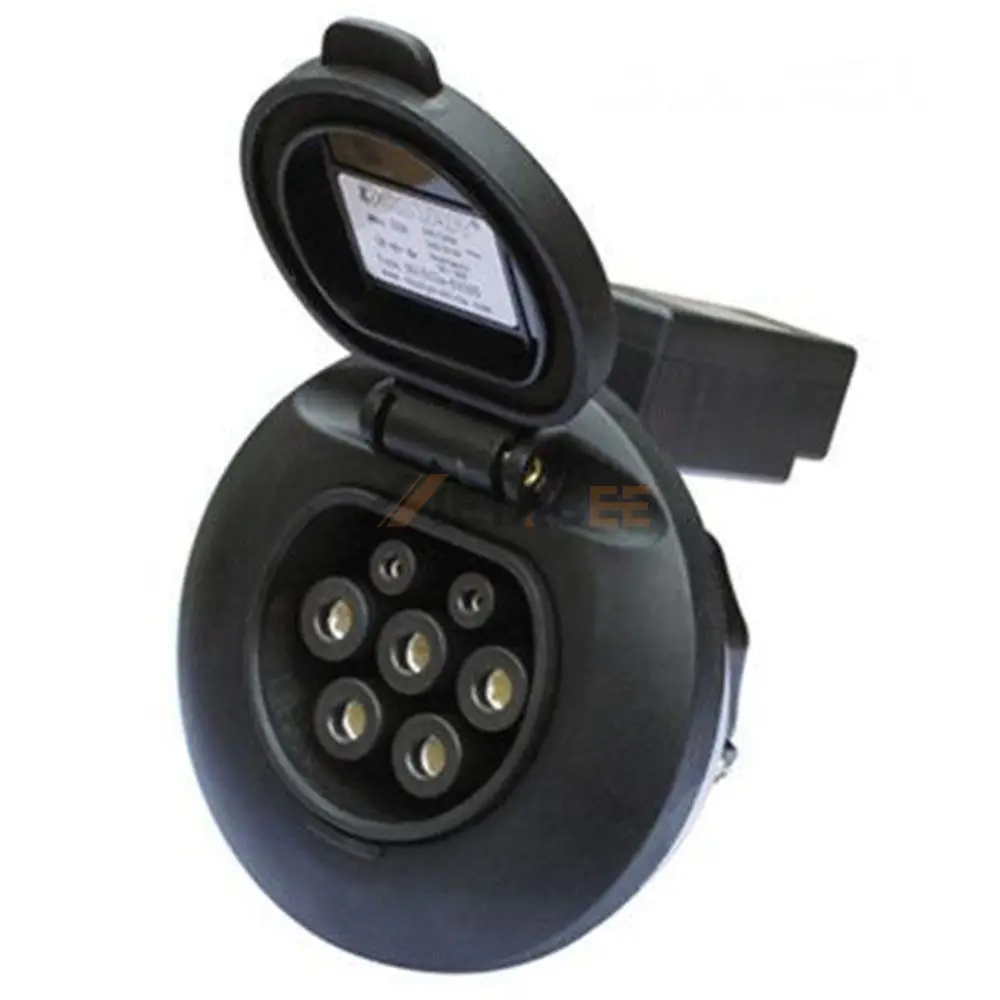

IEC 62196-2 Type 2 AC Charger, Socket for EV, Single Phase, 250V, 16A
Introduction
This IEC 62196-2 Type 2 EV charging socket is a reliable and standardized solution for single-phase AC charging. Engineered for safety and durability, it features a robust thermoplastic housing with excellent resistance to impact and environmental factors. The high-conductivity copper alloy contacts, finished with a silver-plated layer, ensure optimal electrical performance, minimal power loss, and long-term reliability with superior corrosion resistance.
Rated for 250V and 16A, this socket delivers a maximum charging power of 4kW, making it perfectly suited for residential, workplace, and public charging stations. It boasts an IP65 rating for complete protection against dust and water jets, alongside a UL94V-0 flame-retardant certification for enhanced safety. Designed for a wide operating temperature range from -30°C to 50°C, it accommodates a standard wire gauge of 3X2.5mm²+2X0.75mm² for secure and compliant installations in various climates.
Key Features:
- Standard Compliance: Fully compliant with IEC 62196-2 Type 2 (Mennekes) standard.
- Durable Build: Thermoplastic housing and silver-plated copper alloy contacts.
- Safe Charging: Rated for 250V/16A, delivering up to 4kW single-phase AC power.
- High Protection: IP65 rated for dust and water resistance.
- Enhanced Safety: UL94V-0 certified flame-retardant material.
- Wide Compatibility: Broad operating temperature range (-30°C to 50°C).
Main Specifications:
General Information:
| Part No.: | V2-YC-IEC2a-G-EV16S | |
| Product Series: | IEC Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Socket | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+1X0.75mm² | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
IEC Standard AC Charging Type
IEC Type 2 Charging Connector Drawing
Applications of this IEC 62196-2 Type 2 AC Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
