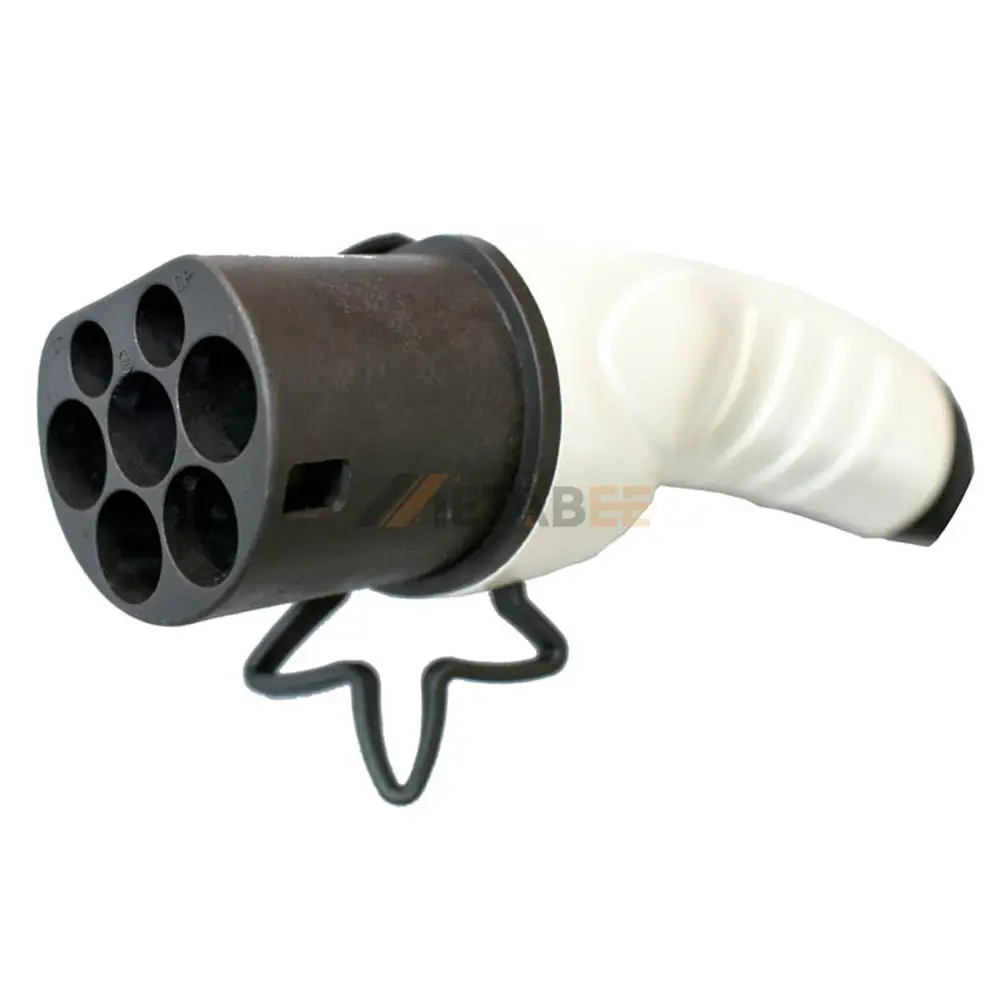

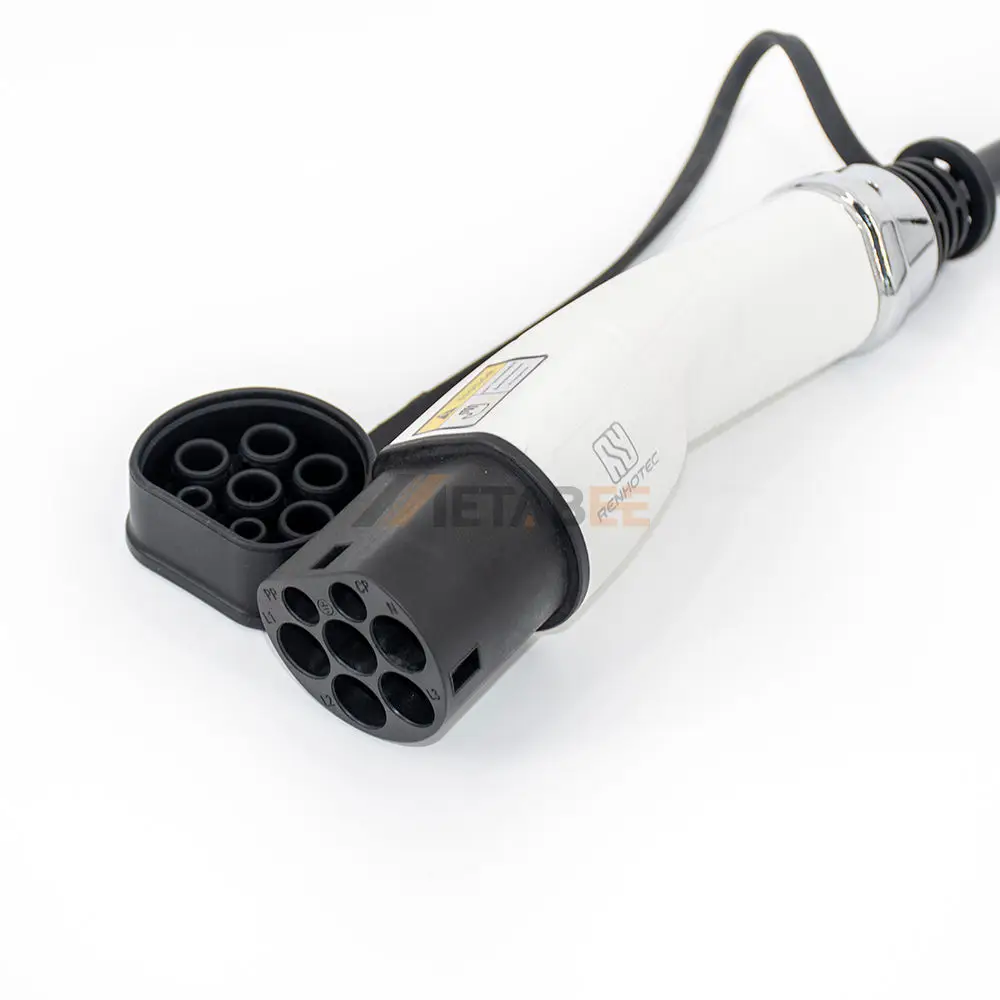

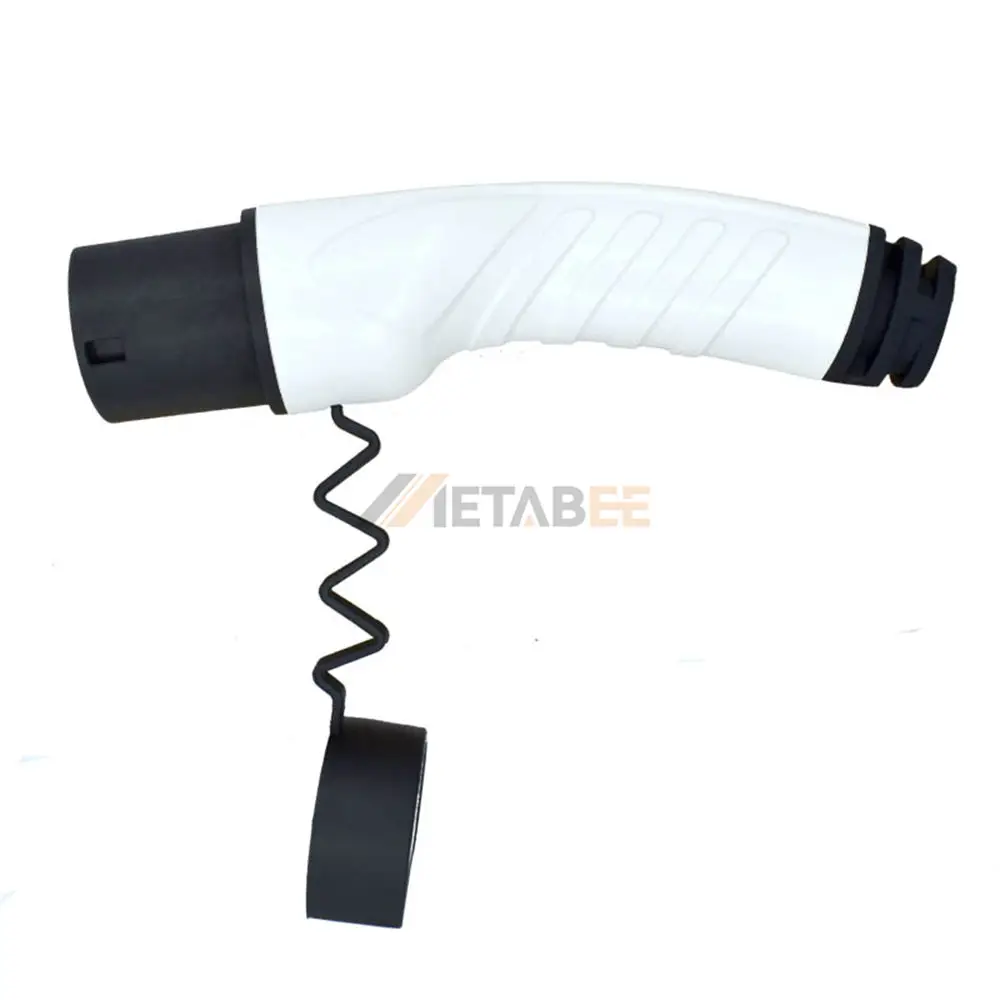

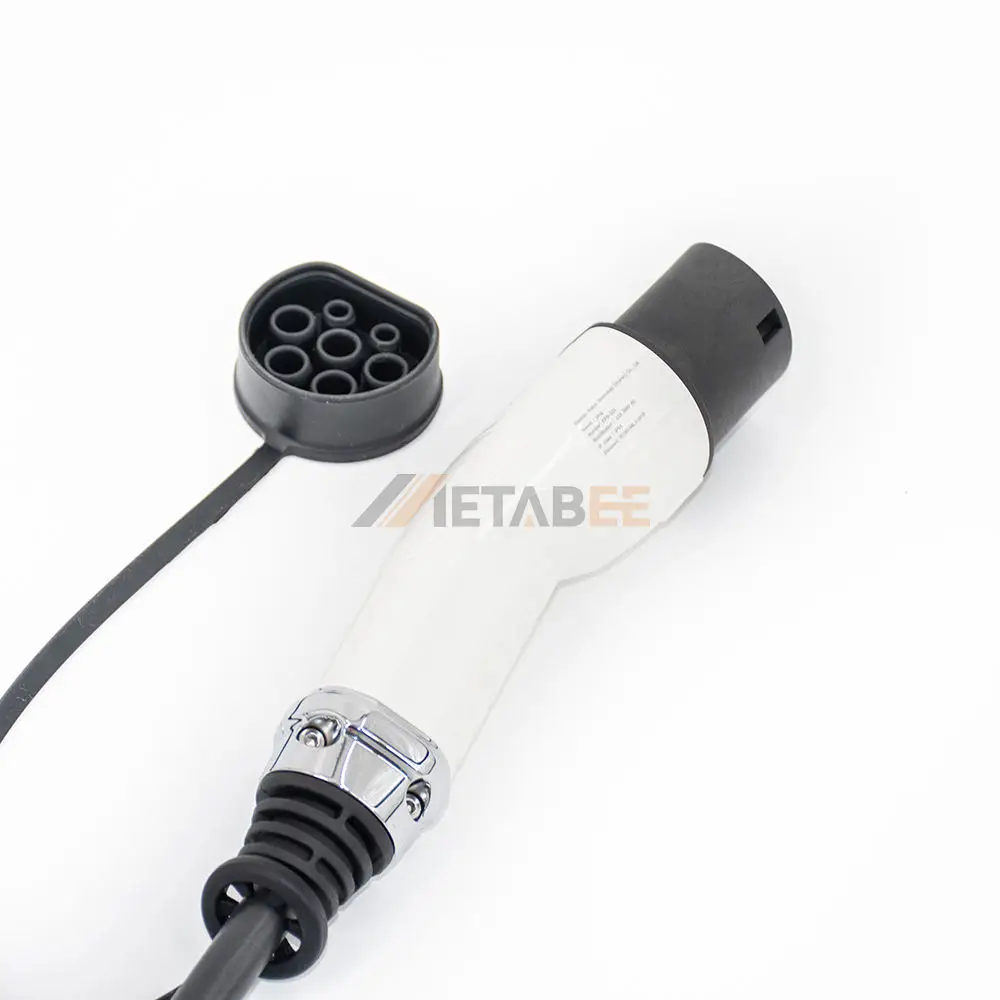

IEC 62196-2 Type 2 AC Charger, Plug for Electric Vehicle, Single Phase, 250V, 16A
Introduction
The IEC 62196-2 type 2 AC charger is engineered for reliable single-phase AC charging in residential and light commercial EV applications. Fully compliant with IEC 62196-2, this Type 2 plug ensures broad compatibility with European-standard electric vehicles and charging infrastructure. Rated at 250V and 16A, it delivers a maximum charging power of 4 kW, providing a stable and efficient charging experience.
Designed for durability and safety, the connector housing is manufactured from high-performance thermoplastic, while the contacts are made of silver-plated copper alloy to minimize contact resistance and enhance conductivity. The robust construction supports long-term operation under frequent plug-in cycles and demanding electrical loads, ensuring consistent performance over time.
With an IP65 protection rating and UL94 V-0 flame-retardant classification, this EV charging plug is suitable for both indoor and outdoor environments. It operates reliably across a wide temperature range from -30°C to +50°C. The specified wire gauge (3×2.5 mm² + 1×0.75 mm²) further guarantees safe current transmission and thermal stability, making it an ideal choice for OEMs, charging station manufacturers, and EV accessory suppliers.
Key Features:
- IEC 62196-2 compliant Type 2 AC charging plug
- Single-phase AC charging, 250V / 16A, up to 4 kW
- Silver-plated copper alloy contacts for low resistance
- Durable thermoplastic housing with UL94 V-0 rating
- IP65 protection for reliable outdoor use
- Wide operating temperature range: -30°C to +50°C
Main Specifications:
General Information:
| Part No.: | YC-IEC2b-EV16P | |
| Product Series: | IEC Standards AC Charging Connectors | |
| Brand: | Metabee | |
| Charging Standards: | IEC 62196-2 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Wire Gauge: | 3X2.5mm²+1X0.75mm² | |
| Color: | White | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 16A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >1000MΩ（DC500V) | |
| Max charging power: | 4kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
IEC Standard AC Charging Type
IEC Type 2 Charging Connector Drawing
Applications of this IEC 62196-2 Type 2 AC Charger:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
