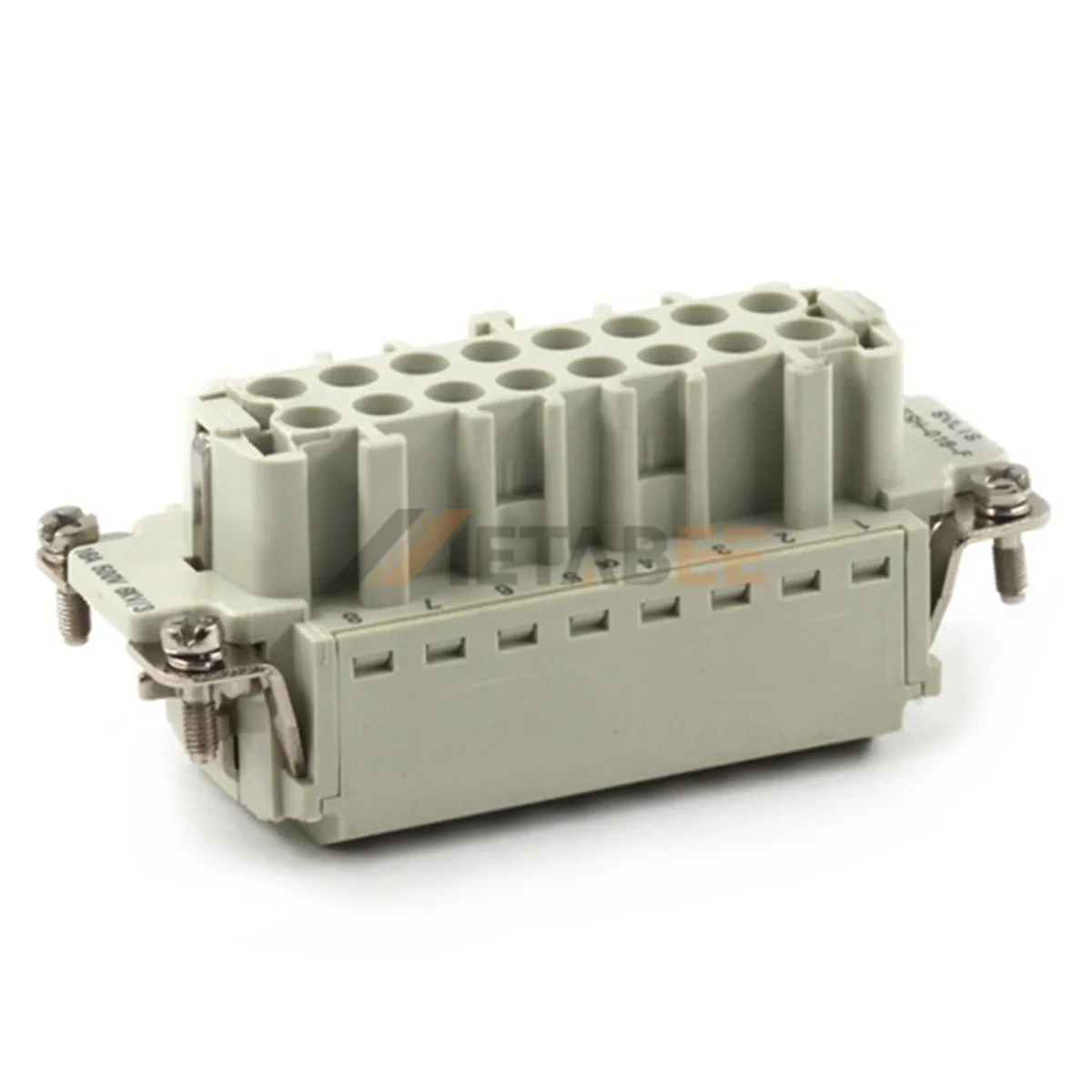

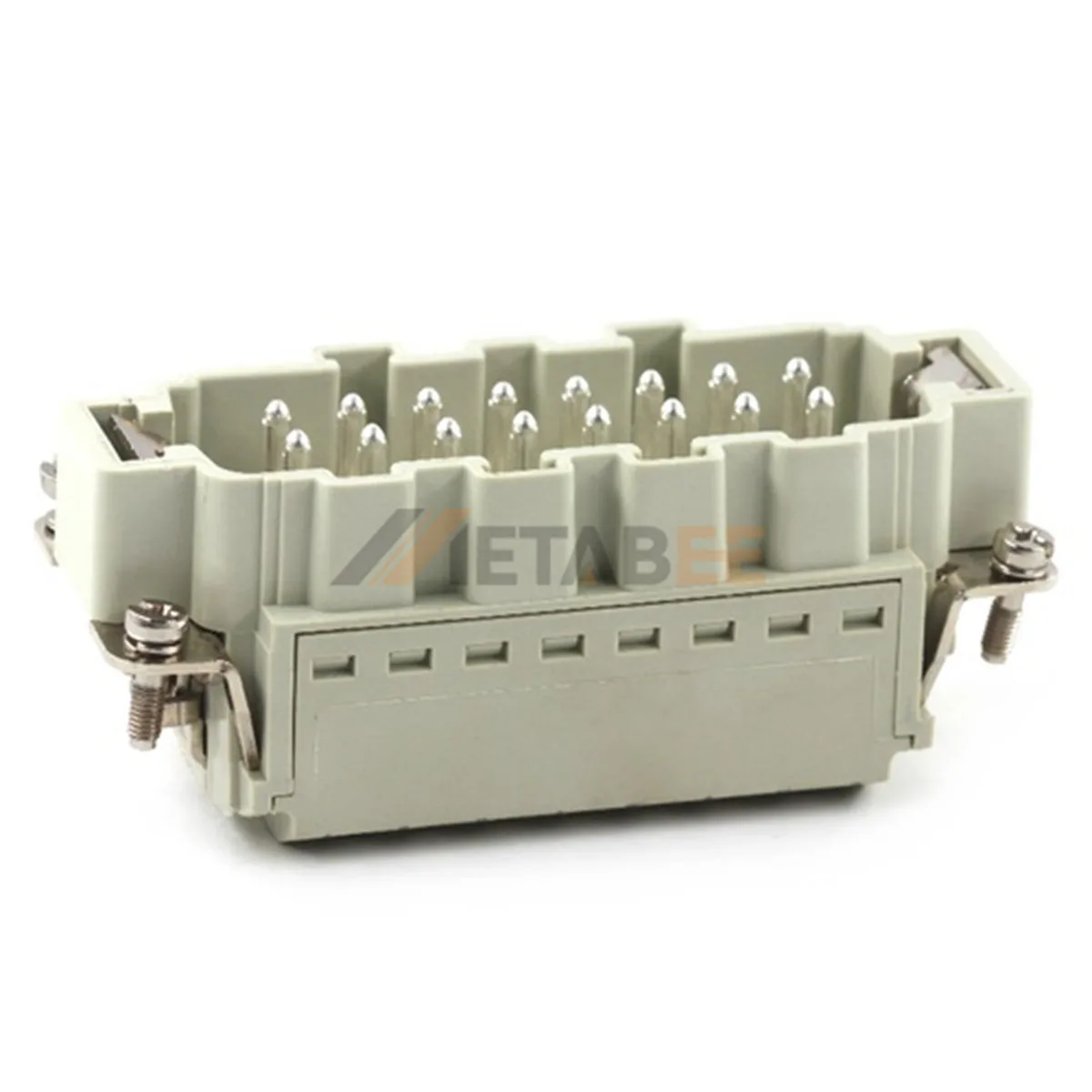

HESH-016 HE Series 16-Pin Male/Female Heavy Duty Connector Insert, 16+PE, Quick Lock Terminal
Introduction:
The insert uses a V0 flame-retardant material that meets the UL 94 V-0 standard. This insert is made from a specially processed polycarbonate (PC). This enhancement allows it to withstand a maximum working temperature of +125°C, ensuring reliability in high-heat industrial applications. Its internal conductive contacts use silver-plated copper alloy to deliver excellent electrical performance. The insert also includes a PE ground terminal that makes first contact during mating to ensure electrical safety.
To meet different production needs, inserts offer various termination methods for their conductive terminals. Common methods include screw terminal, crimp terminal, cage-clamp terminal, quick-lock terminal, and axial screw terminal.
Key Feature:
- Quick Lock Terminal: The quick lock wiring method allows for easy wiring without the use of tools and also allows for the flexible addition and removal of wire harnesses.
- PE Ground Terminal: The integrated Protective Earth (PE) contact provides essential grounding for user safety, connecting first and disconnecting last.
- Silver-Plated Copper Alloy Contacts: This premium material combination ensures maximum electrical efficiency and minimal heat generation for a durable and long-lasting connection.
- Wide Temperature Range: Operates flawlessly from -40°C to +125°C, guaranteeing consistent performance in demanding industrial environments with extreme heat or cold.
Note: The HESH-016 inserts are available in two numbers: 1-16 and 17-32. These two types share the same specifications, differing only in the numbering. A single insert fits a 16B housing, while two inserts used together require a 32B housing. Please purchase as needed.
Main Specifications:
General Information:
| Product No.: | HESH-016-M, HESH-016-F | |
| Category: | Heavy-Duty Connector Inserts and Modules | |
| Connector Product Type: | Inserts | |
| Connector Series: | HE Series | |
| Contact Gender: | Male/Female | |
| Number of Contacts: | 16+PE | |
| Termination methods: | Quick Lock terminal | |
| Suitable shell size: | 16B | |
| Wire Gauge: | 0.14-2.5 mm² | |
| AWG: | 26-14 |
Materials and Plating:
| Insert Material: | Polycarbonate | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plating |
Electrical Performance:
| Rated Current: | 16A | |
| Rated Voltage: | 500V AC | |
| Contact Resistance: | ≤ 1 mΩ |
Environmental Performance:
| Temperature Range: | -40℃ to +125℃ | |
| Pollution degree: | 3 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connectors
8 Series of Heavy-Duty Connector Inserts
Heavy-duty connector insert structure diagram (example)
Type of Example Image: HA-016-M/F
