Introduction:

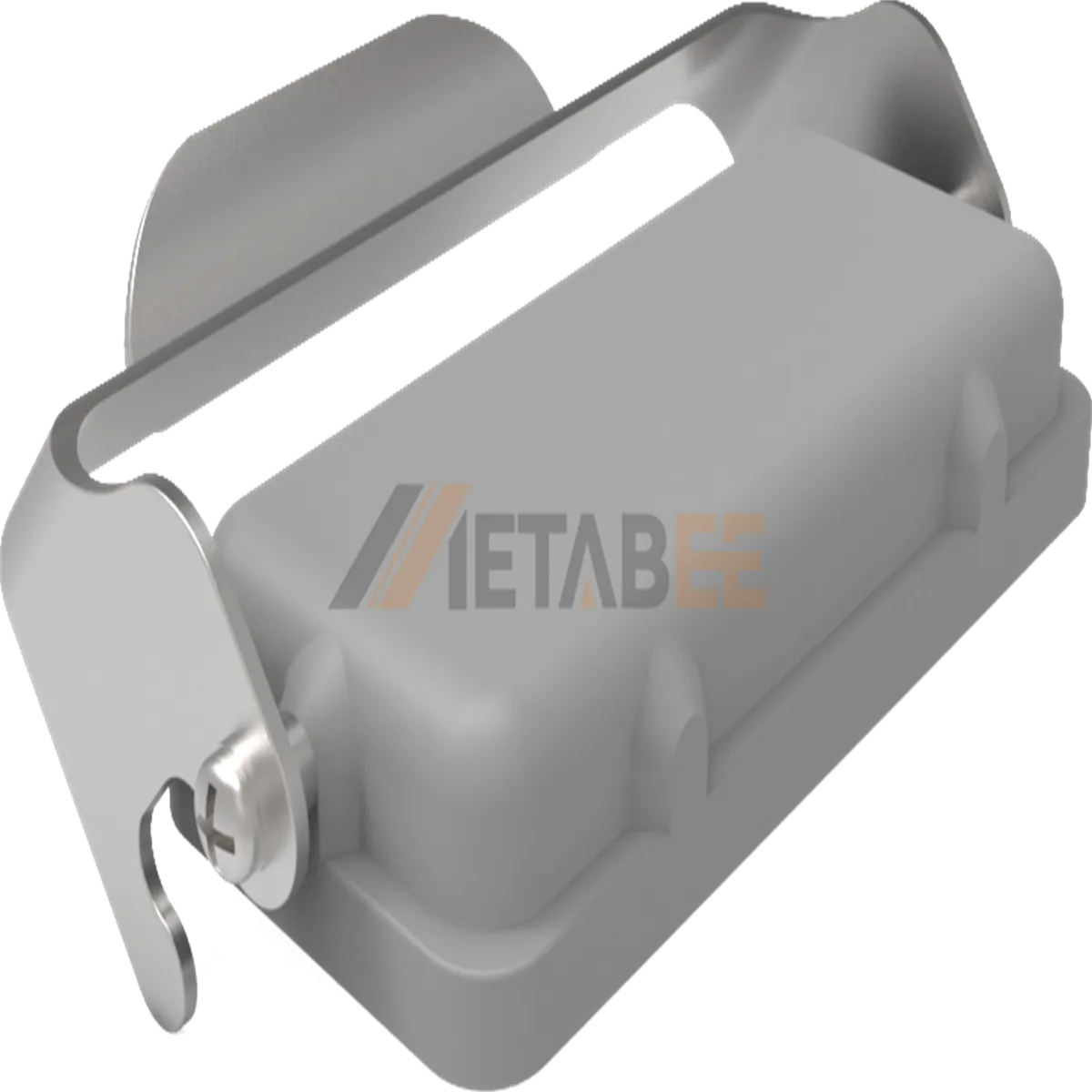

This heavy duty connector hood protection cover in size 16B provides a stable housing for cable entry and connector protection. It uses a die-cast aluminum shell that supports strong mechanical performance and consistent shielding. The cover features a single locking lever that secures the mating housing and keeps the connection firm during operation. The lever is available in nickel-plated iron, stainless steel, and plastic. Each option offers different durability levels to fit various installation needs. The 16B size follows standard heavy duty connector dimensions and supports simple assembly. The internal space allows clear cable routing and effective strain control. Its compact structure helps reduce external impact and supports reliable connector operation.
Main Specifications:
General Information:
| Product No.: | H16B-KDT-LB, H16B-KDT-LBS | |
| Category: | Heavy-Duty Connector Accessories | |
| Connector Product Type: | Hoods Protection Covers | |
| Connector Series: | H16B Series | |
| Housing/Hood Size: | 16B | |
| Locking Types: | 1 Locking Lever | |
| Cover Material: | Polycarbonate | |
| Surface: | N/A | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
