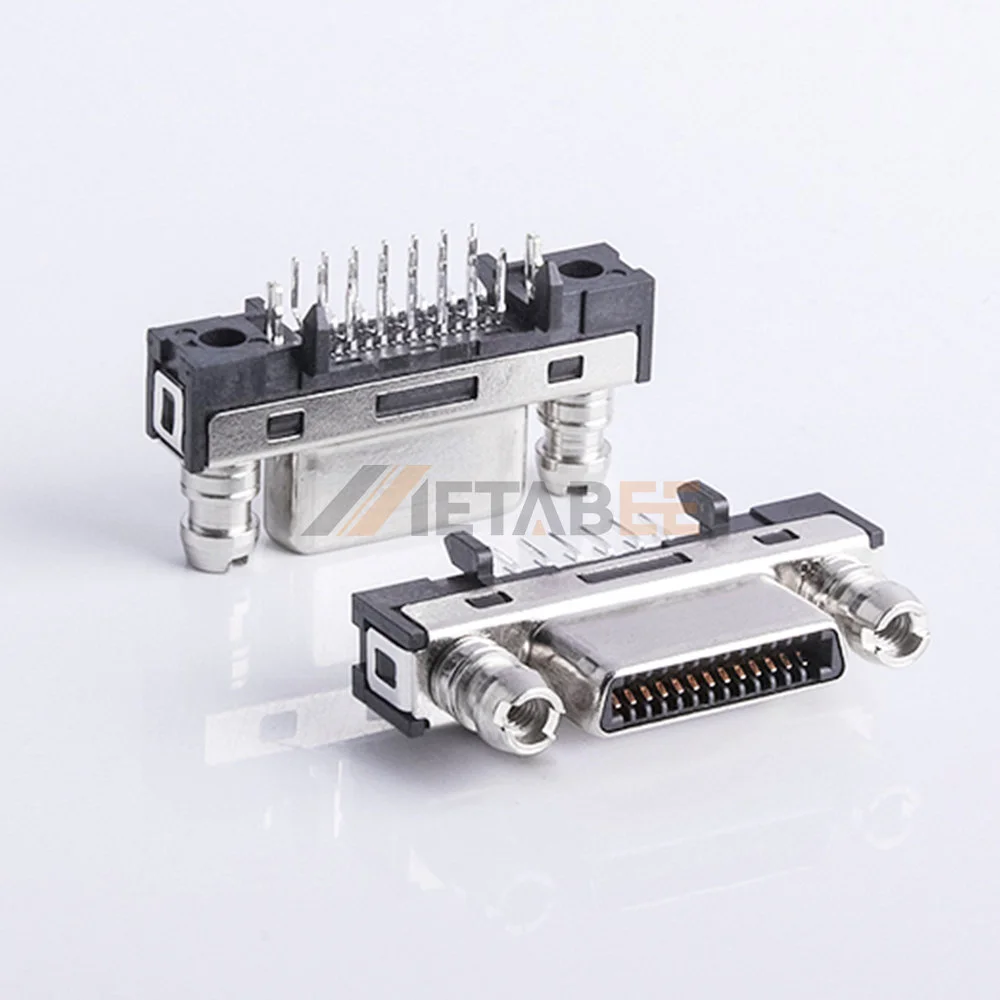

HDR-EC26FDTG2-SLD+ 26 Pin Straight Through Hole HDR Female Connector for Camera Link, Solder, Screw Lock
Introduction:
The HDR-EC26FDTG2-SLD+ is a high-performance 26-pin straight through-hole HDR female connector designed for Camera Link applications. With a 0.80mm pitch, this connector ensures reliable signal transmission in demanding environments. Its screw lock mechanism provides a secure and stable connection, while the solder cup termination guarantees strong electrical bonding. The connector features a steel shell with nickel plating, offering durability and corrosion resistance, while the phosphor bronze contacts with gold plating ensure low contact resistance (≤70mΩ) and excellent conductivity. Rated for 0.5A current, it maintains high insulation resistance (≥500MΩ) and operates in a wide temperature range of -40°C to +70°C.
Ideal for industrial and imaging applications, this DIP-mounted connector is built for long-term reliability. The tin-plated solder tails enhance solderability, while the straight orientation simplifies PCB integration. Its silver-colored nickel-plated shell provides both aesthetic appeal and functional protection. Whether used in medical imaging, machine vision, or high-speed data transfer systems, this connector delivers consistent performance under rigorous conditions.
Features:
- 26-pin female connector for Camera Link
- 80mm pitch, straight through-hole design
- Screw lock mechanism for secure mating
- Steel shell with nickel plating (silver color)
- Phosphor bronze contacts with gold plating
- Solder cup termination, tin-plated solder tails
- Rated 0.5A, ≤70mΩ contact resistance, ≥500MΩ insulation
- Operating temperature: -40°C to +70°C
Main Specifications:
General Information:
| Part Number: | HDR-EC26FDTG2-SLD+ | |
| Product Type: | HDR Camera Link Connector | |
| Brand: | Metabee | |
| Connector Type: | HDR | |
| Connector Series: | 0.80mm | |
| Number of Contacts: | 26 Pin | |
| Gender: | Female | |
| Orientation: | Straight | |
| Mount Method: | DIP | |
| Termination Method: | Solder | |
| Lock Type: | Screw Lock | |
| Operation Temperature: | -40℃ to +70℃ | |
| Durability: | up to 500 cycles |
Electrical Performance:
| Contact Current Rating: | 0.5A / Terminal | |
| Contact Voltage Rating: | AC 125V (r.m.s.) | |
| Insulation Resistance: | 500 MΩ or more at DC 250V | |
| Contact Resistance: | 70 mΩ Maximum | |
| Dielectric Voltage: | 500V AC for 1 Minute |
Materials and Plating:
| Insulator Material: | PA9T | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Gold Plated | |
| Shell Material: | Steel | |
| Shell Finish: | Nickel Plated |
Applications of this HDR-EC26FDTG2-SLD+ 26 Pin Straight Through Hole HDR Female Connector:
Here are common application scenarios for SCSI connectors:
- Data Storage Systems
- Server Environments
- Enterprise Backup Solutions
- High-Performance Computing (HPC)
- Medical Imaging Equipment
- Broadcast and Video Production
- Industrial Automation
- Legacy Systems Maintenance
- Network Attached Storage (NAS)
