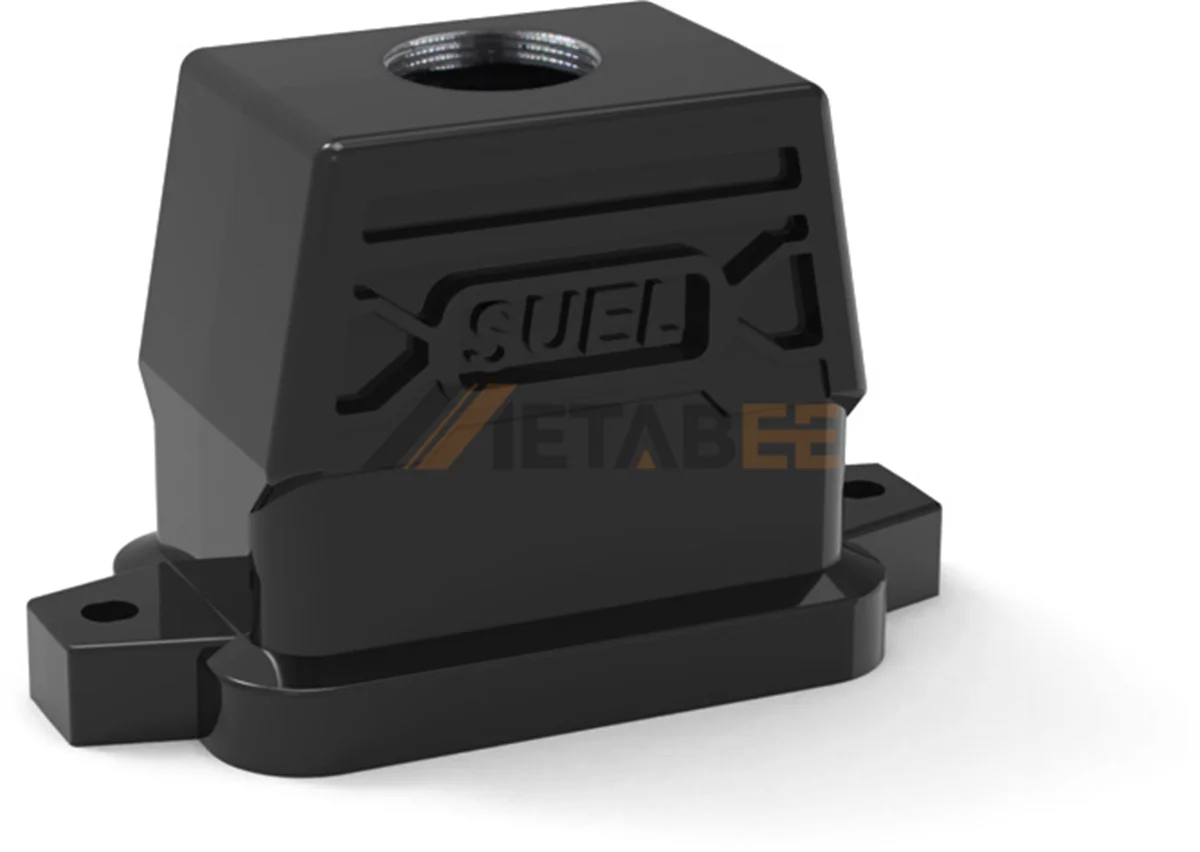

H10B Series Heavy Duty Connector Hood, Top Entry, Size 10B, IP68
Introduction:
The heavy-duty connector hoods are available in ten standard sizes: 3A, 10A, 16A, 32A, 6B, 10B, 16B, 24B, 32B, and 48B. They are made of aluminum die-cast material and provide reliable IP65 protection. Each hood features a robust locking interface and a built-in sealing gasket to ensure a secure connection with the matching housing. Multiple cable-entry directions and thread sizes are available to support different wiring layouts and installation needs.
This H10B hood is rated IP68 for complete dust and water immersion protection. The dual-bolt locking mechanism creates a powerful mechanical seal with the housing. This prevents accidental disconnection and maintains the integrity of the seal. It features a top entry for the cable, ensuring durability in the most demanding conditions.
Main Specifications:
General Information:
| Product No.: | HP10B-TS | |
| Category: | Heavy-Duty Connector Housings, Hoods | |
| Connector Product Type: | Hoods | |
| Connector Series: | H10B Series | |
| Housing/Hood Size: | 10B | |
| Cable Entry Angle: | Top Entry | |
| Thread Size: | PG13.5, PG16, PG21, M20, M25 | |
| Locking Components: | 2 Bolts | |
| Housing/Hood Material: | Die-cast aluminum | |
| Hood Finish: | Powder Coated | |
| Temperature Range: | -40℃ to +125℃ | |
| IP Rating: | IP65 | |
| Flammability Rating: | UL94 V-0 |
Structure of Heavy-Duty Connector
Hoods and Housings Example Diagram
Applications
- Control cabinets and panels;
- Factory automation systems;
- Robotics and motion systems;
- Heavy equipment connections;
- Conveyor and assembly lines.
