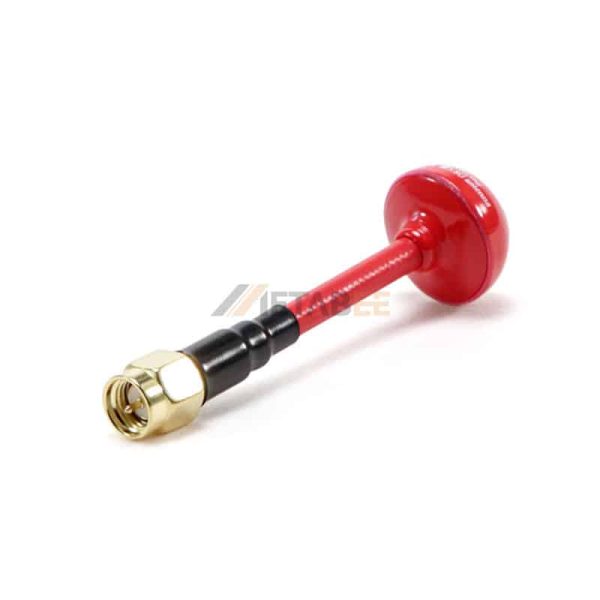

FPV Antenna with Cable

Metabee Antenna Certificate
Get Quotation Chat Online

Provide OEM / ODM Services : Such as antenna size / connector / frequency and the cable length etc.

FPV (First Person View) antennas are used in the field of remote control and aerial photography. FPV systems allow pilots to control a drone or other remote-controlled aircraft while viewing in real time what the drone is seeing through a video feed wirelessly transmitted from the drone to a display device on the ground.

FPV antennas play a key role in ensuring the video feed remains clear and stable.

In conclusion, FPV antennas are an essential part of any remotely controlled aircraft system, enabling pilots to safely and efficiently navigate and control the aircraft while capturing high-quality video footage.

Metabee FPV Antenna Product Introduction

Products Feature

Real-time Feedback
FPV antennas provide real-time video feedback, allowing pilots to see what the drone sees in real-time. This enables pilots to navigate the drone with greater accuracy and confidence.

Size and weight

FPV antennas need to be compact and lightweight to be mounted on drones or other remote-controlled vehicles.

High Precision
FPV antennas enable pilots to control the drone with greater precision, allowing for more accurate movements and better control over camera movements and other features.

High Frequency Range
5.8GHz、2.4GHz FPV antennas can capture high-quality video footage, providing clear and stable video feeds that can be used for photography, videography, and other applications.

Application

Metabee FPV Antenna Product Application

Aerial Photography and Videography: FPV antennas are used by photographers and filmmakers to capture stunning aerial footage of landscapes, buildings, and events.

Search and Rescue: FPV antennas are used in search and rescue operations to locate missing persons or to survey disaster areas.

Racing: FPV antennas are used in drone racing competitions to provide real-time video feeds to pilots, allowing them to navigate courses at high speeds.

Agriculture: FPV antennas are used in agriculture to monitor crops and livestock, allowing farmers to detect problems early and take corrective action.

Product Name

FPV Antenna

Frequency Range

2400-2500MHz, 5100-5950MHz

Gain (dBi)

2-14dBi

V.S.W.R

≤2

Bandwidth

100-MHz

Operating Voltage

3-36V

Impendence

50Ω

Polarization Type

RHCP

Radiation

Omnidirectional

Antenna Connector

MCX, MMCX, N, BNC, SMA, TNC, Customized

Cable Type

RF1.13, RF1.37, RG174, RG178, RG58, Customized

Cable Length

5cm, 10cm, 20cm, 50cm, Customized

Material

ABS, CU, PC, TPE

Color

Red, Black, Customized

Operating Temperature

– 30~+ 70 ℃

Storage Temperature

– 30~+ 75 ℃
