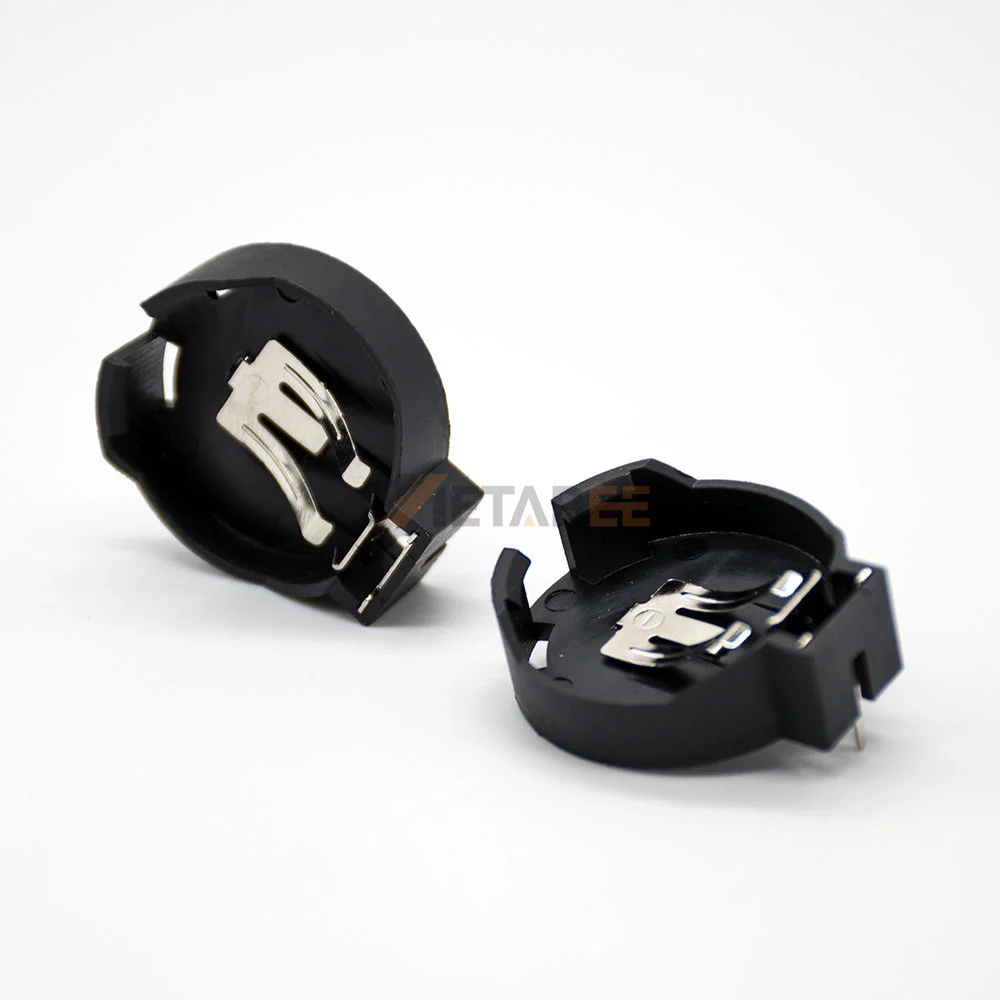

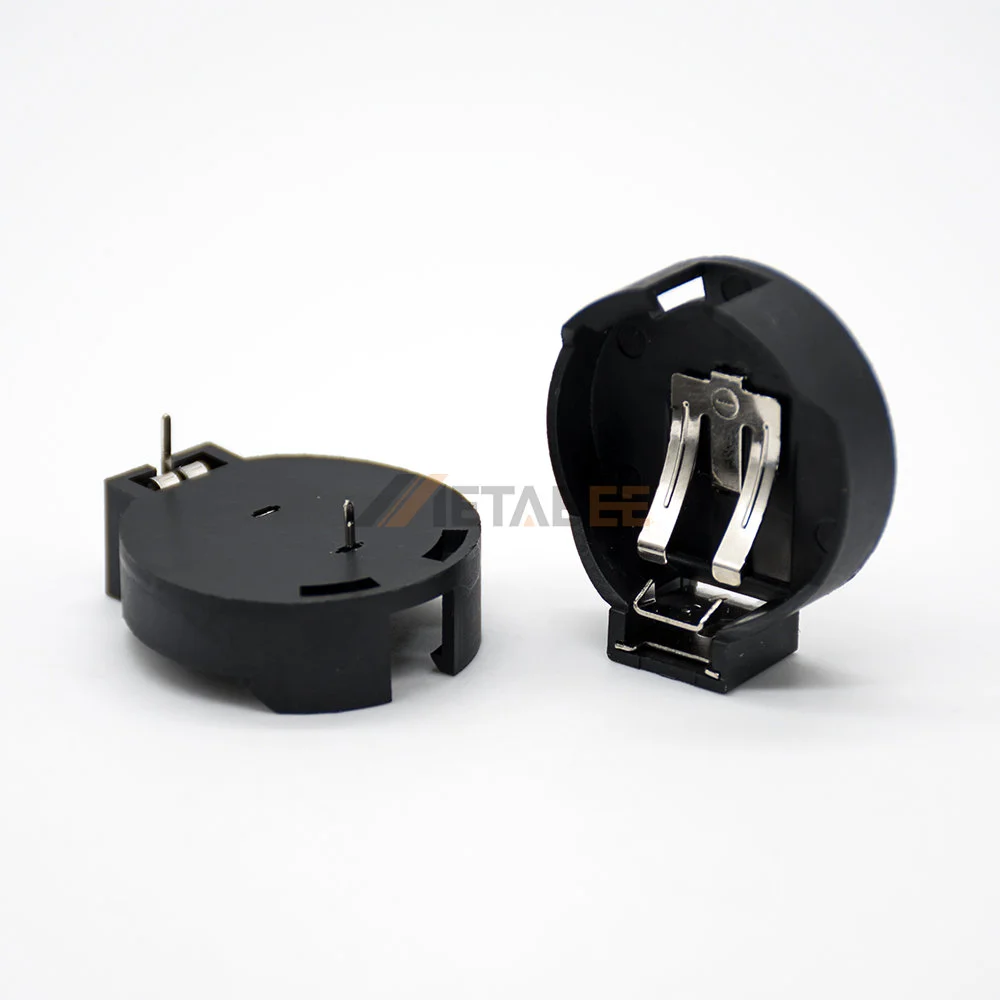

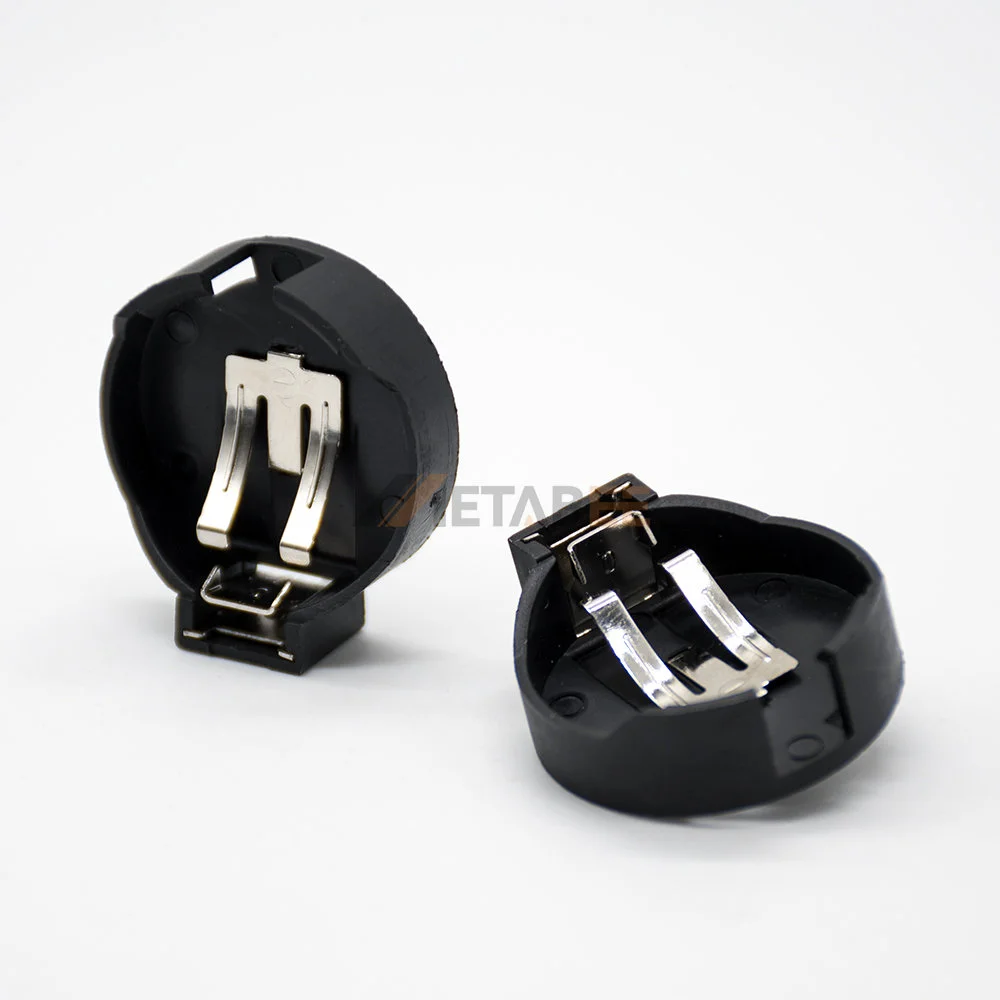

CR2450 Coin Cell Battery Holder for PCB Mount, DIP, 24mm, Black
Introduction:
This compact CR2450 coin cell battery holder is a reliable solution for your PCB-based applications. Designed for DIP (Dual In-line Package) PCB mounting, it ensures a secure and stable connection for your 24mm batteries. The holder is made from durable, heat-resistant LCP (Liquid Crystal Polymer) in a sleek black finish. Its through-hole design allows for easy integration into your circuit boards, while the robust contacts ensure low resistance and excellent conductivity. Ideal for memory backup, consumer electronics, and medical devices.
Features:
- Securely holds one CR2450 battery.
- DIP through-hole PCB mount type.
- Durable, heat-resistant LCP material.
- Low resistance, excellent conductivity.
- Compatible with 24mm coin cells.
Main Specifications:
| Part Number: | YC-BS-24-A1AJ004 | |
| Product Type: | Coin Cell Battery Holder | |
| Applied Battery Type: | CR2450 | |
| Shell Material: | PBT | |
| Contact Material: | Phosphor Bronze | |
| Contact Finish: | Ni Plating | |
| Contact Resistance: | 100 MILLIOHMS MAX | |
| Insulation Resistance: | 100 MEGAOHMS MIN | |
| Dielectric Voltage: | 500V AC ONE SEC LEVEL | |
| Operation Temperature: | -25℃ to +85℃ |
Applications of this CR2450 Coin Cell Battery Holder
- Small electronics: calculators, digital watches and clocks, remote controls
- Medical and Health Devices: hearing aids, glucose meters, thermometers
- Toys and Novelties: LED-powered novelties, electronic toys, singing greeting cards
- Computer and Memory Backup: motherboards, data loggers, memory backup
