78 Pin D-Sub Female Connector for Cable Type, Solder Cup, 2.29mm Pitch, Machined Contacts

78 Pin D-Sub Female Connector for Cable Type, Solder Cup, 2.29mm Pitch, Machined Contacts

Introduction:

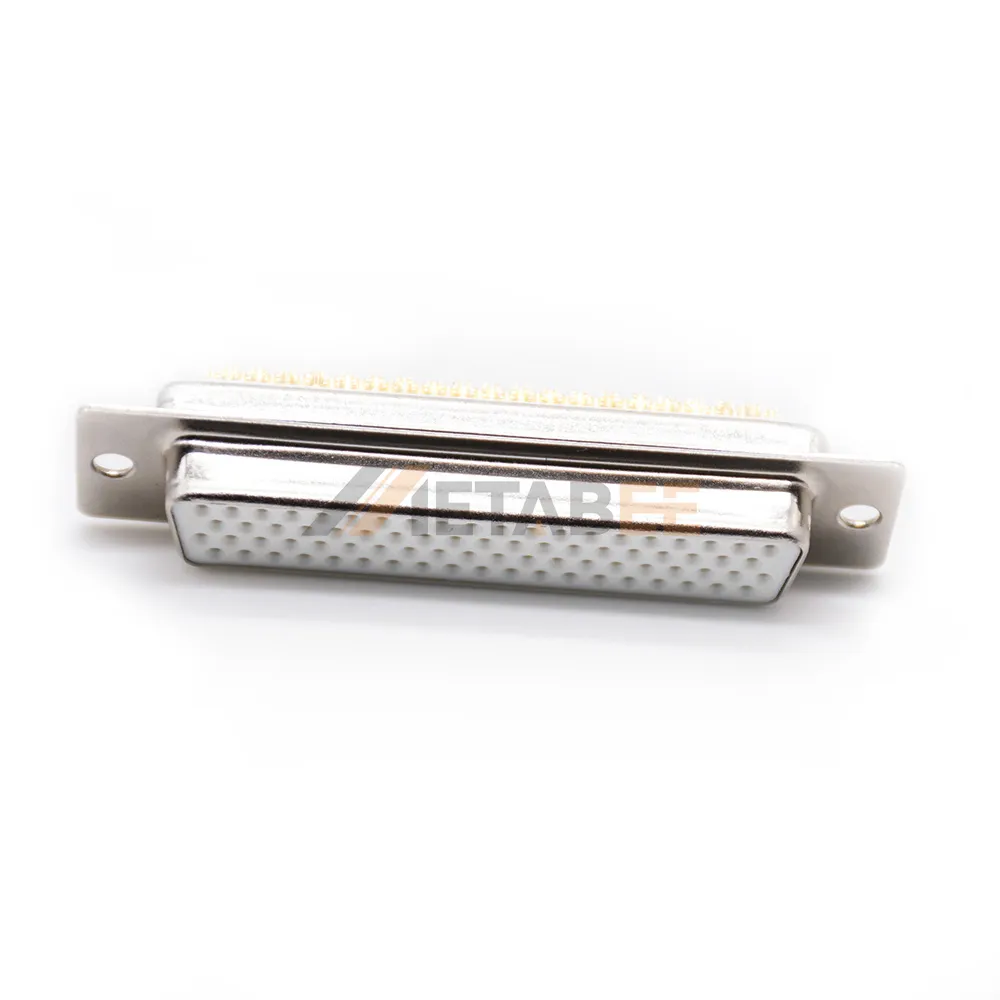

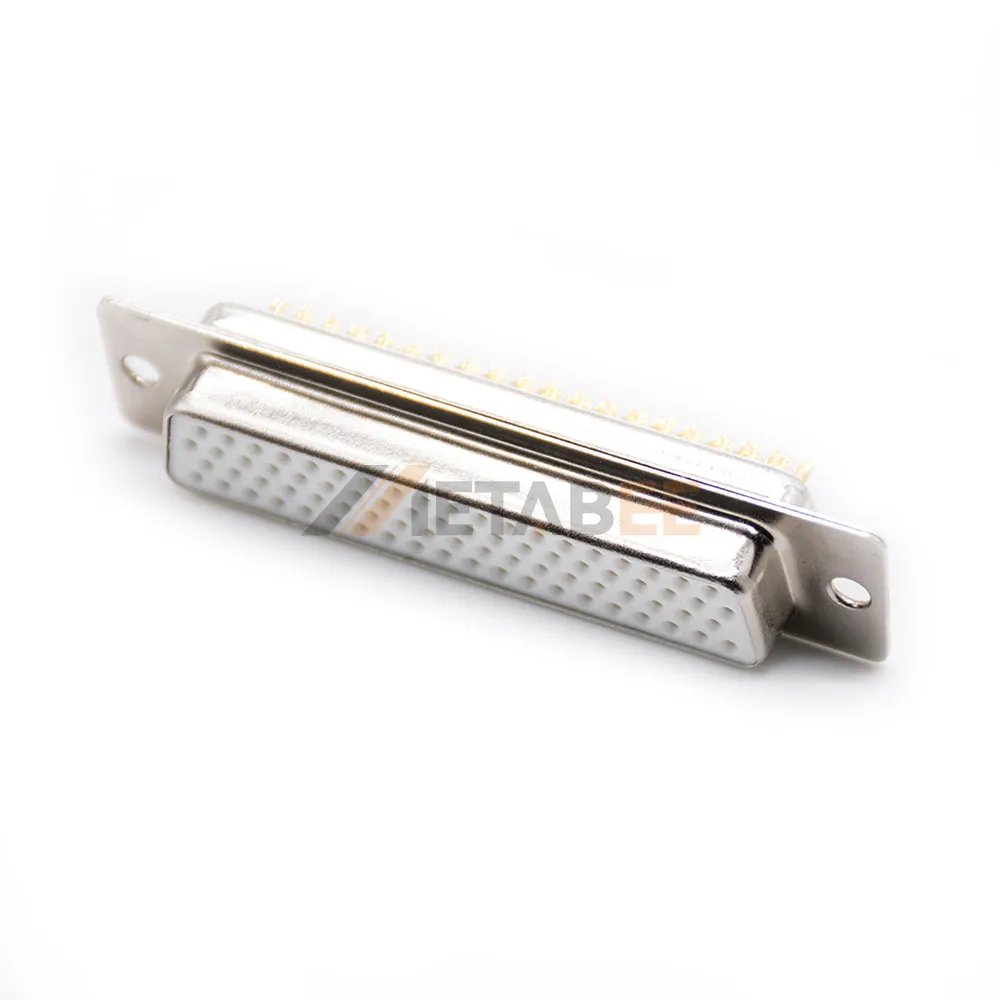

This 78 pin D-sub female connector provides a high-density solution for complex I/O applications. It is engineered for cable mounting, featuring solder cup terminals for a secure, permanent connection of individual wires. This connector is built with high-quality machined contacts, offering superior durability and a more reliable connection than standard stamped types, which is critical for high pin count interfaces. Its gold-plated contacts ensure excellent signal integrity. With a rugged steel shell for protection, it’s an ideal choice for medical devices, industrial control systems, and specialized data communication equipment.

This 78 pin D-sub female connector has many great features, including:

• High-Density: Offers a compact solution for applications requiring a high number of signal lines.
• Solder Cup Termination: Allows for direct, secure soldering of individual wires for custom cable assemblies.
• Machined Contacts: Provides superior durability and a more reliable connection for critical, high-mating-cycle use.
• Cable Mount Design: Designed to be mounted directly on a cable, perfect for building custom I/O harnesses.
• Gold-Plated Contacts: Ensures excellent conductivity and long-term corrosion resistance across all pins.
• Durable Steel Shell: A strong nickel-plated housing offers robust physical protection and EMI shielding.

Main Specifications:

General Information:

Materials and Plating:

Electrical Performance:

Environmental Performance:

Applications of this 78 pin D-sub female connector:

• Multi-Port Serial Adapters;
• Data Acquisition (DAQ) Systems;
• Test & Measurement Equipment;
• Legacy Multi-Monitor Video Output;
• Telecommunications & Networking;
• Custom Prototyping and Repair;

Factory pricing and exceptional product quality. OEM & ODM Services. Get a free quote now!
