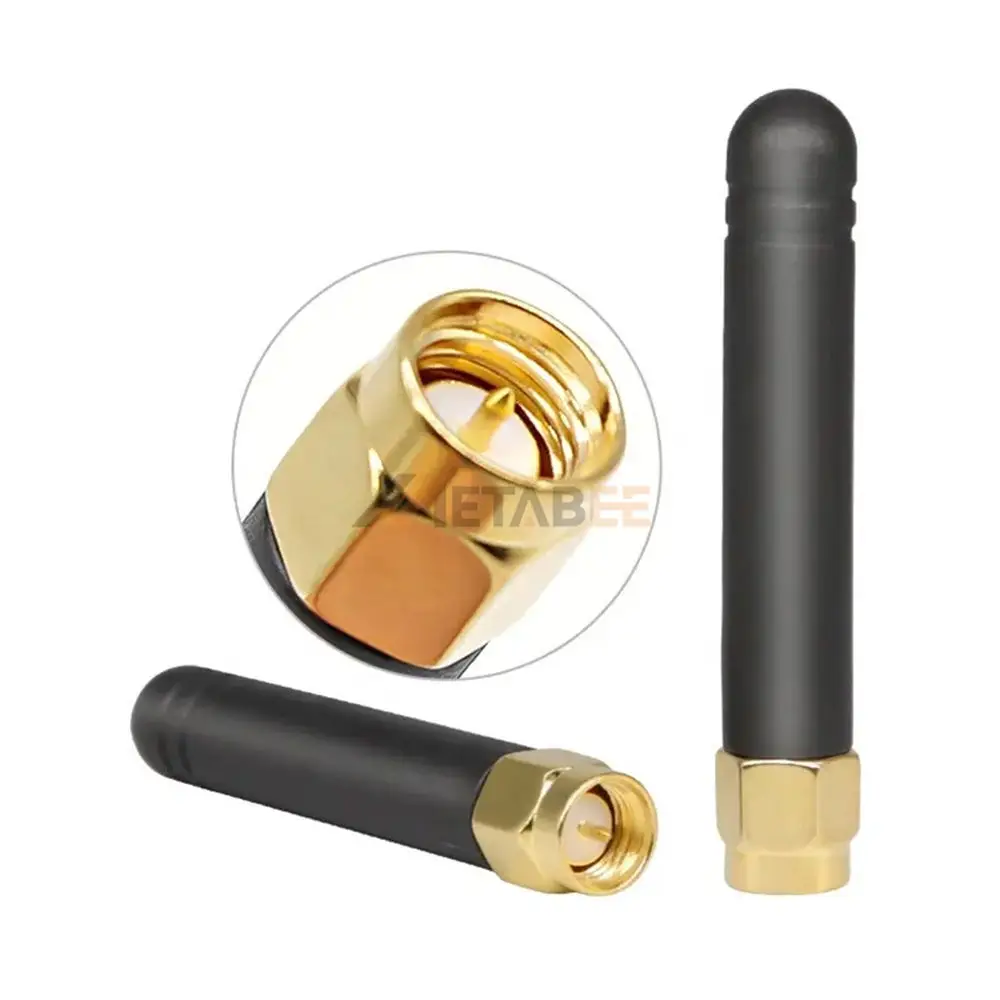

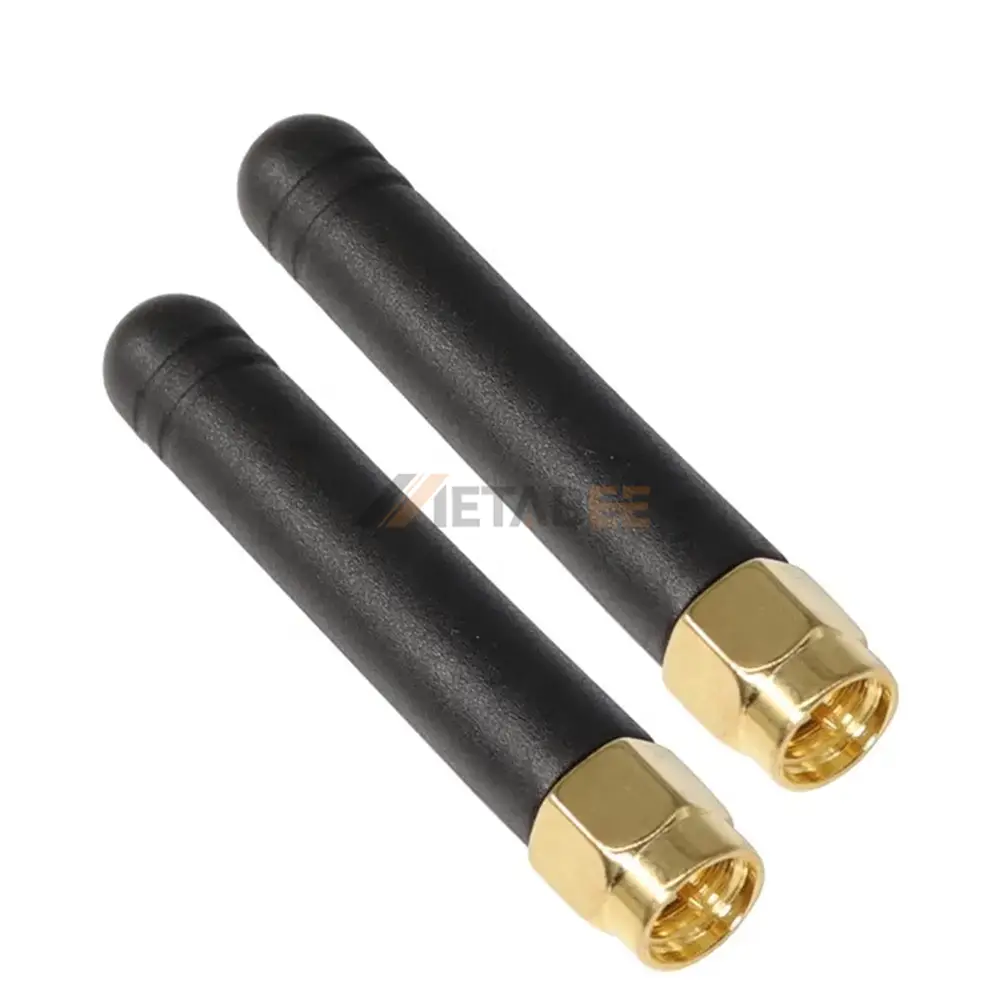

433 MHz 3dBi Rubber Duck Antenna with SMA Male Connector
Introduction:
The 433 MHz 3dBi Rubber Antenna with SMA Male Connector is a compact and reliable RF antenna designed for wireless communication systems operating at 433 MHz frequency. With a 3dBi gain and vertical polarization, this antenna provides stable omnidirectional signal coverage for applications such as remote control systems, IoT devices, smart meters, wireless modules, and two-way communication equipment.
Featuring a 50 Ohm impedance and ≤1.92 VSWR, this rubber duck antenna ensures efficient signal transmission and reduced signal loss. The SMA Male connector enables easy installation and compatibility with various RF devices. With a maximum input power of 50W and an operating temperature range of -20°C to 70°C, it delivers consistent performance in diverse environments.
Key Features
- 433 mhz frequency range for reliable wireless communication
- 3dbi gain for enhanced signal coverage and performance
- Vertical polarization with omnidirectional radiation pattern
- Sma male connector for convenient installation and compatibility
- ≤1.92 vswr and 50 ohm impedance for efficient transmission
- 50w maximum power handling with -20°c to 70°c operating temperature
General Information:
| Product No.: | YC-EX20015 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Straight | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 433 MHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 433 MHz 3dBi Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
