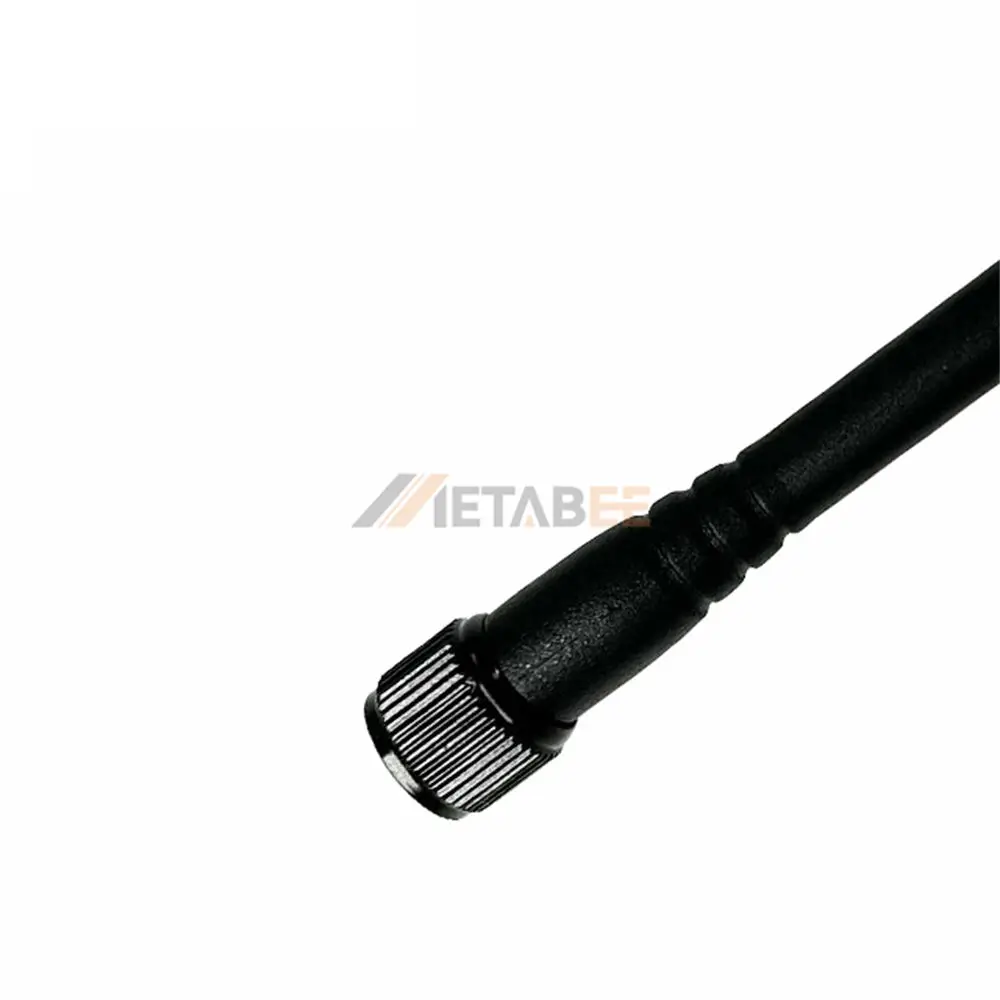

2.4G/5.8G 2dBi External Rubber WiFi Antenna, Vertical Polarization
Introduction:
Optimize your wireless network with the 2.4G/5.8G 2dBi external rubber WiFi antenna, designed for superior signal reception and transmission across both 2.4 GHz and 5.8 GHz frequency bands. This compact yet powerful antenna provides enhanced connectivity and extended range for a multitude of wireless devices, making it an ideal solution for modern networking requirements where reliable dual-band performance is crucial. It ensures stable and consistent wireless operation in diverse environments.
Engineered for efficient performance, this antenna delivers a consistent 2dBi gain across both operating frequencies, effectively boosting signal strength for improved coverage and network stability. An impressively low voltage standing wave ratio (VSWR) of ≤1.92 guarantees minimal signal reflection and maximum power transfer, optimizing overall operational effectiveness. With vertical polarization and a standard 50 Ohm impedance, it seamlessly integrates into existing wireless infrastructures. The antenna is constructed for durability, functioning reliably across a wide temperature range from -20 °C to 70 °C and is capable of handling a maximum input power of 50W.
This external rubber WiFi antenna offers a dependable, robust, and versatile solution for optimizing dual-band wireless communication, ensuring high-quality connectivity for various applications requiring reliable network access.
Key Features
- Dual-Band Capability: Operates on both 2.4 GHz and 5.8 GHz for versatile network support.
- Consistent 2dBi Gain: Provides reliable signal amplification for improved wireless coverage.
- High Efficiency: An ultra-low VSWR of ≤1.92 ensures minimal signal loss and optimal power transfer.
- Robust Temperature Tolerance: Functions reliably across a broad temperature range from -20 °C to 70 °C.
- Vertical Polarization: Ensures stable and effective signal transmission.
- Standard Impedance: Maintains 50 Ohm impedance for seamless integration with wireless systems.
General Information:
| Product No.: | YC-EX20064 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | Customized | |
| Antenna Orientation: | Straight | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 2dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4G/5.8G 2dBi External Rubber WiFi Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
