2.4 GHz 5dBi Tilt Swivel Flat Rubber Duck Antenna with SMA Male
Introduction:
Enhance your 2.4 GHz wireless communication with the 5dBi Tilt Swivel Flat Rubber Duck Antenna, specifically engineered for robust signal acquisition and transmission. This antenna is designed to significantly improve connectivity and extend the range of your wireless devices, making it an essential upgrade for various applications requiring dependable 2.4 GHz performance.
Featuring a 2.4 GHz frequency range and a substantial 5dBi gain, this antenna ensures optimal signal strength and stability. Its vertical polarization, coupled with an impressively low VSWR of ≤1.92, minimizes reflection loss, maximizing power transfer efficiency. Built to withstand demanding conditions, it operates effectively within a temperature range of -20 °C to 70 °C and handles a maximum input power of 50W, maintaining a standard 50 Ohm impedance. The integrated SMA Male connector guarantees broad compatibility and facilitates quick, secure installation. This antenna offers a reliable and efficient solution for bolstering your wireless infrastructure, delivering consistent and high-quality connectivity.
Key Features
- High Gain: 5dBi gain amplifies signal strength for extended coverage.
- Optimal Frequency: Tuned for 2.4 GHz, ensuring stable and clear wireless data.
- Low VSWR: ≤1.92 VSWR for minimal signal loss and enhanced efficiency.
- Vertical Polarization: Standard vertical polarization for consistent signal orientation.
- Durable Design: Operates reliably from -20 °C to 70 °C in diverse environments.
- SMA Male Connector: Industry-standard connector for wide device compatibility.
General Information:
| Product No.: | YC-EX20011 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |

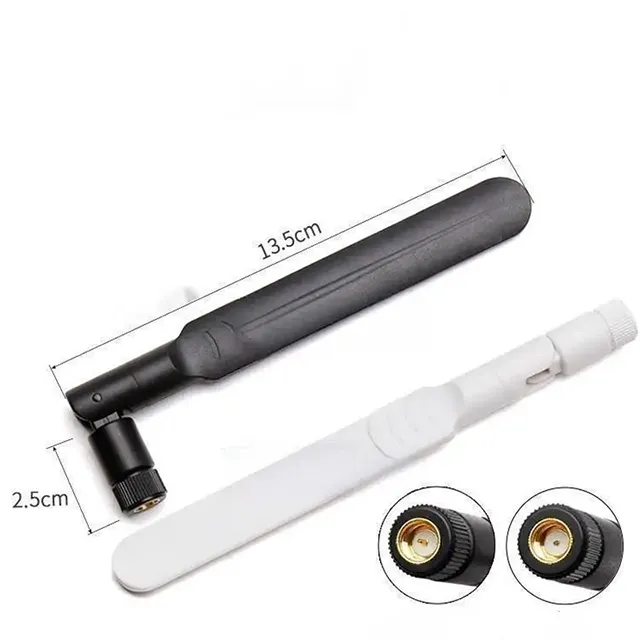

| Dimensions: | Customized | |
| Color: | Black or White | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4 GHz 5dBi Tilt Swivel Flat Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
Factory pricing and exceptional product quality. Get a free quote now!
