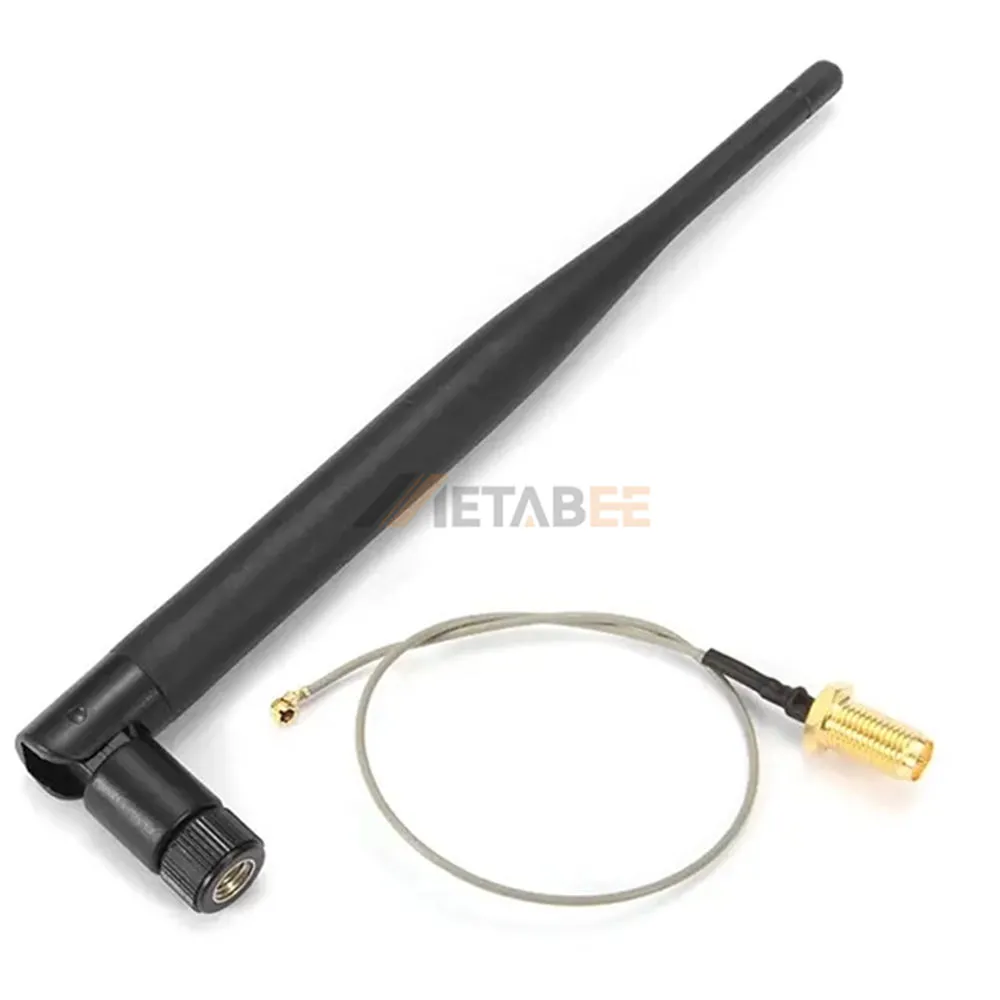

2.4 GHz 5dBi Swivel Rubber WiFi Antenna with SMA Male
Introduction:
Upgrade your wireless network performance with the 2.4 GHz 5dBi swivel rubber WiFi antenna. Built for reliable signal transmission, this omnidirectional antenna enhances wireless coverage across local area networks, routers, and IoT devices. Its flexible swivel design allows precise positioning to minimize signal interference and maximize efficiency.
Engineered for seamless integration, the robust housing protects internal components against tough environments. Featuring a standard SMA male connector, it delivers a stable 50 ohm impedance connection for fast plug-and-play installation. This cost-effective solution solves weak connectivity issues, ensuring uninterrupted data flow for critical wireless applications.
Key Features
- Optimal frequency: Designed specifically for 2.4 GHz wireless networks.
- 5dBi high gain: Delivers strong omnidirectional coverage and signal stability.
- Low VSWR: Maintains standard VSWR of ≤1.92 to prevent signal loss.
- SMA male connector: Fits standard wireless equipment with 50 ohm impedance.
- Swivel design: Adjusts easily to any angle for maximum reception.
- Rugged durability: Operates reliably in temperature ranges from -20 °C to 70 °C.
General Information:
| Product No.: | YC-EX20047 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4 GHz 5dBi Swivel Rubber WiFi Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
