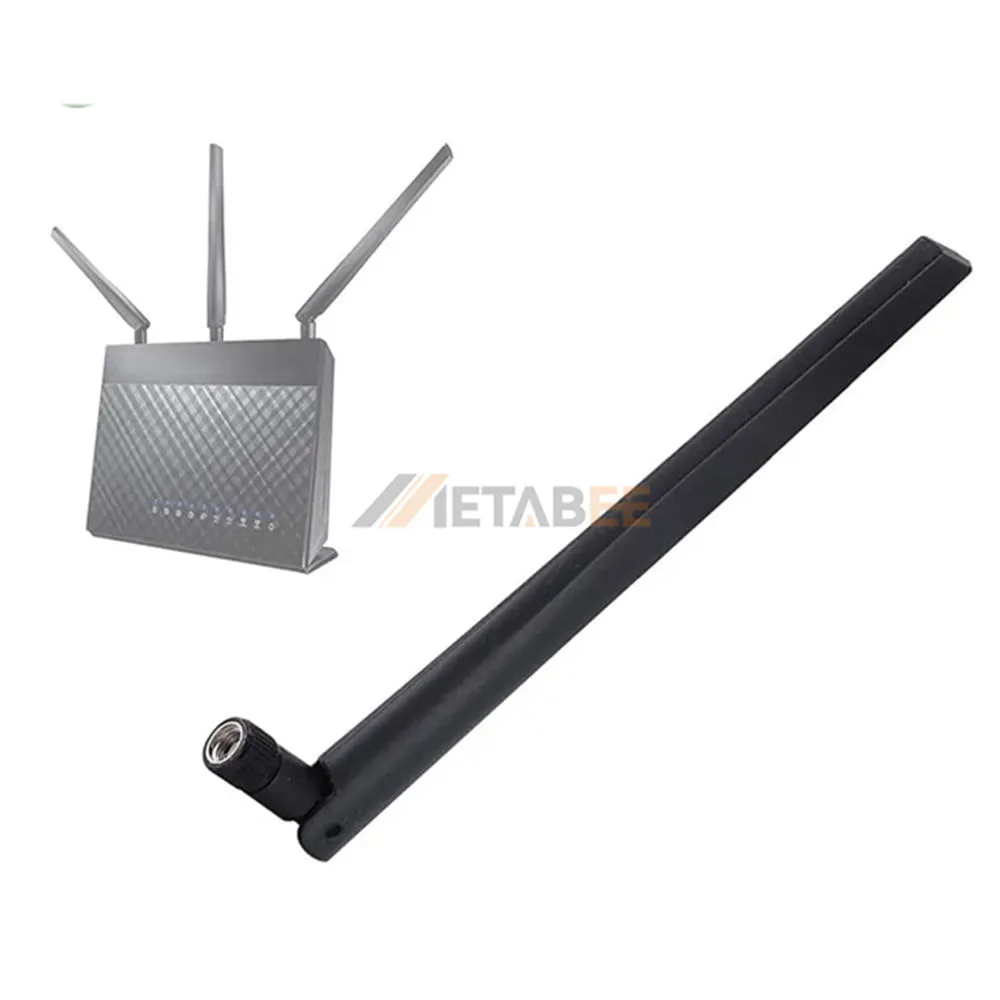

2.4 GHz 5dBi Swivel Rubber Duck WiFi Antenna with SMA Male
Introduction:
Elevate your wireless network performance with the 2.4 GHz 5dBi Swivel Rubber Duck WiFi Antenna, featuring an SMA male connector. This antenna is engineered to significantly boost signal strength and coverage for devices operating within the 2.4 GHz frequency band, ensuring more stable connections and reduced interference. It presents an ideal upgrade for various applications, from enhancing home WiFi to improving industrial IoT device communication, where reliability and extended range are paramount.
Designed for optimal efficiency, this antenna boasts a 5dBi gain, providing a powerful signal output that helps overcome obstacles and extend connectivity into previously underserved areas. Its low voltage standing wave ratio (VSWR) of ≤1.92 ensures maximum power transfer from your device to the antenna, minimizing signal loss. With vertical polarization and a 50 Ohm impedance, it integrates seamlessly into standard wireless setups. The robust construction allows for reliable operation across a wide temperature range, from -20 °C to 70 °C, ensuring consistent performance in diverse environmental conditions.
The convenience of the SMA male connector facilitates quick and secure installation, making it a versatile choice for a multitude of wireless access points, routers, and other compatible devices. This antenna combines high-performance specifications with practical design, delivering a superior solution for stable and expansive 2.4 GHz wireless coverage.
Key Features
- Powerful Signal Boost: The 5dBi gain significantly amplifies your 2.4 GHz wireless signal, extending coverage.
- Optimized Performance: An impressively low VSWR of ≤1.92 ensures efficient power transfer and minimal signal degradation.
- Robust Connectivity: Operating within the 2.4 GHz frequency range, it provides stable and reliable wireless communication.
- Durable Design: Engineered to perform consistently in temperatures ranging from -20 °C to 70 °C, it suits various environments.
- Standard Compatibility: Equipped with an SMA male connector, it offers broad compatibility with numerous wireless devices.
- Efficient Polarization: Features vertical polarization, a standard for clear and effective signal transmission.
General Information:
| Product No.: | YC-EX20001 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4 GHz 5dBi Swivel Rubber Duck WiFi Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
Factory pricing and exceptional product quality. Get a free quote now!
