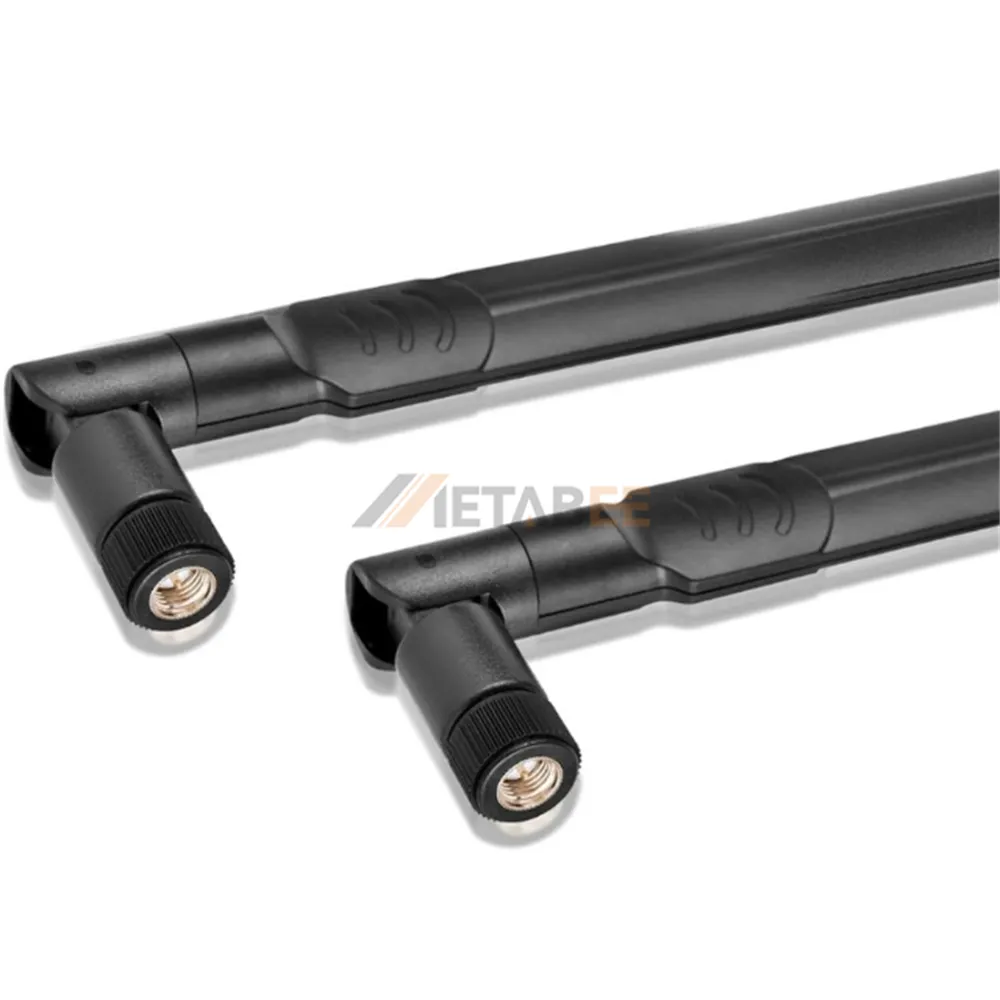

2.4 GHz 2dBi Tilt Swivel Rubber Duck Antenna for WiFi, SMA Male
Introduction:
2.4 ghz 5dbi swivel rubber duck wifi antenna with rg178 cable, sma male delivers flexible, high-performance signal enhancement for 2.4 ghz wireless systems. Its swivel joint allows you to adjust the antenna angle for optimal reception, while the 5 dbi gain effectively extends network range and reduces blind spots. With a vertical polarization, low vswr of ≤1.92, and 50 ohm impedance, this antenna ensures clean, efficient rf transmission with minimal interference. It handles up to 50w of input power and operates reliably across temperatures from -20 °c to 70 °c, making it suitable for both indoor office environments and outdoor installations.
The included rg178 coaxial cable is thin and flexible, ideal for tight spaces or mobile setups, while the sma male connector guarantees direct compatibility with numerous wifi routers, access points, and embedded modules. This swivel rubber duck design combines durability with practical adjustability, giving you the freedom to point the antenna precisely where it is needed. Whether you are improving coverage in a warehouse, a smart home, or a temporary event network, this antenna offers a straightforward and cost-effective upgrade that boosts signal quality and data stability.
Key Features
- 2.4 ghz frequency with 5 dbi gain for expanded wifi coverage.
- Swivel hinge for adjustable positioning and optimized signal direction.
- Low vswr ≤1.92 and vertical polarization for efficient transmission.
- 50w max power and 50 ohm impedance for standard system matching.
- Rg178 flexible cable with sma male connector for easy attachment.
- Wide temperature range from -20 °c to 70 °c for diverse operating conditions.
General Information:
| Product No.: | YC-EX20055 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4 GHz | |
| Gain: | 2dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4 GHz 2dBi Tilt Swivel Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
Factory pricing and exceptional product quality. Get a free quote now!
