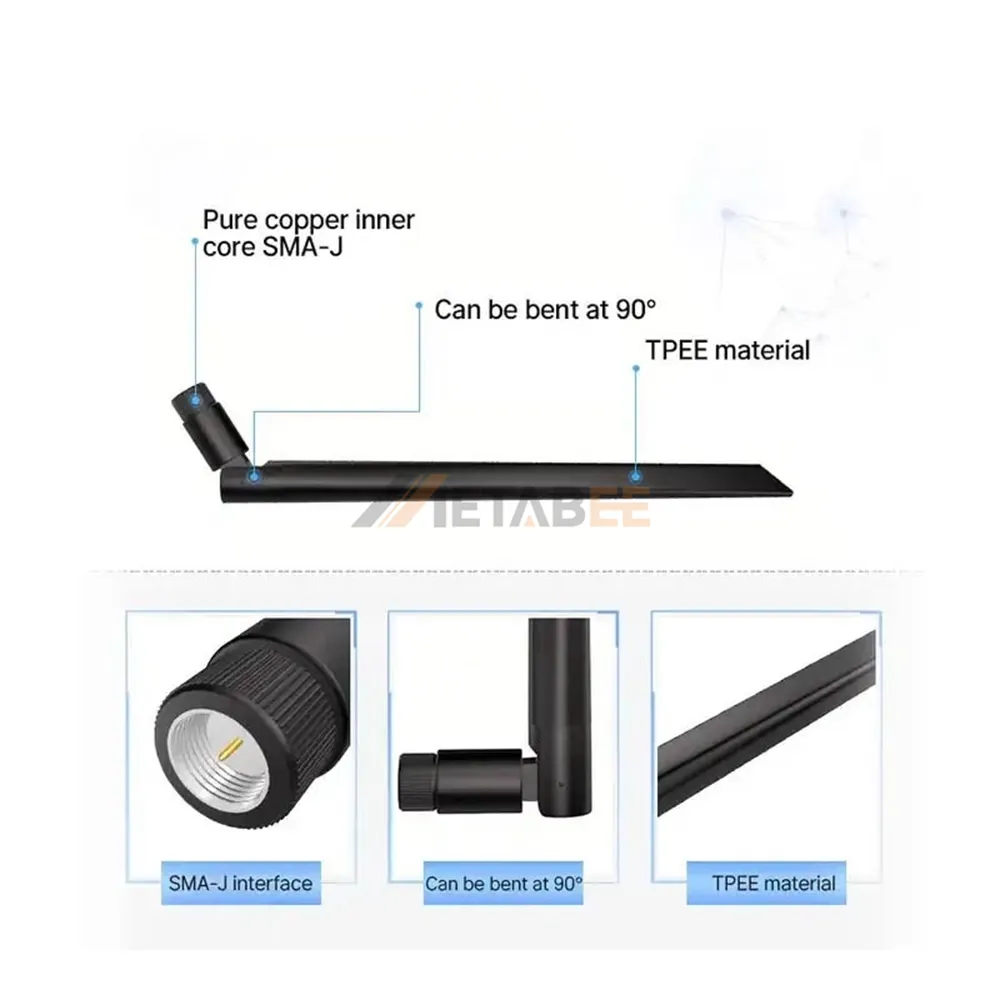

2.4/5.8 GHz Swivel Rubber Duck Antenna for ISM and WLAN, RP-SMA Male
Introduction:
Elevate your wireless network with the 2.4/5.8 GHz 5dBi rubber duck WiFi antenna, equipped with an SMA male connector. This advanced dual-band antenna is engineered to deliver superior signal reception and transmission across both the 2.4 GHz and 5.8 GHz frequency bands, offering enhanced connectivity and extended range for a wide array of wireless devices. Its versatility makes it an indispensable solution for modern networking demands, ensuring robust and reliable performance in diverse operational environments, from home automation to industrial IoT applications.
An impressively low voltage standing wave ratio (VSWR) of ≤1.92 ensures minimal signal loss, thereby maximizing the power transfer from your device and optimizing overall operational effectiveness. With its vertical polarization and standard 50 Ohm impedance, it seamlessly integrates into existing wireless infrastructures. The antenna is constructed for durability, functioning reliably across a broad temperature range from -20 °C to 70 °C, and is capable of handling a maximum input power of 50W. The SMA male connector guarantees a secure and straightforward installation on compatible access points, routers, and other wireless equipment.
This antenna provides a high-performance, robust, and versatile solution for optimizing dual-band wireless communication, delivering consistent and high-quality connectivity across demanding applications.
Key Features
- Dual-Band Operation: Compatible with both 2.4 GHz and 5.8 GHz frequencies for comprehensive network support.
- Efficient Signal Transfer: Achieves an ultra-low VSWR of ≤1.92, minimizing signal loss for optimal performance.
- Robust Environmental Tolerance: Designed to operate reliably in temperatures from -20 °C to 70 °C.
- Universal Connectivity: Equipped with an SMA male connector for broad compatibility with various devices.
- Vertical Polarization: Ensures consistent and effective signal transmission for stable connections.
General Information:
| Product No.: | YC-EX20002 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | RP-SMA Male | |
| Antenna Orientation: | Swivel or Foldable | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | Customized | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz Swivel Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
