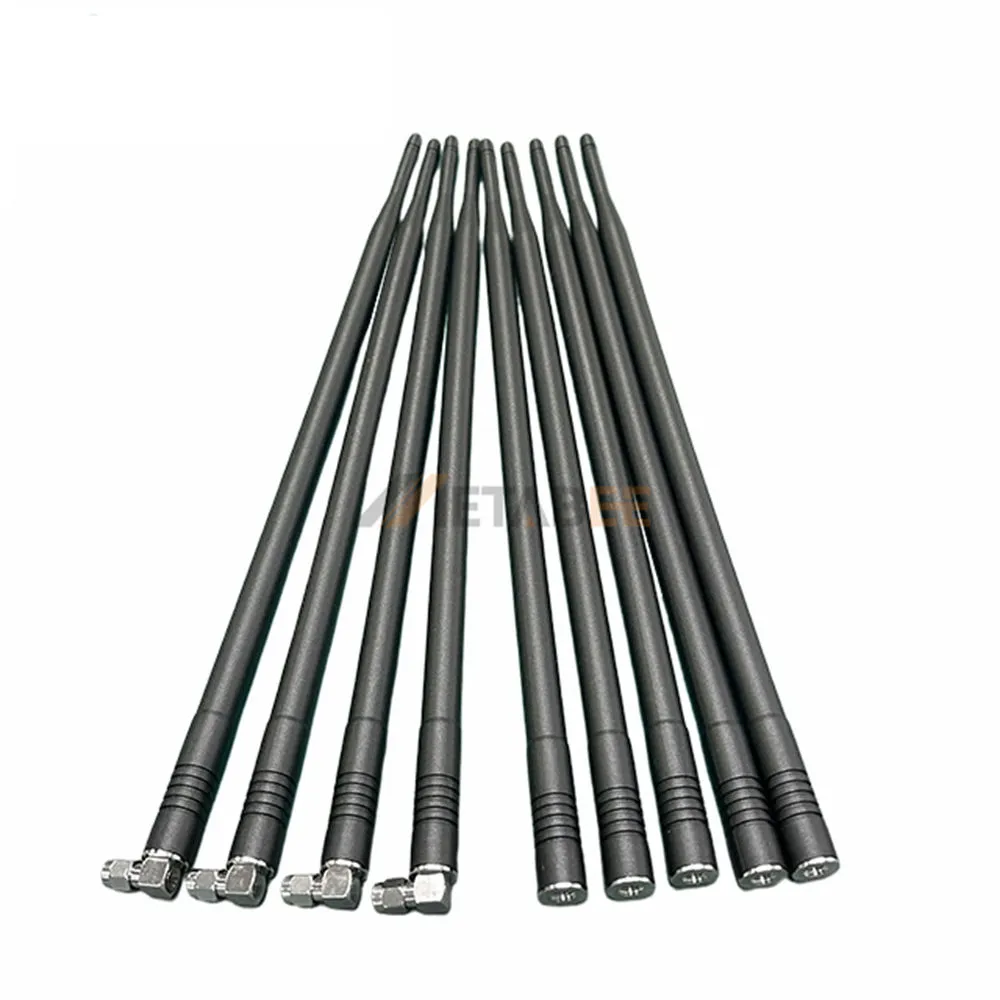

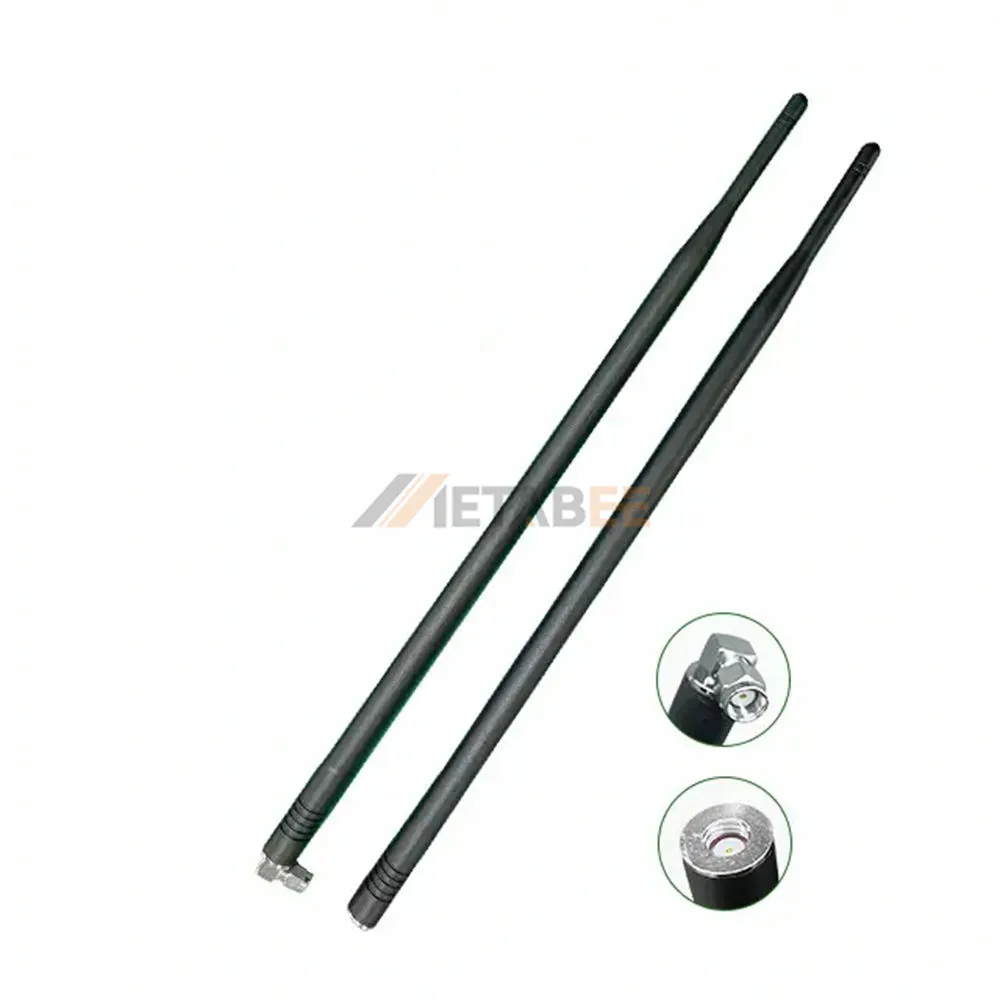

2.4/5.8 GHz 7dBi Dual Band Rubber Duck WiFi Antenna, RP-SMA Male
Introduction:
Upgrade your wireless network coverage with this high-performance dual-band rubber duck antenna. Engineered for seamless operation across both 2.4 GHz and 5.8 GHz frequencies, it delivers an impressive 7dBi high gain to significantly boost signal range and stability. Its omnidirectional radiation pattern ensures balanced, all-around coverage, making it ideal for routers, access points, and IoT wireless devices.
Designed for long-lasting durability, this antenna features a low VSWR of ≤1.92 and 50 ohm impedance to minimize signal loss and maximize transmission efficiency. Built to withstand challenging environments, it operates reliably in temperatures ranging from -20 °C to 70 °C and supports up to 50W maximum power input. The standard RP-SMA male connector allows quick, hassle-free installation on compatible network equipment.
Key Features
- Dual-band support for 2.4 GHz and 5.8 GHz frequencies.
- Powerful 7dBi high gain with vertical polarization.
- Omnidirectional radiation pattern for 360-degree wireless coverage.
- Low VSWR ≤1.92 with standard 50 ohm impedance.

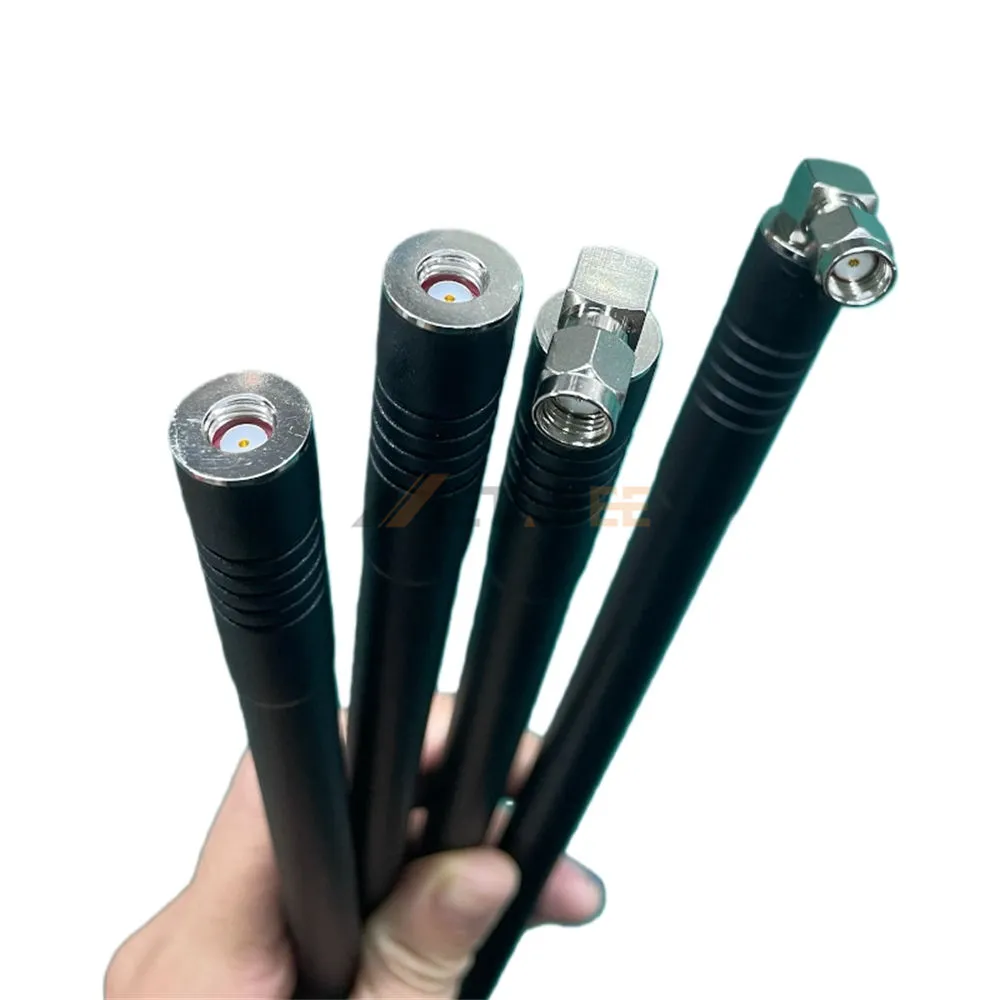

- RP-SMA male connector for easy plug-and-play installation.
- Wide operating temperature range from -20 °C to 70 °C and 50W max power.
General Information:
| Product No.: | YC-EX20066 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | RP-SMA Male | |
| Antenna Orientation: | Straight or Right Angle | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 7dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 7dBi Rubber Duck WiFi Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
