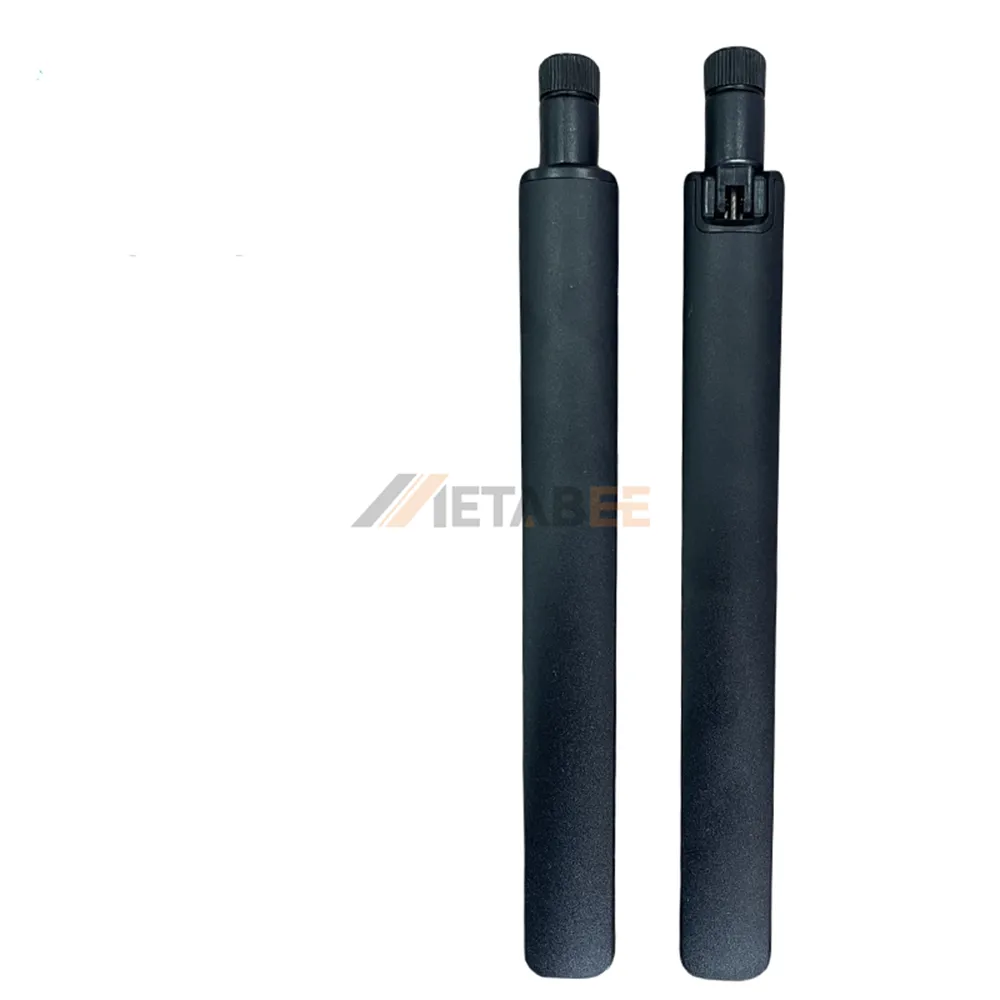

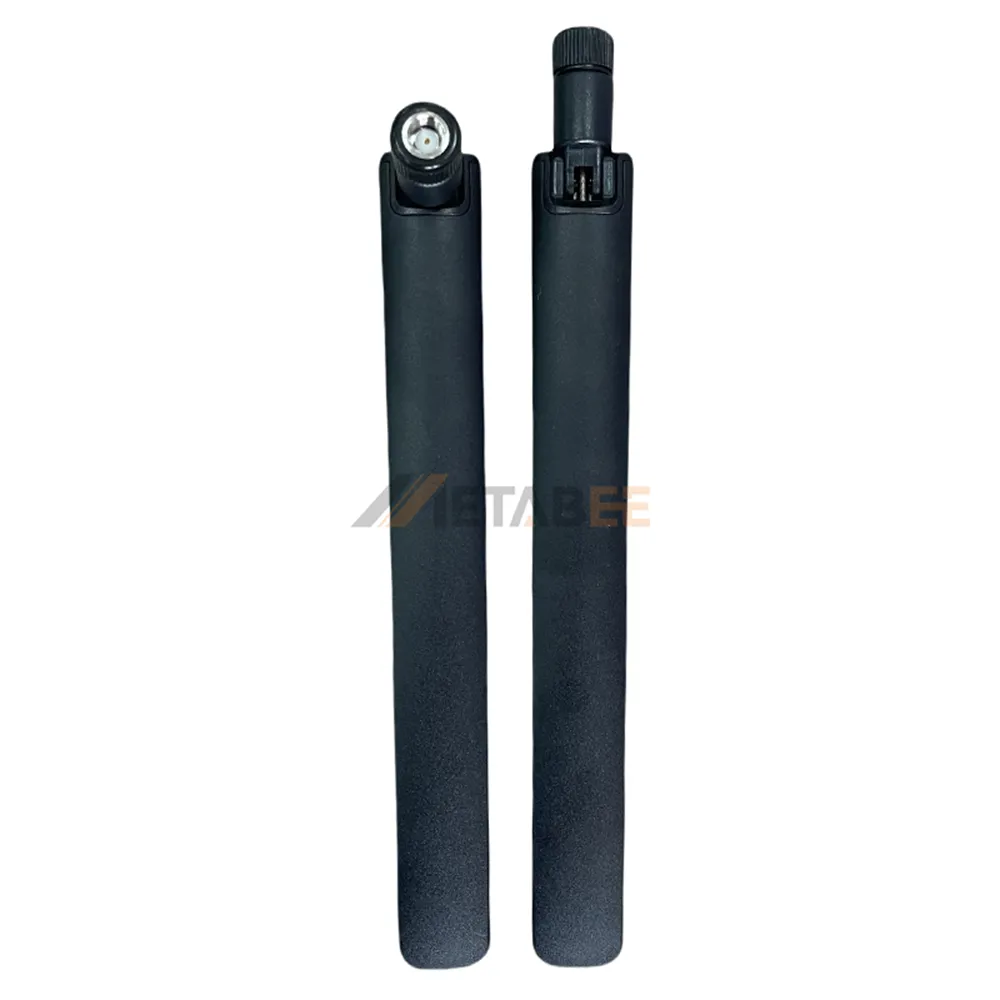

2.4/5.8 GHz 5dBi WiFi Swivel Rubber Duck Antenna with SMA Male
Introduction:
The 2.4/5.8 ghz 5dbi wifi swivel rubber duck antenna is designed to provide reliable wireless signal transmission for routers, wireless gateways, iot devices, and other wifi communication systems. With dual-band operation at 2.4 ghz and 5.8 ghz frequencies, this antenna delivers stable connectivity and improved coverage performance.
Featuring a 5dbi gain, vertical polarization, and omni-directional radiation pattern, this swivel rubber duck antenna ensures consistent signal distribution in multiple directions. The sma male connector allows easy installation and compatibility with various wireless devices. Built with a 50 ohm impedance and supporting up to 50w maximum input power, it provides excellent rf performance for demanding applications.
Key Features
- Dual-band 2.4/5.8 ghz frequency range for versatile wifi applications
- 5dbi high gain for enhanced wireless signal coverage
- Omni-directional radiation pattern for wide-area signal distribution
- Vertical polarization for stable wireless communication performance
- SMA male connector for convenient device integration
- -20°c to 70°c operating temperature for reliable outdoor and indoor use
General Information:
| Product No.: | YC-EX20062 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 5dBi WiFi Swivel Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
