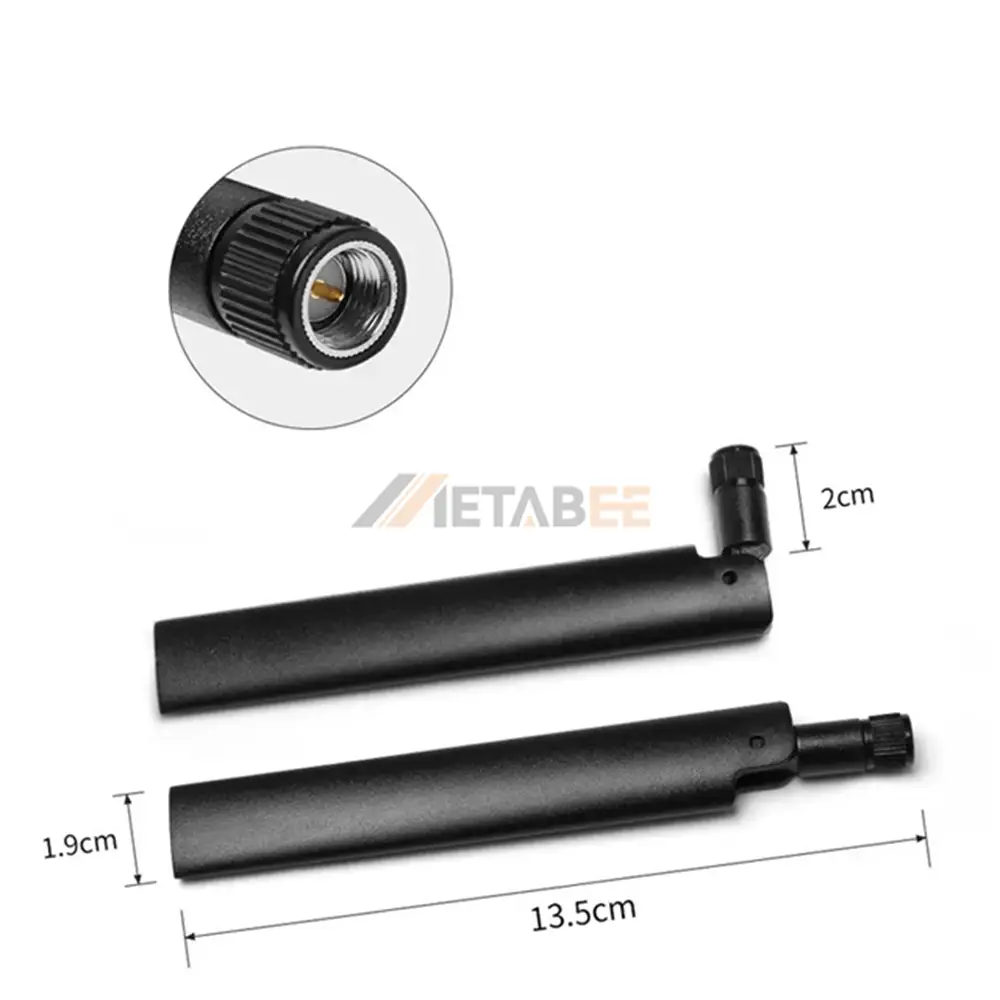

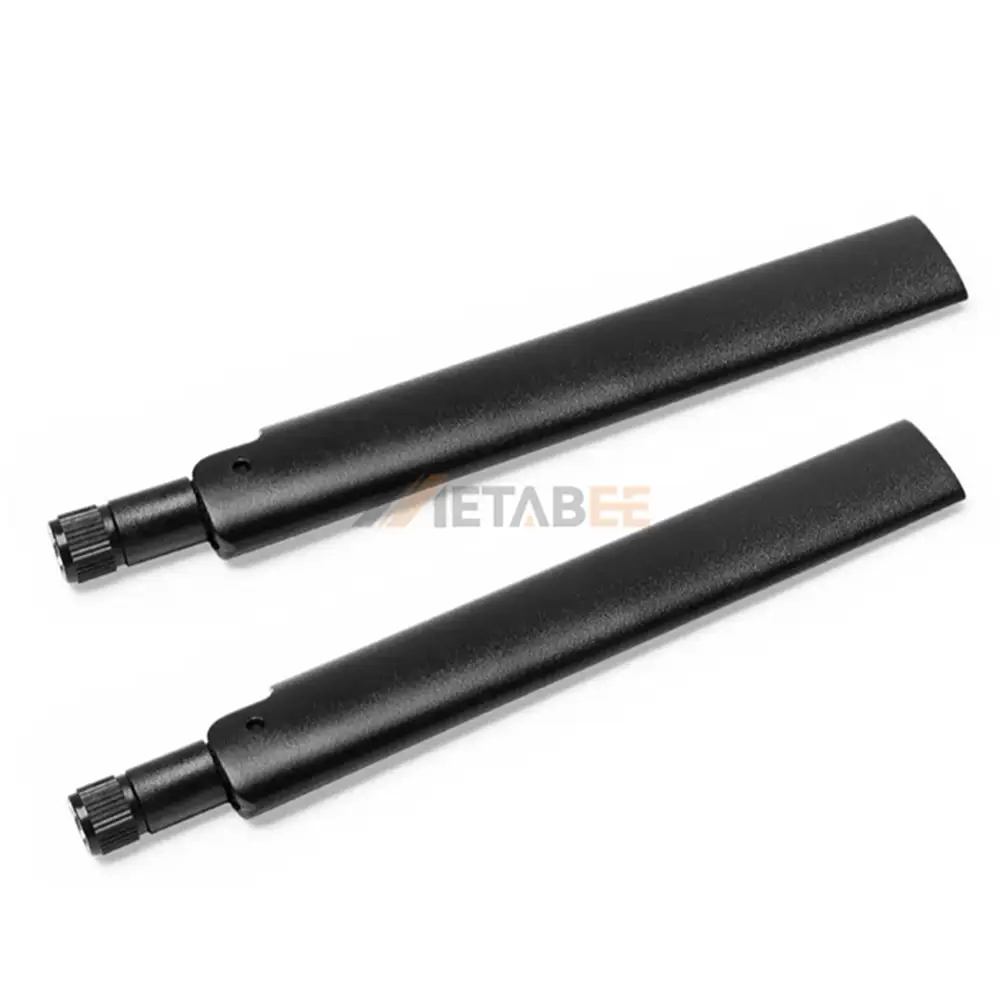

2.4/5.8 GHz 5dBi Tilt Swivel Rubber Antenna for WiFi, SMA Male
Introduction:
The 2.4/5.8 ghz tilt swivel rubber antenna is designed to deliver stable wireless connectivity for wifi routers, access points, wireless modules, and other rf communication devices. Supporting dual-band operation at 2.4 ghz and 5.8 ghz frequencies, this antenna provides reliable signal transmission and enhanced coverage performance.
Featuring a 5dbi gain, vertical polarization, and omni-directional radiation pattern, this tilt swivel rubber antenna ensures consistent signal distribution in various installation environments. The sma male connector enables quick and secure connection with compatible devices. With 50 ohm impedance, ≤1.92 vswr, 50w maximum input power, and a wide operating temperature range of -20°c to 70°c, it offers excellent rf efficiency and long-term reliability.
Key Features
- Dual-band 2.4/5.8 ghz frequency range for wifi applications
- 5dbi gain for improved wireless signal coverage
- Omni-directional radiation pattern for stable signal distribution
- Sma male connector for easy installation and compatibility

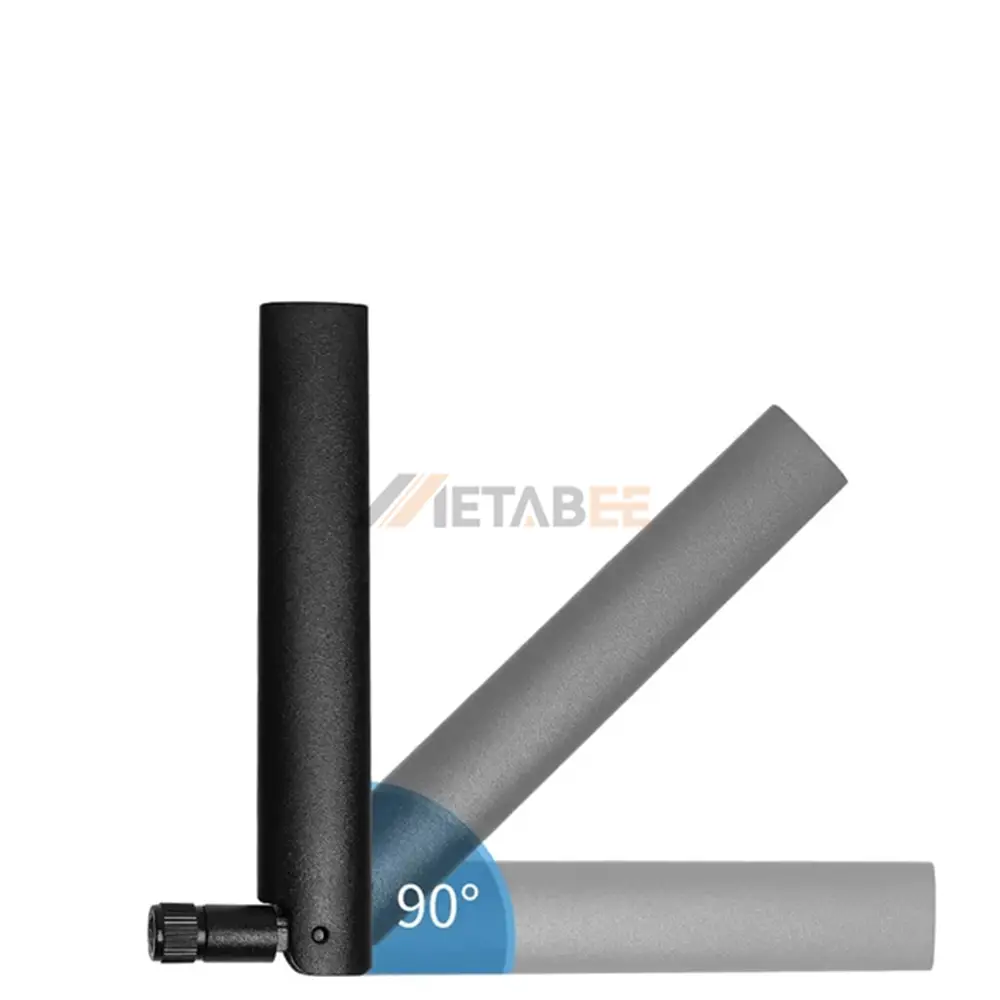

- Tilt swivel design for flexible antenna positioning
- -20°c to 70°c operating temperature for reliable performance.
General Information:
| Product No.: | YC-EX20040 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Swivel or Foldable | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 5dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 5dBi Tilt Swivel Rubber Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
