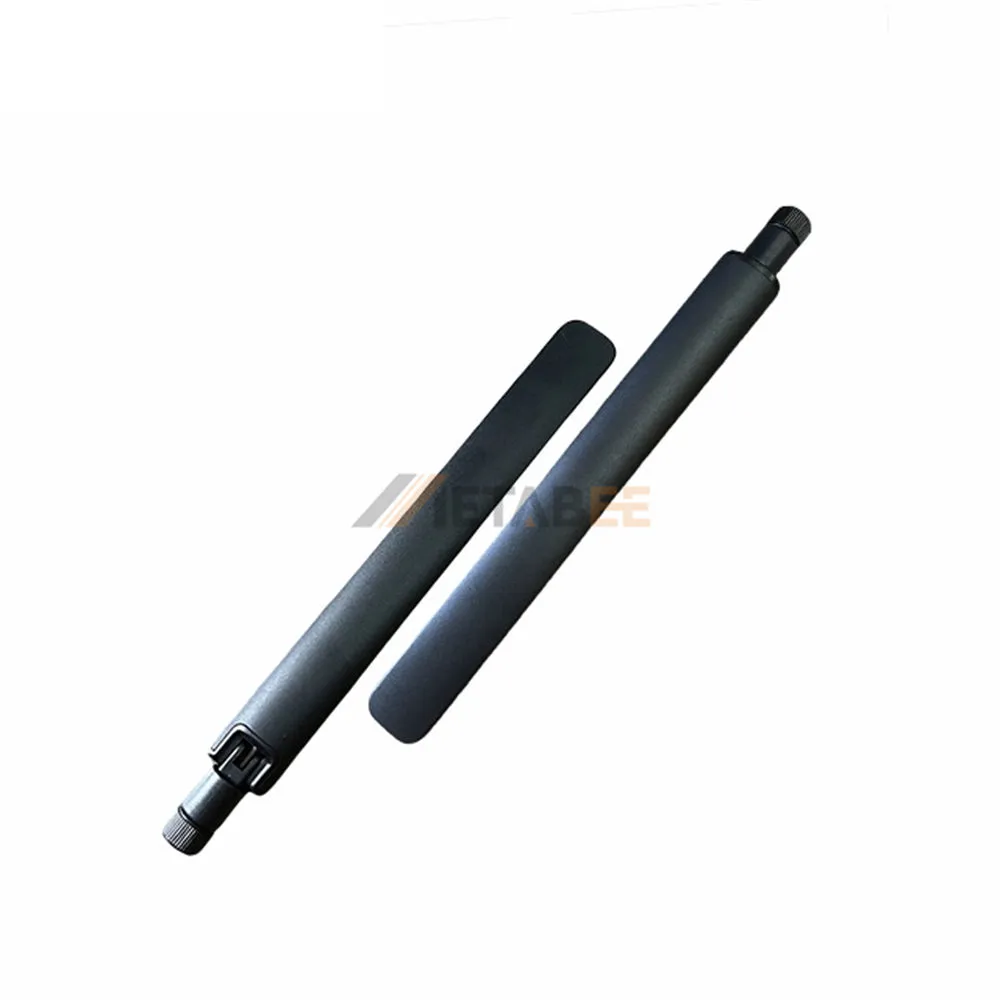

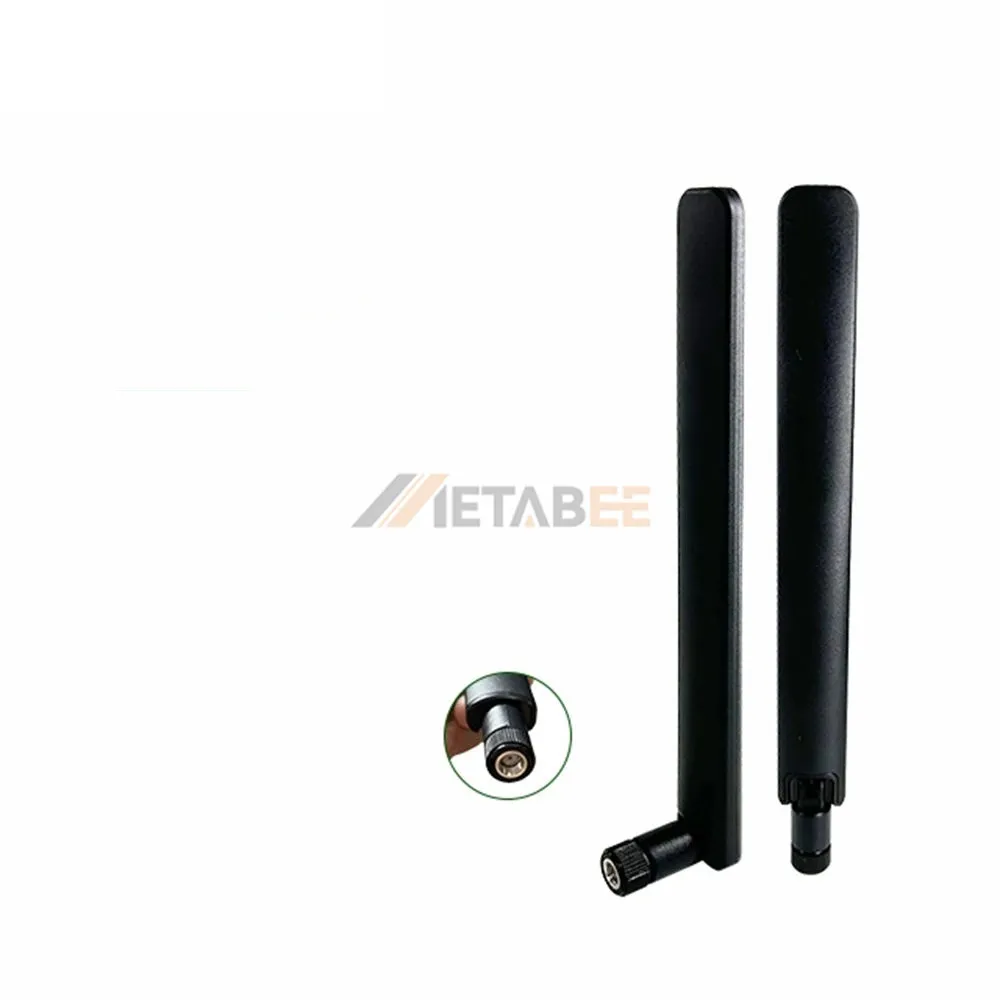

2.4/5.8 GHz 4dBi Dual Band WiFi Swivel Rubber Duck Antenna, SMA Male
Introduction:
Maximize your wireless network performance with the 2.4/5.8 GHz 4dBi dual band WiFi swivel rubber duck antenna. Designed for high-speed transmission, this omnidirectional antenna boosts connectivity across dual-band routers, access points, and IoT equipment. Its flexible swivel mechanism allows optimal positioning to reduce signal interference and maintain strong data throughput.
Built with a durable protective shell, this antenna withstands demanding operational conditions while protecting internal components. Featuring a standard SMA male connector with 50 ohm impedance, it offers easy plug-and-play installation for instant network optimization. This versatile component provides a reliable solution for eliminating dead zones in residential and commercial deployments.
Key Features
- Dual band support: Operates across 2.4 GHz and 5.8 GHz frequency ranges.
- 4dBi high gain: Enhances omnidirectional coverage and signal transmission strength.
- Low VSWR: Keeps VSWR under ≤1.92 to prevent unwanted signal loss.
- Vertical polarization: Maximizes wave propagation efficiency for stable connections.
- SMA male interface: Integrates seamlessly with standard 50 ohm wireless devices.
- Wide temperature range: Performs reliably between -20 °C and 70 °C.
General Information:
| Product No.: | YC-EX20065 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Foldable or Swivel | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 4dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 4dBi Dual Band WiFi Swivel Rubber Duck Antenna
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
Factory pricing and exceptional product quality. Get a free quote now!
