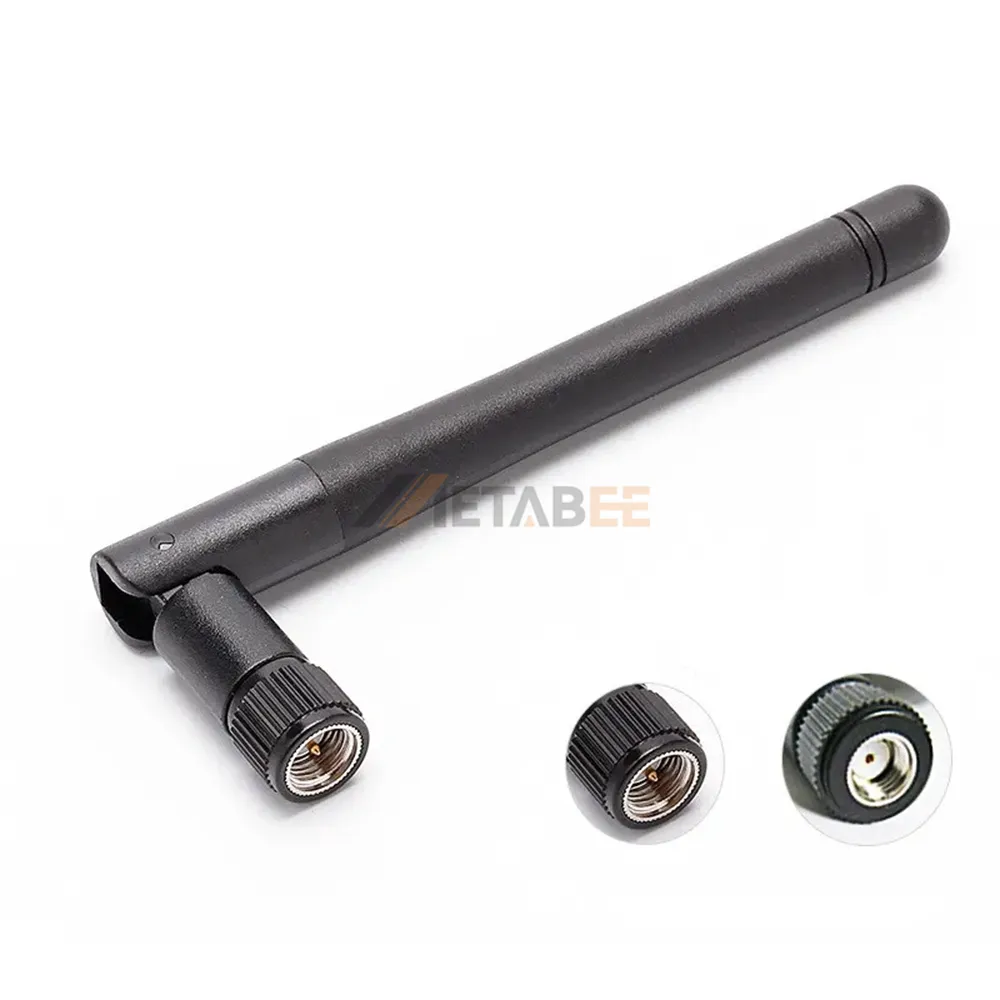

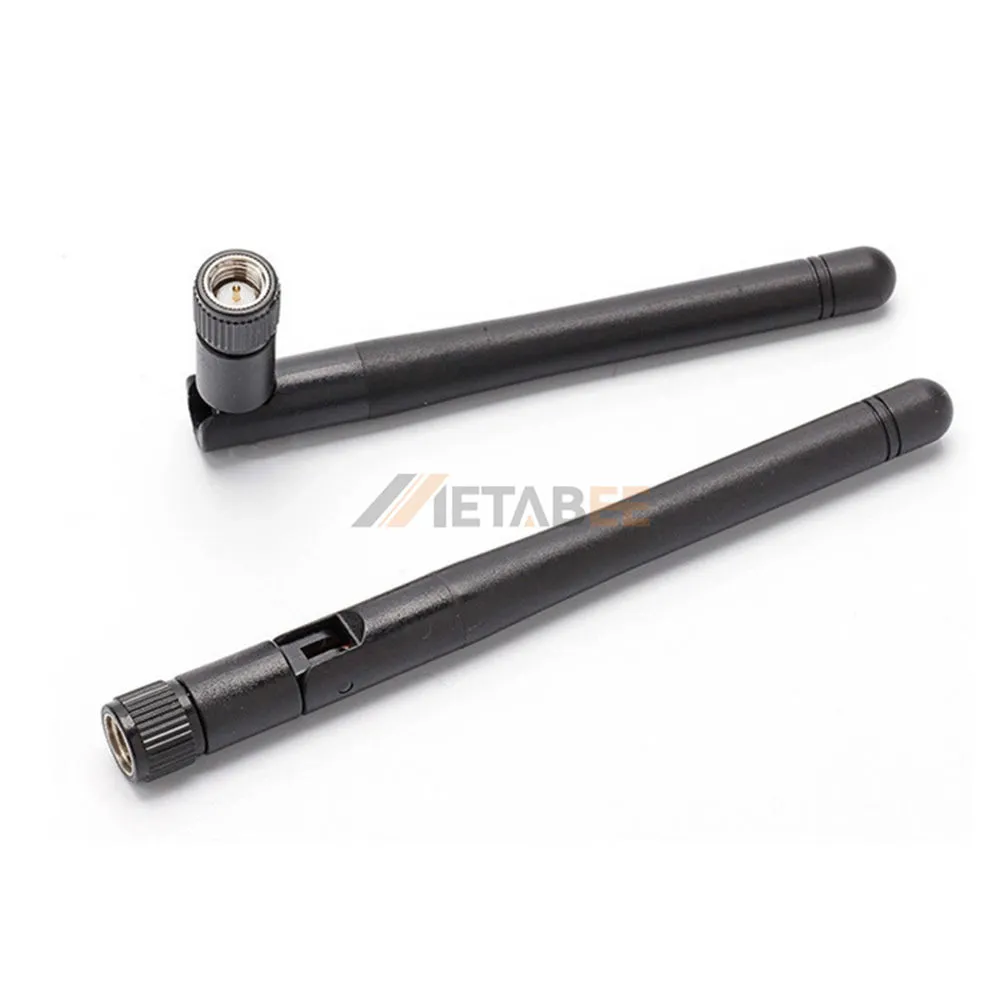

2.4/5.8 GHz 3dBi WiFi Rubber Duck Antenna, SMA/RP-SMA Male
Introduction:
The 2.4/5.8 ghz 3dbi wifi rubber duck antenna is designed for stable wireless communication in wifi routers, access points, wireless modules, and other rf applications. Supporting dual-band operation at 2.4 ghz and 5.8 ghz frequencies, this antenna provides reliable signal transmission and flexible connectivity for various wireless devices.
With a 3dbi gain, vertical polarization, and omni-directional radiation pattern, this rubber duck antenna delivers consistent signal coverage in multiple directions. The sma/rp-sma male connector ensures easy installation and compatibility with a wide range of wireless equipment. Featuring 50 ohm impedance, ≤1.92 vswr, and 50w maximum input power, it offers efficient rf performance and reliable operation in temperatures from -20°c to 70°c.
Key Features
- Dual-band 2.4/5.8 ghz frequency range for versatile wifi applications
- 3dbi gain for enhanced wireless signal performance
- Omni-directional radiation pattern for broad signal coverage
- Sma/rp-sma male connector for convenient device connection
- Vertical polarization for stable rf signal transmission
- -20°c to 70°c operating temperature for reliable performance in different environments
General Information:
| Product No.: | YC-EX20007 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA/RP-SMA Male | |
| Antenna Orientation: | Straight | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 3dBi WiFi Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
