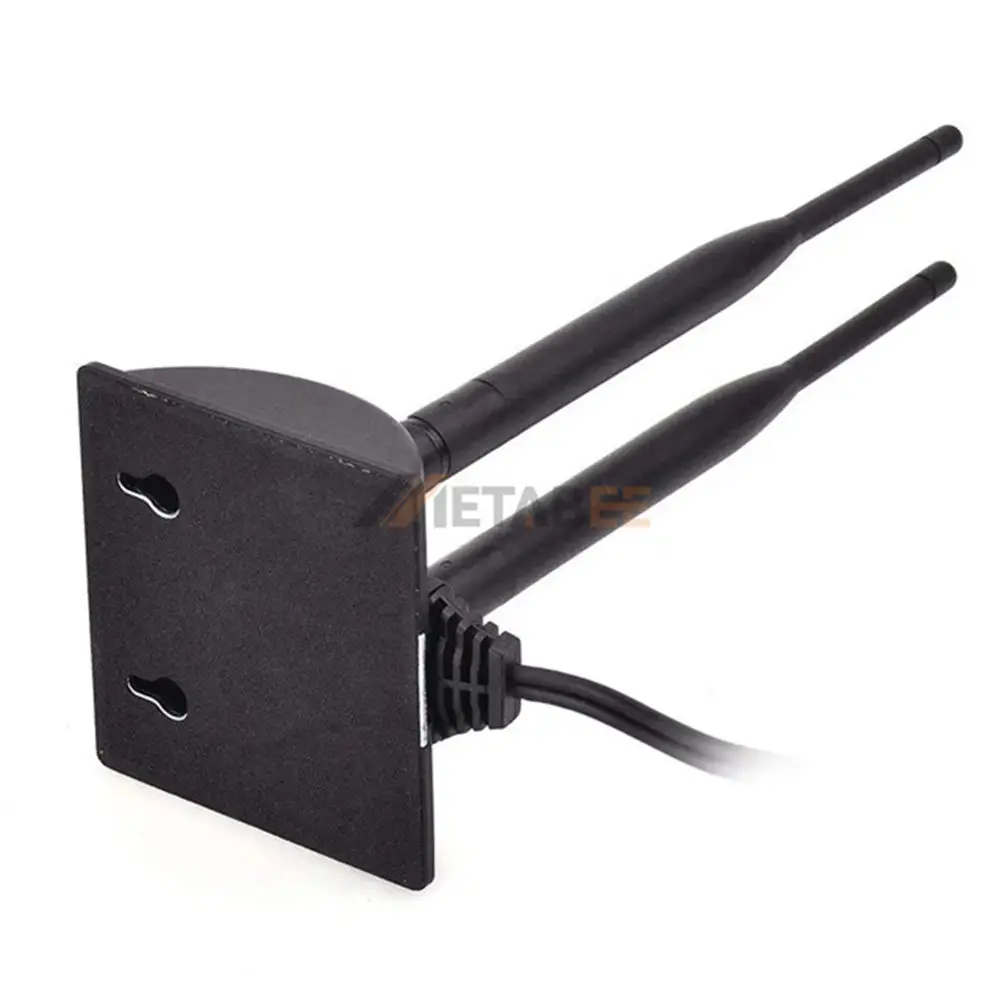

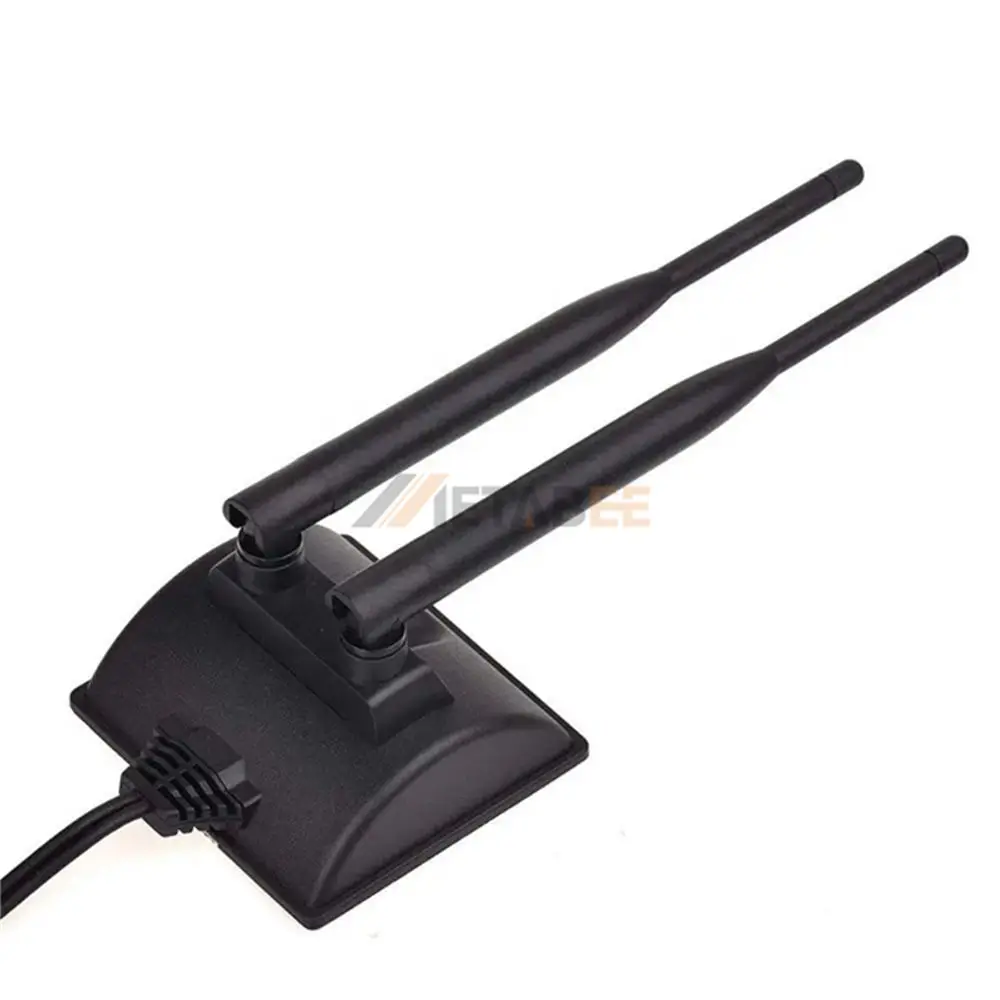

2.4/5.8 GHz 3dBi Tilt Swivel Rubber Duck Antenna for Router, SMA Male
Introduction:
Elevate your router’s performance with the 2.4/5.8 GHz 3dBi tilt swivel rubber duck antenna, featuring an SMA male connector. This advanced dual-band antenna is specifically designed to enhance wireless connectivity and extend range across both the 2.4 GHz and 5.8 GHz frequency bands. Its tilt and swivel functionality provides critical flexibility for optimizing signal direction, ensuring superior reception and transmission for your wireless devices in various deployment scenarios. This antenna is an essential upgrade for any router requiring stable and expanded wireless coverage.
Engineered for optimal efficiency, this antenna delivers a consistent 3dBi gain across both operating frequencies, effectively boosting signal strength for improved coverage and network stability. An impressively low voltage standing wave ratio (VSWR) of ≤1.92 ensures minimal signal reflection and maximum power transfer from your router, optimizing overall operational effectiveness. With vertical polarization and a standard 50 Ohm impedance, it integrates seamlessly into existing wireless infrastructures. Constructed for durability, the antenna performs reliably across a wide temperature range from -20 °C to 70 °C and is capable of handling a maximum input power of 50W. The SMA male connector guarantees a secure and straightforward installation on compatible routers and wireless equipment.
This antenna offers a high-performance, durable, and adaptable solution for optimizing dual-band wireless communication, providing consistent and high-quality connectivity to maximize your router’s potential.
Key Features
- Dual-Band Operation: Supports both 2.4 GHz and 5.8 GHz frequencies for versatile network compatibility.
- Flexible Tilt-Swivel Design: Allows for precise adjustment to optimize signal direction and reception.
- Reliable 3dBi Gain: Provides a dependable boost to wireless signals, improving range and stability.
- Efficient Signal Transfer: Achieves an ultra-low VSWR of ≤1.92, minimizing signal loss for optimal performance.
- Robust Environmental Tolerance: Designed to operate reliably in temperatures from -20 °C to 70 °C.
- Universal Router Connectivity: Equipped with an SMA male connector for broad compatibility with various routers.
General Information:
| Product No.: | YC-EX20030 | |
| Connector Series: | Rubber Duck Antennas | |
| Brand: | Metabee | |
| Connector Type: | SMA Male | |
| Antenna Orientation: | Swivel or Foldable | |
| Dimensions: | Customized | |
| Color: | Black | |
| Operating Temperature: | -20℃ to +70℃ | |
| Other Feature: | None |
Electrical Performance:
| Frequency Range: | 2.4/5.8 GHz | |
| Gain: | 3dBi | |
| VSWR: | ≤1.92 | |
| Impedance: | 50 Ohms | |
| Radiation Pattern: | Omnidirectional | |
| Polarization: | Vertical | |
| Max Power: | 50W |
Rubber Duck Antenna Test
Factory Equipments
Applications of this 2.4/5.8 GHz 3dBi Tilt Swivel Rubber Duck Antenna:
Rubber Duck Antennas are compact, flexible, and typically omnidirectional antennas widely used in wireless communication devices where space, portability, and reliable signal coverage are important.
Here are some key applications:
- Two-Way Radios and Walkie-Talkies
- WiFi Routers and Wireless Access Points
- IoT (Internet of Things) Devices
- Cellular Communication Equipment
- GPS and GNSS Tracking Devices
- Wireless Security Systems
- Industrial Automation and Control Systems
- Drone and Remote Control Systems
- Smart Home Devices
- Marine and Outdoor Communication Equipment
