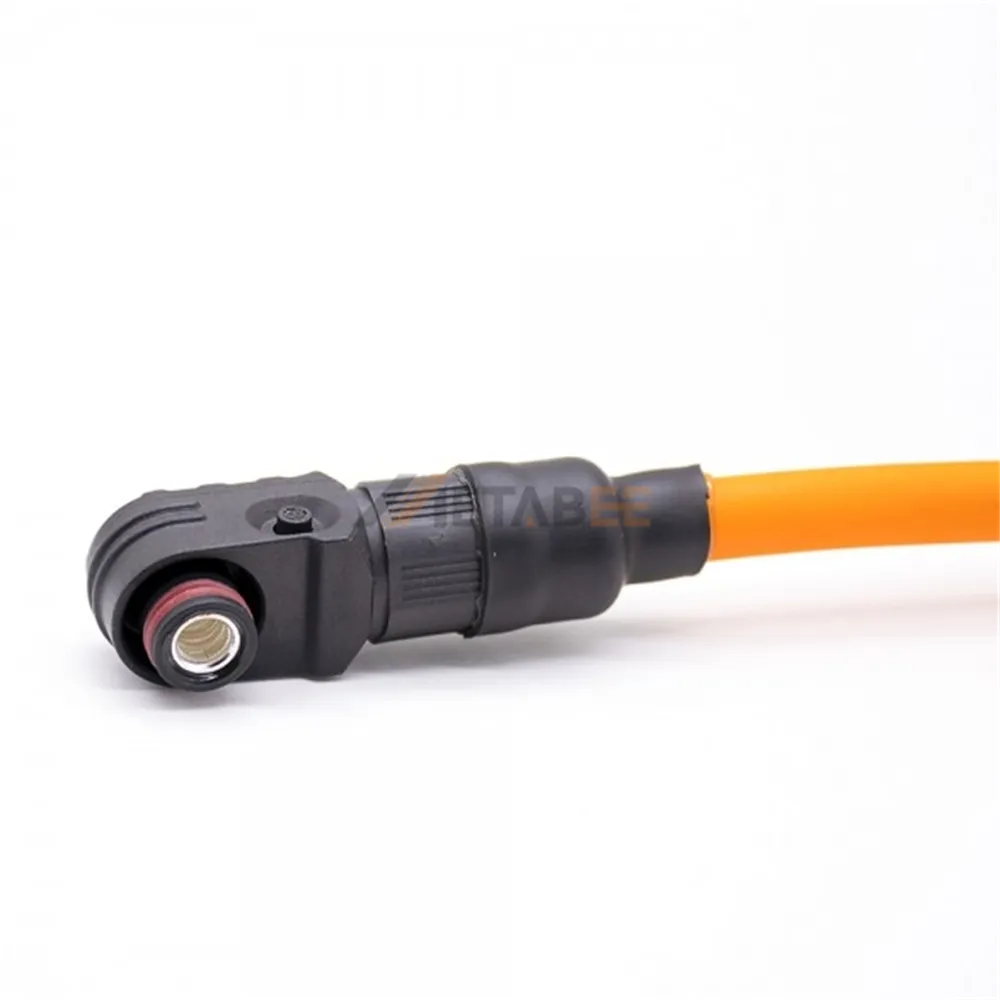

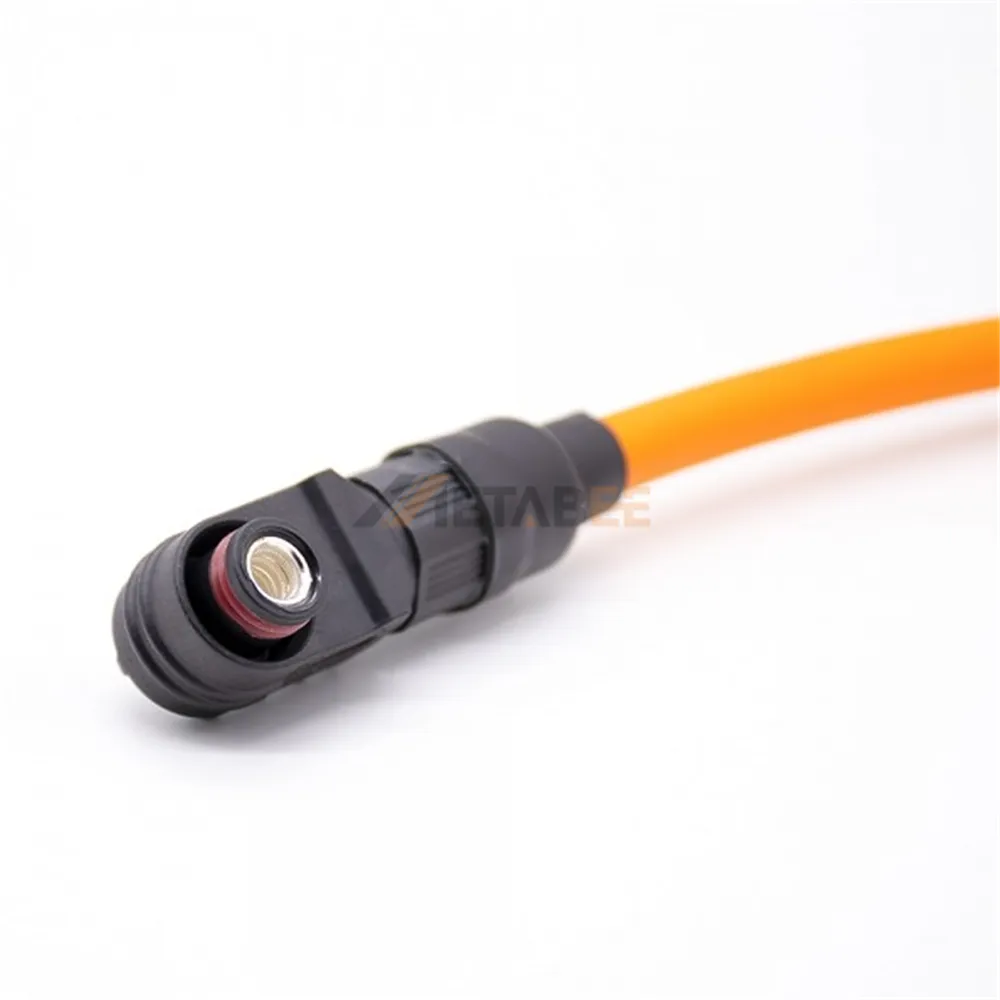

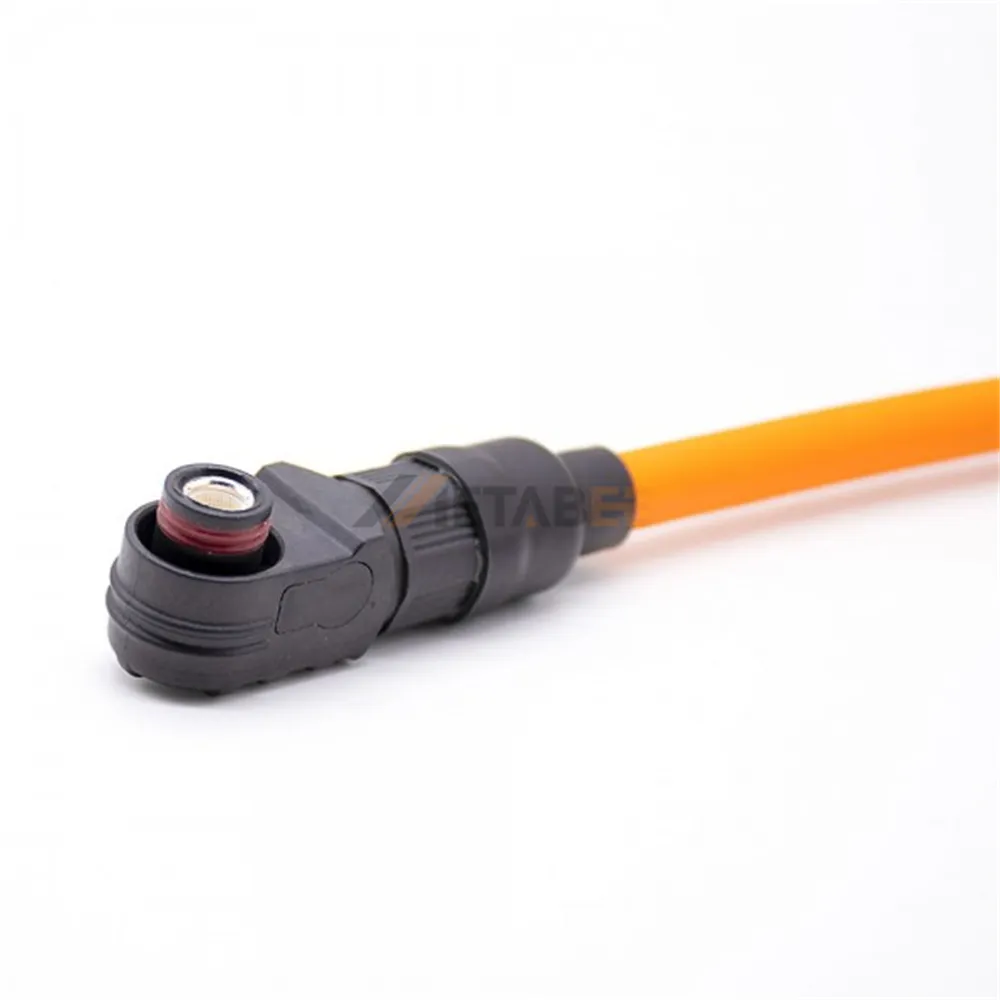

6mm Battery Storage Single-Ended Cable, 1 Pin Plug, 25m㎡, 120A
Introduction
The Battery Storage single-ended cable is engineered for high-efficiency energy storage systems requiring reliable, high-current transmission. Designed with a 25mm² conductor and a rated current of 120A, it ensures stable power flow while maintaining low electrical resistance under heavy load. Its 6mm terminal diameter and right-angle plug interface deliver secure connectivity in compact or restricted installation spaces, enhancing system integration flexibility.
This single-ended cable features a durable plastic connector housing and brass contacts with silver-plated coating, providing superior conductivity, corrosion resistance, and long-term performance. With a 1500V voltage rating, it meets the demands of modern battery storage and DC power distribution applications. The 30cm cable length supports streamlined routing, while the robust construction ensures stable operation under harsh environmental conditions.
Engineered for safety and durability, the cable achieves IP67 ingress protection, UL94V-0 flame-retardant rating, and a -40°C to +125°C operating temperature range, making it suitable for outdoor energy storage cabinets, ESS batteries, solar systems, and industrial DC power modules. Its rugged design guarantees dependable operation in demanding high-temperature, high-humidity, or vibration-prone environments.
Key Features:
- 25mm² conductor with 120A current rating for high-efficiency power transmission.
- Right-angle 1-pin plug optimized for compact installation and secure locking.
- Silver-plated brass contacts ensure low resistance and long-term conductivity.
- IP67 protection for enhanced safety and durability.
- Wide operating temperature range: -40°C to +125°C, ideal for harsh environments.
- 1500V rated voltage suitable for ESS, battery packs, and high-power DC systems.
Main Specifications:
General Information:
| Part No.: | YC-1P-6B-C25-R30 | |
| Product Series: | Energy Storage Cables | |
| Cable Type: | Single-Ended Cable | |
| Brand: | Metabee | |
| Gender: | Plug | |
| Orientation: | Right Angle | |
| Number of Positions: | 1 Pin | |
| Shell Material: | Plastic | |
| Contact Material: | Brass | |
| Contact Plating: | Silver Plated | |
| Terminal Diameter: | 6mm | |
| Wire Gauge: | 25mm² | |
| Cable length: | 30cm | |
| Rated Voltage: | 1500 V | |
| Rated Current: | 120A | |
| IP Rating: | IP67 | |
| Operating Temperature: | -40°C to +125°C | |
| Other Feature: | None |
Applications of this 6mm Battery Storage Single-Ended Cable:

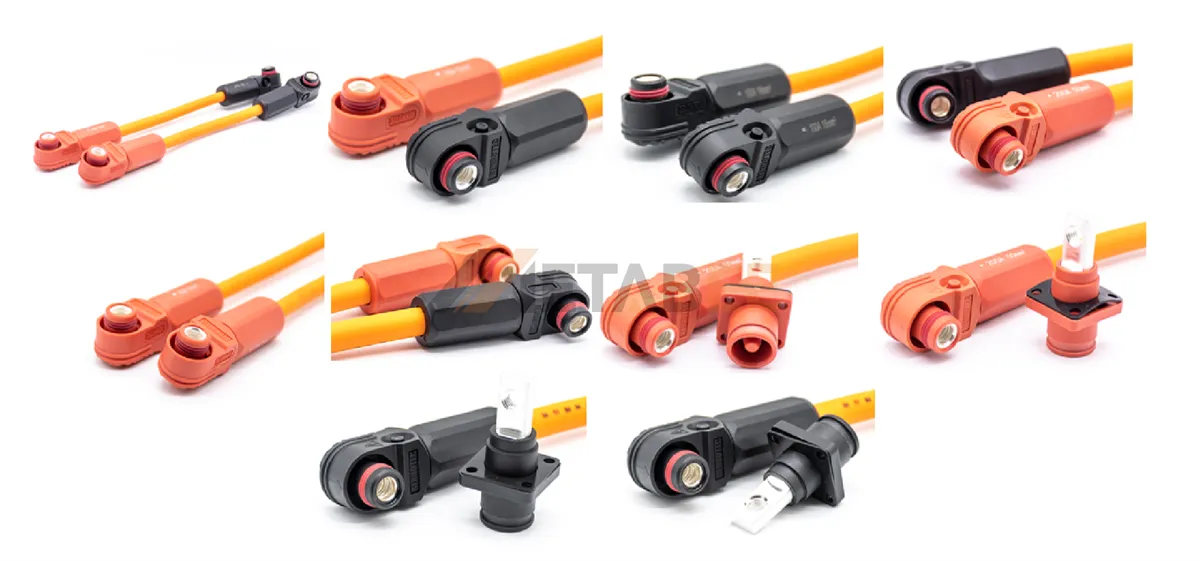

Energy storage cables are specialized cables designed to handle the high current and voltage requirements in systems that store and manage electrical energy. They are crucial for connecting storage devices like batteries to the power grid or other electrical systems.
Here are some main applications:
- Grid-Scale Battery Energy Storage Systems (BESS);
- Transportation and Mobile Power;
- Residential Solar-Plus-Storage Systems;
- Electric Vehicle (EV) Charging Stations;
- Electric Vehicles (Internal Wiring);
- Industrial Vehicles and Machinery.
